REXROTH电磁阀线圈插头Connector IP67系列技术参数
Ambient temperature | |
- Standard °C | - 20 to + 100 |
-With indicator lamp/rectifier °C | -20 to + 60 |
Type of protection according to DIN 40050 | IP67 with cable socket mounted and locked |
Operating voltage V | Choose the proper ordering code according to the circuit |
Maximum operating current | |
- Standard A | 16 |
- With rectifier A | 1 or 3 |
Current consumption of LED mA | approx. 10 |
LED | Red |
Number of pins | 2 + PE |
Clamping range for cables having an outer diameter of mm | 5, up to 10 |
Maximum cable cross-section mm2 | 1.5 |

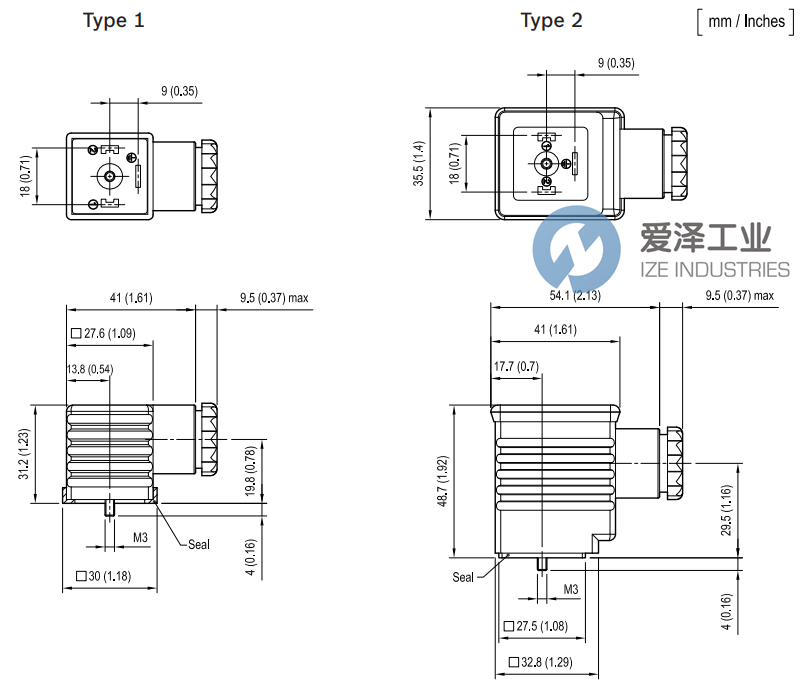

REXROTH电磁阀线圈插头Connector IP67系列技术尺寸
REXROTH电磁阀线圈插头Connector IP67系列其他常用型号：
REXROTH OD016901000000 R934004344
REXROTH OD016901000003 R934004346
REXROTH OD01690700OB00 R934004361
REXROTH OD01690700OC00 R934004362
REXROTH OD01690700OE00 R934004363
REXROTH OD01690700OF00 R934004364
REXROTH COILS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REXROTH电磁阀线圈插头OD016901000000 R934004344的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REXROTH电磁阀线圈插头OD016901000000 R934004344技术参数
