PNEUMAX电磁阀8884.52.00.35.F05技术参数
Operational characteristics | |
Fluid | Filtered and lubricated air |
Max working pressure (bar) | 8 |
Temperature °C | -5 ÷ +50 |
Flow rate at 6 bar with ∆p=1 (Nl/min) | 890 |
Orifice size (mm) | 6,5 |
Working port size | G 1/4" |
VOLTAGE | 24 V DC |
Minimium working pressure | 2 bar |
Weight gr. | 320 |
PNEUMAX电磁阀888系列介绍
良好的性能和多功能性以及紧凑的设计是这个新系列阀门的主要特点。 铝制阀体和阀芯/密封布置优化了流量和阀门切换时间。
这个新系列的阀门可提供 3/2、5/2 和 5/3 版本的 G1/8” 和 G1/4” 端口。 提供单稳态或双稳态版本,包括一个带 9mm 杆和内置手动操作装置的集成高科技聚合体电磁操作器
阀门可以带或不带电磁线圈
Competitively priced, good performance and versatility combined with a compact design are the main characteristics of this new series of valves. The aluminium valve body and spool/seal arrangement optimize both the flow rate and the valve switching time.
This new series of valves are available with G1/8” and G1/4” ports in 3/2, 5/2 and 5/3 versions. Monostable or bistable versions are available and include an integrated technopolymer solenoid operator with 9mm stem and built in manual override
The valves can be supplied with or without the solenoid coil

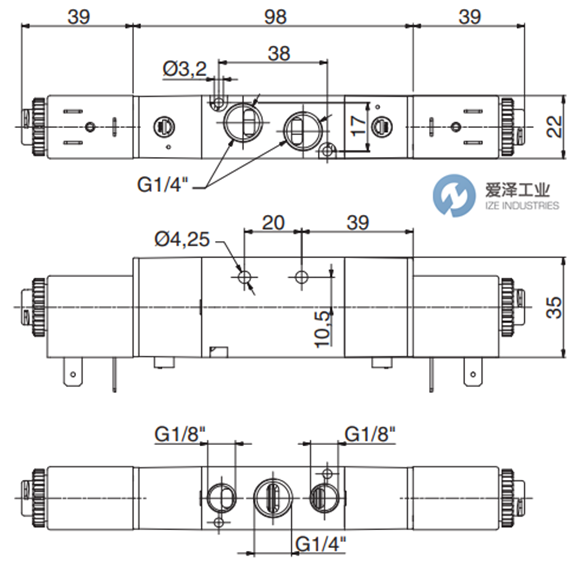

PNEUMAX电磁阀8884.52.00.35系列技术尺寸
PNEUMAX电磁阀888系列其他常用型号:
PNEUMAX 8884.52.00.35.F05
PNEUMAX 8884.52.00.35.F56
PNEUMAX 8884.52.00.35.F57
PNEUMAX 8884.52.00.35.F58
PNEUMAX 8884.52.00.35.F00
PNEUMAX 8884.32.00.35.F05
PNEUMAX 8884.32.00.35.F56
PNEUMAX 8884.32.00.35.F57
PNEUMAX 8884.32.00.35.F58
PNEUMAX 8884.32.00.35.F00
PNEUMAX Solenoid Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于PNEUMAX电磁阀8884.52.00.35.F05的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for PNEUMAX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
PNEUMAX电磁阀888系列8884.52.00.35.F05技术参数及尺寸
