ADVANCED MOTION CONTROLS伺服驱动器A12A100技术参数
Power Specifications | |
DC Supply Voltage Range VDC | 20 - 80 |
DC Bus Over Voltage Limit VDC | 88 |
DC Bus Under Voltage Limit VDC | 15 |
Maximum Peak Output Current A | 12 |
Maximum Continuous Output Current A 6 | |
Maximum Continuous Output Power at Continuous Current W | 456 |
Maximum Power Dissipation at Continuous Current W | 24 |
Minimum Load Inductance (Line-To-Line) µH | 200 |
Internal Bus Capacitance mF | 141 |
Low Voltage Supply Outputs | ±5 VDC (3 mA) |
Switching Frequency kHz | 38 |
Control Specifications | |
Command Sources | ±10 V Analog |
Feedback Supported | Tachometer (±48 VDC) |
Commutation Methods | Brush Type |
Modes of Operation | Current, Voltage, IR Compensation, Tachometer Velocity |
Motors Supported | Single Phase (Brushed, Voice Coil, Inductive Load) |
Hardware Protection | Over-Current, Over-Temperature, Over-Voltage, Under-Voltage, Short-Circuit (Phase-Phase & Phase-Ground) |
Primary I/O Logic Level | 5V TTL |
Mechanical Specifications | |
Agency Approvals | CE Class A (EMC), CE Class A (LVD), cUL, RoHS II, UL |
Size (H x W x D) mm (in) | 129.3 x 75.8 x 25.1 (5.09 x 2.98 x 0.99) |
Weight g (oz) | 249.5 (8.8) |
Heatsink (Base) Temperature Range °C (°F) | 0 - 65 (32 - 149) |
Storage Temperature Range °C (°F) | -40 - 85 (-40 - 185) |
Form Factor | Panel Mount |
P1 Connector | 16-pin, 2.54 mm spaced, friction lock header |
P2 Connector | 5-port, 5.08 mm spaced, quick disconnect terminal |
ADVANCED MOTION CONTROLS伺服驱动器A12A100产品介绍
A12A100 PWM 伺服驱动器设计用于以高开关频率驱动有刷直流电机。单个红色/绿色 LED 指示运行状态。该驱动器具有全面的过压、欠压、过流、过热和电机、接地和电源线短路保护。此外，该驱动器可以与数字控制器接口或独立使用，并且只需要一个未稳压的直流电源。可以使用 14 圈电位器调节环路增益、电流限制、输入增益和偏移。偏置调节电位器也可作为板载输入信号用于测试目的。
• 四象限再生运行
• DIP 开关可选模式
• DIP 开关可配置环路调谐
• 可选择的抑制逻辑
• 可调电流限制
• 高开关频率
• 差分输入命令
• 数字故障输出监视器
• 板载测试电位器
• 偏置调节电位器
• 可调输入增益
• 驱动器状态 LED
• 电流监控器输出
• 限位开关的方向抑制输入
The A12A100 PWM servo drive is designed to drive brush type DC motors at a high switching frequency. A single red/green LED indicates operating status. The drive is fully protected against over-voltage, undervoltage, over-current, over-heating and short-circuits across motor, ground and power leads. Furthermore, the drive can interface with digital controllers or be used stand-alone, and requires only a single unregulated DC power supply. Loop gain, current limit, input gain and offset can be adjusted using 14-turn potentiometers. The offset adjusting potentiometer can also be used as an on-board input signal for testing purposes.
• Four Quadrant Regenerative Operation
• DIP Switch Selectable Modes
• DIP Switch Configurable Loop Tuning
• Selectable Inhibit Logic
• Adjustable Current Limits
• High Switching Frequency
• Differential Input Command
• Digital Fault Output Monitor
• On-Board Test Potentiometer
• Offset Adjustment Potentiometer
• Adjustable Input Gain
• Drive Status LED
• Current Monitor Output
• Directional Inhibit Inputs for Limit Switches

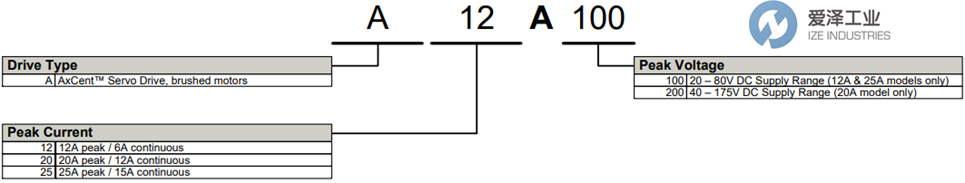

ADVANCED MOTION CONTROLS伺服驱动器AxCent系列选型
ADVANCED MOTION CONTROLS伺服驱动器AxCent系列其他常用型号：
ADVANCED MOTION CONTROLS A12A100
ADVANCED MOTION CONTROLS A25A100
ADVANCED MOTION CONTROLS A20A200
ADVANCED MOTION CONTROLS A25A200
