CASHCO调节器BBJ-AS27-77C00000A技术参数
Code | BBJ-AS27-77C00000A |
B | |
GASKETS & SERVICE | B = Standard : Graphite / NBR/ - Non-Oxygen |
SIZE & SERVICE | J = Liquid DN (15),In 1/2 |
BODY & SPRG CHAMBER MATERIALS | A = Body/Sp. Ch SST/SST |
TRIM DESIGNATION NUMBERS | S2 = Stainless Steel Trim Desig. S2 |
7 | |
END CONNECTIONS | 7 = -30 Opt.- 300 LB RF Flgs.(Std) |
RANGE SPRINGS | 7 = 80-150 psig |
TRIM VARIATIONS | C = -14, Integral Seat Surface (Not available with B1 Trim or NACE) |
FEATURE OPTIONS | 0 = No Option |
SPRING CHAMBER OPTIONS | 0 = No Option |
BODY OPTIONS | 0 = No Option |
CERTIFICATE OPTIONS | 0 = No Option |
0A |
CASHCO调节器1000 HP Basic系列介绍
1000HP 型是一种高容量、高压调节器,其某些结构允许入口压力高达 2600 psig (179.3 Barg),用于将下游压力控制在 10 和 300 psig (0.69 和 20.7 Barg) 之间。尺寸从 1/2" 到 2"(DN15 到 DN50)。独特的内部设计允许在多种应用中使用,包括普通减压调节器无法比拟的空气、蒸汽和工艺流体。可供用户使用的通用的自给式减压调节器。
The Model 1000HP is a high capacity, high pressure regulator with some constructions allowing inlet pressures up to 2600 psig (179.3 Barg), used to control downstream pressure between 10 and 300 psig (0.69 and 20.7 Barg). Available in sizes from 1/2" thru 2" (DN15 thru DN50).The unique internals design allows use in a multitude of applications, including air, steam and process fluids that normal pressure reducing regulators can not match. The most versatile self contained, pressure reducing regulator available to users.

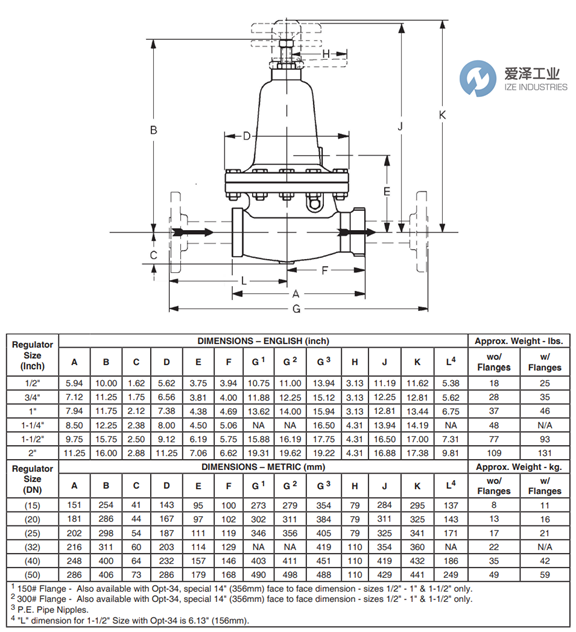

CASHCO调节器1000 HP Basic系列尺寸图

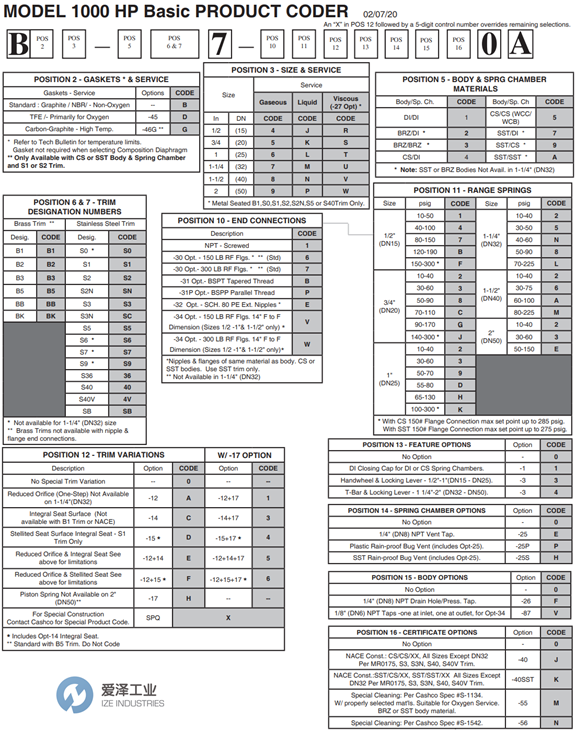

CASHCO调节器1000 HP Basic系列选型
CASHCO调节器1000 HP Basic系列常用型号:
CASHCO BBJ-AS07-77C00000A
CASHCO BBJ-AS17-77C00000A
CASHCO BBJ-AS27-77C00000A
CASHCO BBJ-AS37-77C00000A
CASHCO BBJ-AS57-77C00000A
CASHCO BBJ-AS67-77C00000A
CASHCO BBJ-AS77-77C00000A
CASHCO BBJ-AS97-77C00000A
CASHCO BBJ-AS367-77C00000A
CASHCO BBJ-AS407-77C00000A
CASHCO Regulators NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于CASHCO调节器BBJ-AS27-77C00000A的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for CASHCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
CASHCO调节器1000 HP Basic系列BBJ-AS27-77C00000A技术参数及选型
