DRUCK传感器PTX5072-TC-A1-CA-H0-PF技术参数
Model Number | PTX5072-TB-A1-CA-H0-PF |
Main Product Variant | PTX = 4-20 mA Pressure Transmitter |
Product Series | 5 = UNIK 5000 |
Diameter and Material | 0 = 25mm Stainless Steel |
Electrical Connector | 7 = DIN 43650 Form A Demountable (Mating connector supplied) |
Electronics Option | 2 = 4 to 20 mA 2-wire (PTX) |
Compensated Temperature Range | TC = -40 to +80 °C (-40 to +176 °F) |
Accuracy | A1 = Industrial |
Calibration | CA = Zero/Span Data |
Hazardous Area Approval | H0 = None |
Pressure Connector | PF = 1/4 NPT Male |
DRUCK传感器PTX系列介绍
新的 UNIK 5000 是一种高性能的可配置压力测量解决方案。 使用 Druck 硅技术和模拟电路可实现一流的稳定性、低功耗和频率响应性能。
特征
• 范围从 70 mbar (1 psi) 到 700 bar (10,000 psi)
• 精度达到 ±0.04% 满量程 (FS) 直线 (BSL)
• 不锈钢结构
• 频率响应达 5 kHz
• 过压能力强
• 危险区域认证
• mV、mA、电压和可配置电压输出
• 多种电气和压力连接器选项
• 工作温度范围为 –55 至 125°C（-67 至 257°F）
The new UNIK 5000 is a high performance configurable solution to pressure measurement. The use of Druck silicon technology and analogue circuitry enables best in class performance for stability, low power and frequency response.
Features
• Ranges from 70 mbar (1 psi) to 700 bar (10,000 psi)
• Accuracy to ±0.04% Full Scale (FS) Best Straight Line (BSL)
• Stainless Steel construction
• Frequency response to 5 kHz
• High over pressure capability
• Hazardous Area certifications
• mV, mA, voltage and configurable voltage outputs
• Multiple electrical & pressure connector options
• Operating temperature ranges from –55 to 125°C (-67 to 257°F)

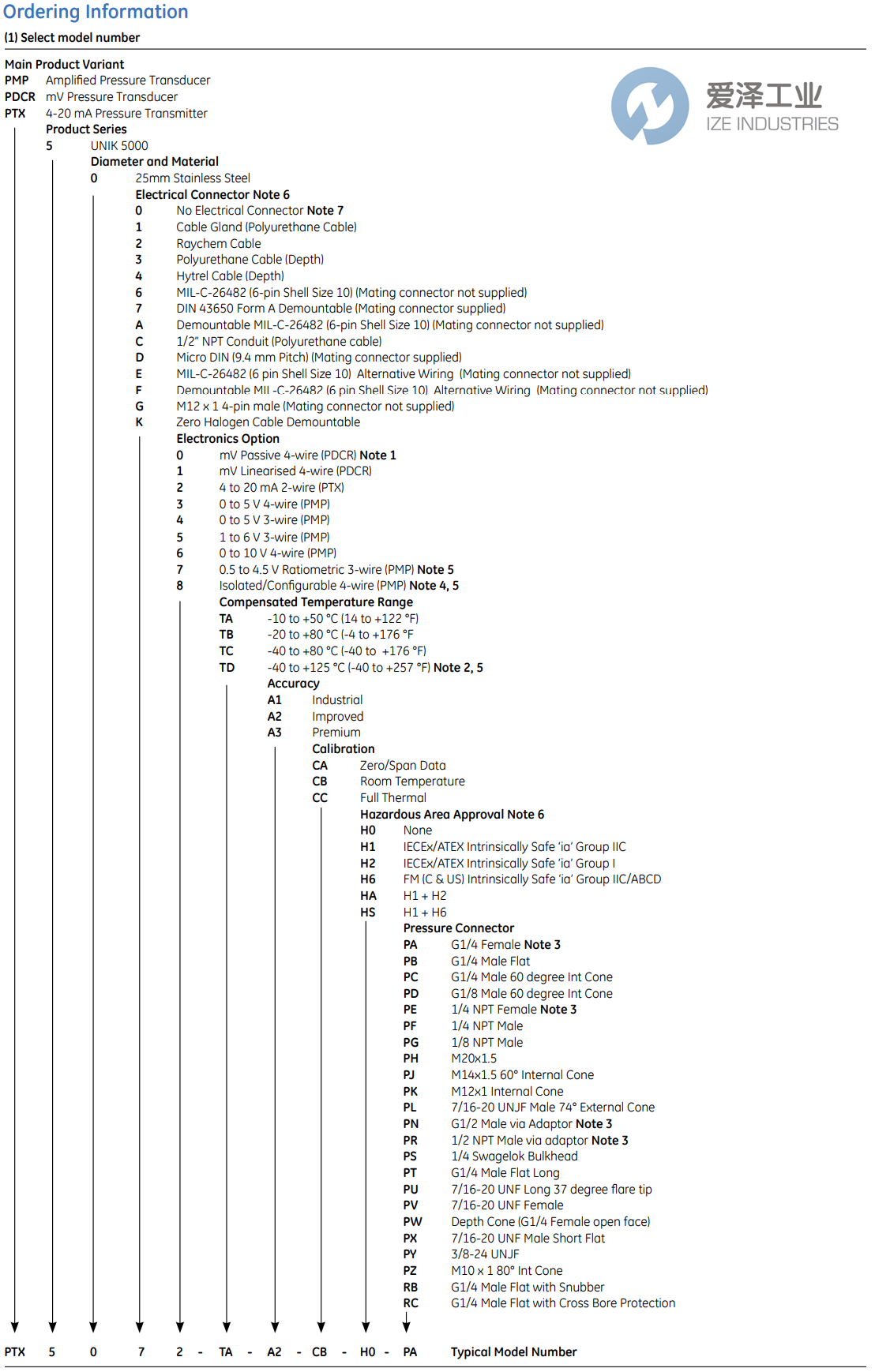

DRUCK传感器PTX系列选型
DRUCK传感器PTX系列其他常用型号：
DRUCK PTX5072-TC-A1-CA-J1-PA
DRUCK PTX5072-TA-A2-CB-H0-PN
DRUCK PTX5072-TB-A1-CA-H1-PA
DRUCK PTX5072-TB-A2-CA-H0-PA
DRUCK PTX5072-TC-A1-CA-HO-PA
DRUCK PTX5072-TA-A2-CA-H0-PB
DRUCK PTX5072-TA-A3-CB-J1-PB
DRUCK PTX5072-TB-A1-CA-H0-PB
DRUCK PTX5072-TB-A1-CA-H0-PB
DRUCK PTX5072-TB-A1-CA-J1-PA
DRUCK PTX5072-TB-A2-CB-H0-PA
DRUCK PTX5072-TB-AI-CA-HO-PA
DRUCK PTX5072-TC-A1-CA-H1-P
DRUCK PTX5072-TC-A2-CA-H0-PA
DRUCK PTX5072-TC-A2-CA-H0-PA
DRUCK PTX5072-TC-A1-CA-H0-PF
DRUCK sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于DRUCK传感器PTX5072-TC-A1-CA-H0-PF的疑问，请随时与我们电联，（021-3100 6702），我们将尽全力解决您的问题。
If you have any question for DRUCK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
DRUCK传感器PTX系列PTX5072-TC-A1-CA-H0-PF技术参数及选型
