TESCOM计量阀CC系列技术参数
OPERATING PARAMETERS | |
Maximum Pressure | 50 mm Hg-10,000 psig / 50 mm Hg-690 bar |
Design Proof Pressure | 150% of maximum rated |
Leakage | < 4 x 10-8 Torr liter sec -1 at 50 psid / 3.4 bar d Helium |
Operating Temperature | -30°F to 300°F / -34 °C to 149 °C |
Flow Capacity | Cv = 0.00125 Maximum |
Maximum Operating Torque | 10 inch-lbs / 1.1 N•m |
MEDIA CONTACT MATERIALS | |
Body | 316 Stainless Steel |
Seat | Peek, Polyimide (Vespel®) |
O-Rings | Ethylene Propylene, FKM (Viton®-A), Nitrile, Buna-N 90 Durometer, FFKM, Perfluoroelastomer (Kalrez®) |
Back-up Ring | PTFE |
Remaining Parts | 300 Series Stainless Steel |
OTHER | |
Cleaning | CGA 4.1 and ASTM G93 |
Connections | NPTF, SAE (1/8" only), High Purity Internal Connections (HPIC) (3500 psig / 241 bar Maximum) |
Internal Volume | Approximately 0.25 cc |
Weight | 0.9 lbs / 0.4 kg |
TESCOM计量阀CC系列介绍
TESCOM CC 系列计量阀的额定压力为 10,000 psig / 690 bar，并包含一个非旋转阀杆以减少阀座和阀杆磨损。 该阀门具有从关闭到完全打开的 20 多圈，提供出色的流量控制。
应用
• 喷射系统
• 校准系统
• 样品系统
• GC 载气
• 超临界流体萃取
特点和优势
• 紧凑的设计
• 可在高压和低压下使用
• 以极高的精度控制气流
• 真空和/或正压应用的精确流量控制
• 非旋转阀杆有助于减少阀座磨损
TESCOM CC Series metering valve is rated to 10,000 psig / 690 bar and contains a non-rotating stem to reduce seat and stem wear. The valve features over 20 turns from shutoff to full open, providing excellent flow control.
Applications
• Injection systems
• Calibration systems
• Sample systems
• GC carrier gas
• Super critical fluid extraction
Features and Benefits
• Compact design
• Can be used at high and low pressures
• Controls gas flow with extreme accuracy
• Accurate flow control into both vacuum and/or
positive pressure application
• Non-rotating stem assists in reducing seat wear

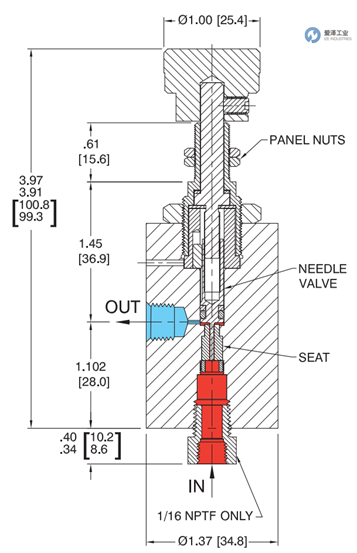

TESCOM计量阀CC系列技术尺寸

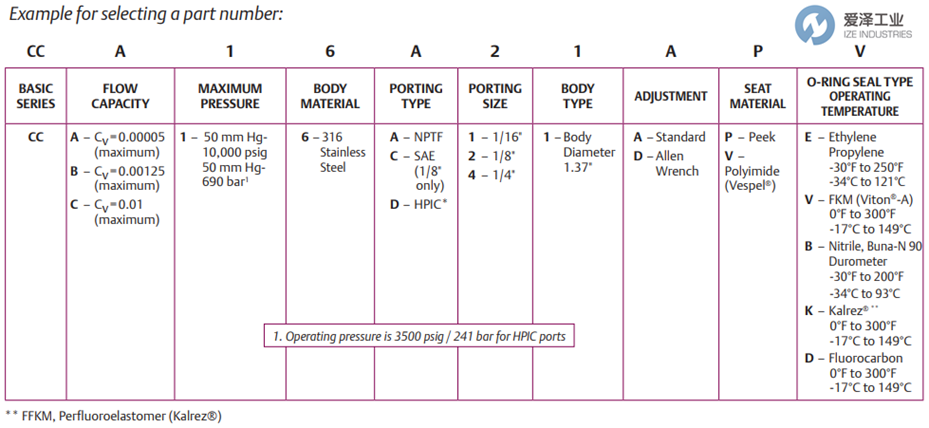

TESCOM计量阀CC系列选型
TESCOM计量阀CC系列其他常用型号：
TESCOM CC-A16A41APV-002
TESCOM CC-A16A41APV
TESCOM CC-A16A21APV
