TESCOM压力调节器26-1000系列技术参数
OPERATING PARAMETERS | |
Maximum Inlet Pressure | Stainless Steel: 10,000 psig / 690 bar |
Maximum Outlet Pressure | 5-500, 5-800, 10-1500, 15-2500, 25-4000, 50-6000, 200-10,000 psig |
Design Proof Pressure | 150% maximum rated |
Leakage | Bubble-tight |
Operating Temperature | -40°F to 165°F / -40°C to 74°C |
Flow Capacity | Standard: Cv = 0.06 |
MEDIA CONTACT MATERIALS | |
Body | 316 Stainless Steel or Brass |
Bonnet | 300 Series Stainless Steel |
40 Micron Filter | 300 Series Stainless Steel or Bronze |
Seat | Main Valve: Polyimide (Vespel®) |
Seals | Nitrile, Buna-N |
Back-Up Rings | PTFE |
Trim | 300 Series Stainless Steel |
OTHER | |
Cleaning | CGA 4.1 and ASTM G93 |
Weight (without gauges) | Stainless Steel: 5.5 lbs / 2.5 kg |
TESCOM压力调节器26-1000系列介绍
26-1000 系列可控制高达 10,000 psig / 690 bar 的压力。这种减压调节器提供标准排气，从而降低出口压力。26-1000 系列具有可互换的弹簧和传感器，以实现产品的多功能性。低扭矩把手易于调节。非常适合用于测试设备、校准台和生产设备。
26-1000 Series controls pressures up to 10,000 psig / 690 bar. This pressure reducing regulator offers standard venting providing decreased outlet pressure. The 26-1000 Series has an interchangeable spring and sensor for product versatility. The low torque handknob is easy to adjust. Ideal for use in test equipment, calibration stands and production equipment.

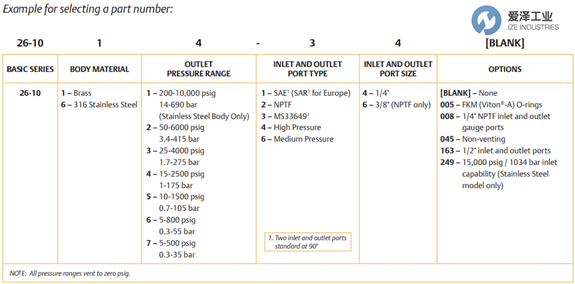

TESCOM压力调节器26-1000系列选型
TESCOM压力调节器26-1000系列其他常用型号：
TESCOM 26-1065-14-423
TESCOM 26-1065-28-045
TESCOM 26-106124
TESCOM Pressure Regulator NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于TESCOM压力调节器26-106124的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for TESCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
TESCOM压力调节器26-1000系列26-106124技术参数及选型
