EATON阀DGMX2系列技术参数
Basic Characteristics | |
Maximum flow | 120 l/min (32 USgpm) |
Pilot flow@ 50°C (120°F) and 315 bar (4500 psi) | 290–420 ml/min (18 in3 /min-26 in3 /min) |
Maximum operating pressure | “A” models - 70 bar (1000 psi) * (inlet pressure) 50 bar (725 psi) (reduced pressure) |
Leakage flow rate @ 50° C (120° F) and 315 bar (4500 psi) | 80-200 ml/min (15-12 in3 /min) |
(Leakage to “Tb” around spool land @315 bar (4500 psi) Operating temperature -0° to 80°C (32° to 180°F) | |
Weights | 3,5 kg (7.7 lbs) |
* Slightly higher pressure override characteristics between 70 bar (1000 psi) and 315 bar (4500 psi) inlet. | |
EATON阀DGMX2系列介绍
这些两级滑阀保持降低的出口压力，以应对入口压力的变化。 这些阀门能够充当安全阀（最大流量的 50%），以防止在执行器受到反作用负载时产生过压。
阀门压力设置可通过包含内六角的调节螺钉、手动调节旋钮或带钥匙锁的千分尺旋钮进行调节。 不同的弹簧额定值涵盖从 2 到 315 bar (30-4500 psi) 的总压力范围。
These two-stage spool valves maintain a reduced outlet pressure against variations in inlet pressure. These valves are able to act as relief valves (at 50% of maximum flow) to prevent excess pressure being developed when an actuator is subject to a reactive load.
The valve pressure setting is adjustable by means of either an adjusting screw containing an internal hex, a hand-adjust knob, or a micrometer knob with keylock. Different spring ratings cover an overall pressure range from 2 to 315 bar (30-4500 psi).

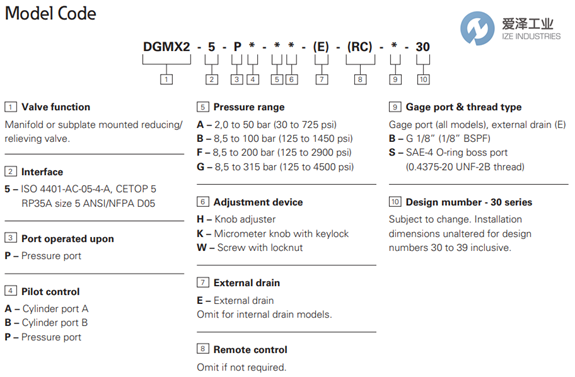

EATON阀DGMX2系列选型
EATON阀DGMX2系列其他常用型号：
EATON DGMX2-5-PP-FW-B-30
EATON DGMX2-3-PA-BH-S-40
EATON DGMX2-3-PA-RW-B-40
EATON DGMX2-3-PP-FW-S-40
EATON DGMX2-3-PP-BW-S-40
EATON DGMX2-5-PB-FW-B-30
EATON Pressure Valves NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于EATON阀DGMX2-5-PP-FW-B-30的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for EATON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
EATON阀DGMX2系列DGMX2-5-PP-FW-B-30技术参数及选型
