JOHNSON CONTROLS压力控制器P100系列技术参数
Specifications | |
Product | P100 Encapsulated Pressure Controls |
Electrical Ratings | 120 and 240 VAC at 50/60 Hz |
Burst Pressure | 3,500 psi (24,132 kPa) |
Maximum Overpressure | 250 psi (1,724 kPa) overpressure rating for P100 controls with 20 to 100 psi (138 to 690 kPa) working pressure |
Refrigerant Temperature | -65 to 275°F (-54 to 135°C) |
Ambient Temperature | Operating: -20° to 150°F (-29° to 66°C) |
Dielectric Strength | 750 Vrms Across Open Contacts |
Ambient Humidity | 0 to 95% RH non-condensing; Maximum Dew Point: 85°F (29°C) |
Agency Listings | UL Recognition (US): File SA516, CCN SDFY2 |
JOHNSON CONTROLS压力控制器P100系列介绍
P100系列封装压力控制器是紧凑、经济、直接安装、速动、开/关压力控制器，可用于各种工厂校准、不可调节的压力设定点。
P100控制器主要设计用于电机和其他制冷或空调应用负载的直接或先导式控制，这些负载需要在广泛的环境条件下进行精确、可重复的压力控制。
P100控制器可提供多种压力连接方式、电气额定值和开关动作。 某些型号提供高压手动复位锁定。
The P100 Series Encapsulated Pressure Controls are compact, economical, direct-mount, snap-action, On/Off pressure controls, available in a wide variety of factory-calibrated, non-adjustable pressure setpoints.
The P100 controls are designed primarily for direct or pilot duty control of motors and other refrigeration or air conditioning application loads requiring precise, repeatable pressure control over a wide range of ambient conditions.
The P100 controls are available with a variety of pressure connection styles, electrical ratings, and switch actions. A high-pressure manual reset lockout is available on some models.

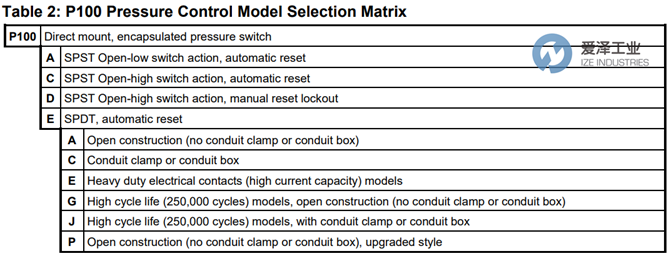

JOHNSON CONTROLS压力控制器P100系列选型
JOHNSON CONTROLS压力控制器P100系列其他常用型号：
JOHNSON CONTROLS P100CP-165C
JOHNSON CONTROLS P100CP-85C
JOHNSON CONTROLS P100DA-35C
JOHNSON CONTROLS P100DC-3C3
JOHNSON CONTROLS P100DA-1C
JOHNSON CONTROLS P100DA-100C
JOHNSON CONTROLS P100DA-101C
JOHNSON CONTROLS P100DA-2C
JOHNSON CONTROLS P100DA-86C
JOHNSON CONTROLS P100DA-81C
JOHNSON CONTROLS P100DA-82D
JOHNSON CONTROLS Pressure Controls NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于JOHNSON CONTROLS压力控制器P100DA-82D的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for JOHNSON CONTROLS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
JOHNSON CONTROLS压力控制器P100系列P100DA-82D技术参数及选型
