SAMSON气动增压器3755-11000000000000.00技术参数
Pneumatic volume booster | Type 3755 |
Design | Low-noise venting over a sintered polyethylene filter disk |
Pneumatic connections | Supply air and actuator ISO 228 - G ¾, signal ISO 228 - G ¼ |
Exhaust version | Sintered polyethylene filter disk |
Flow coefficient | Supply KVS = 2.5 m³/h, exhaust KVS = 2.5 m³/h |
Dynamic response | Standard (normal control) |
Body material | Aluminum |
Color | Gray-beige, structured finish, RAL 1019 (aluminum body |
Temperature range | Standard temperature, –40 to +80 °C |
SAMSON气动增压器3755系列介绍
-气动容积增压器安装在定位器和执行器之间。 它为执行器提供气流输出，其压力与信号压力完全对应，但它具有更高的输出体积。
-紧凑的铝制或不锈钢机身
-适用于安全仪表系统
-低迟滞带来快速动态响应
-具有线性特性的旁路限制
-旁路限制设置可以铅封
-烧结 PE 滤盘确保低噪音排放
-恒定反向压力
-The pneumatic volume booster is mounted between the positioner and actuator. It supplies the actuator with an air flow output whose pressure corresponds exactly to the signal pressure, except that it has a much higher volume output.
-Compact aluminum or stainless steel body
-Suitable for safety-instrumented systems
-Fast dynamic response due to low hysteresis
-Bypass restriction with linear characteristic
-Bypass restriction setting can be lead-sealed
-Sintered PE filter disk ensures low noise emissions
-Constant reversing pressure

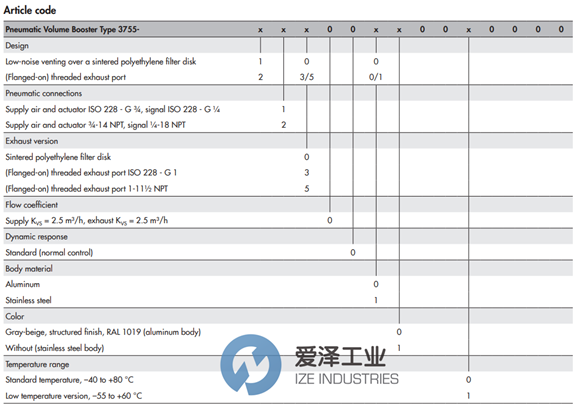

SAMSON气动增压器3755系列选型
SAMSON气动增压器3755系列其他常用型号：
SAMSON 3755-21300000000000.00
SAMSON 3755-11000000000000.00
SAMSON 3755-12000000000000
SAMSON Pneumatic volume booster NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SAMSON气动增压器3755-11000000000000.00的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for SAMSON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SAMSON气动增压器3755-11000000000000.00技术参数及选型
