AS-SCHNEIDER阀组A1B-AF3AF3-SAK技术参数
A1 | Union Bonnet Needle Valve Type A1 |
B | Packing: Graphite |
- | |
A | Inlet Connection: Butt Weld End |
F | PIPE:16mm |
3 | Wall Thickness Pioes:3.2mm |
A | Inlet Connection: Butt Weld End |
F | PIPE:16mm |
3 | Wall Thickness Pioes:3.2mm |
- | |
S | Material: 316H |
A | Vent Connection: Without |
K | Operation Options: T-Handle |
AS-SCHNEIDER阀组A1系列介绍
Union Bonnet Needle Valves
Type A1
AS-Schneider Union Bonnet Needle Valve Type A1 is available with a lot of options. The valve is designed for severe service. Following design features characterize the A1 valve: External Stem Thread, Valve Stem with cold rolled threads, Non-rotating Needle and back seat design and an Integral Valve Seat.
Bore Size: 0.433" (11 mm)
A diverse range of options and the relevant accessories are available, please see below Mounting Bracket Kits and Accessories.
联合阀帽针阀
A1型
AS-Schneider Union Bonnet A1 型针阀有多种选择。 该阀门专为严苛工况而设计。 以下设计特点是 A1 阀门的特点:外阀杆螺纹、带冷轧螺纹的阀杆、非旋转针和后座设计以及一体式阀座。
孔径:0.433" (11 mm)
提供多种选项和相关附件,请参阅下面的安装支架套件和附件。

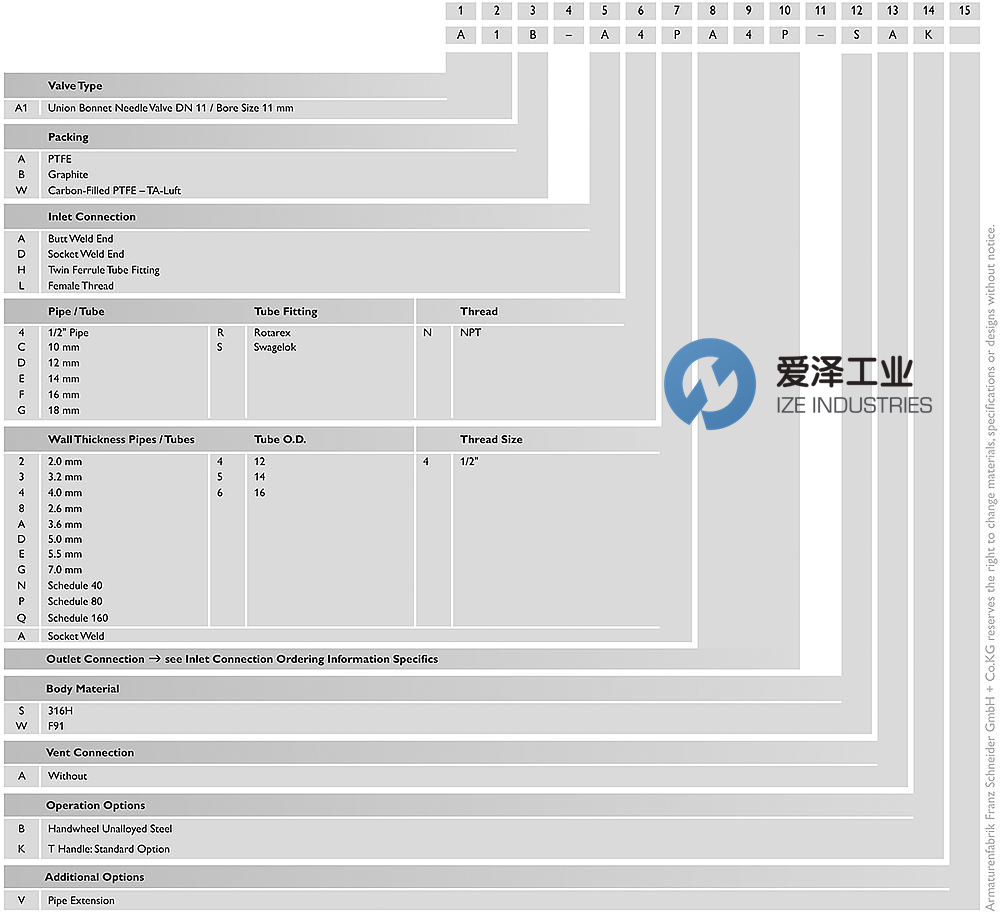

AS-SCHNEIDER阀组A1系列选型
AS-SCHNEIDER阀组A1系列其他型号:
AS-SCHNEIDER A1B-AF3AF3-SAK
AS-SCHNEIDER A1B-A4PA4P-SAK
