SCHNEIDER执行器M800-S2技术参数
SPECIFICATIONS | |
Part numbers | 880-0311-030 |
Supply voltage | 24 V AC +25%/ -35%, 50–60 Hz |
Power consumption | average 15 VA |
Transformer sizing | 50 VA |
Running time | |
Modulating 9–25 mm (0.35 - 1 in.) | 15 s |
Modulating 25–32 mm (1 - 1.26 in.) | 20 s |
Modulating 32–52 mm (1.26 - 2.05 in.) | 30 s |
Increase/decrease | 300 s/60 s |
Stroke | 9–52 mm (0.35 - 2 in.) |
Factory set stroke | 20 mm (0.79 in.) |
Thrust | 800 N (180 lbf.) |
Duty cycle | max. 20%/60 minutes |
Analog input | |
Voltage | 0–10 V |
Impedance | min 100 k Ohm |
Digital inputs VH–VC | |
Voltage across open input | 24 V AC |
Current through closed input | 5 mA |
Pulse time | min. 20 ms |
Output G1 | |
Voltage | 16 V DC ±0.3 V |
Load | 25 mA, short-circuit proof |
Output Y | |
Voltage | 2-10 V (0-100%) |
Load | 2 mA |
Ambient temperature | |
Operation | –10 – +50 °C (14°F - 122°F) |
Storage | –10 – +50 °C (14°F - 122°F) |
Ambient humidity | max. 90% RH |
Enclosure ratingX | IP 54 |
Sound power level | max. 40 dBA |
Weight | |
Weight | 1.8 kg (3.96 lb.) |
SCHNEIDER执行器M800-S2产品介绍
调制控制信号或增减信号和端点开关
modulating control signal or increase/decrease signal and end point switches
SCHNEIDER执行器M800系列介绍
M800可以由增加/减少信号或由调制的0-10V控制信号来控制。调制控制使执行器的定位更快。
执行器的电子电路确保运行时间相同，无论有关阀门的行程如何。
它易于安装和连接执行器。它可以直接安装在TAC的控制阀上，没有任何安装套件。
执行机构的工作范围会根据阀门的行程进行自动调整。执行器的电子电路然后负责阀端位置的调整。
执行器由24V交流电供电。它可以为旧的TAC控制器提供一个位置指示信号2-10V和一个16VDC电压电源。
M800 is either controlled by an increase/decrease signal or by a modulating 0–10 V control signal. Modulating control makes for a faster positioning of the actuator.
The electronic circuitry of the actuator ensures that the running time is the same, regardless of the stroke of the valve in question.
It is easy to mount and connect the actuator.It can be mounted directly onto TAC’s control valves, without any mounting kit.
The working range of the actuator is adjusted automatically depending on the stroke of the valve. The electronic circuitry of the actuator then takes care of the adjustment of the valve end positions.
The actuator is supplied by 24 V AC. It can provide a position indicator signal 2-10 V and a 16 V DC voltage supply for older TAC controllers.

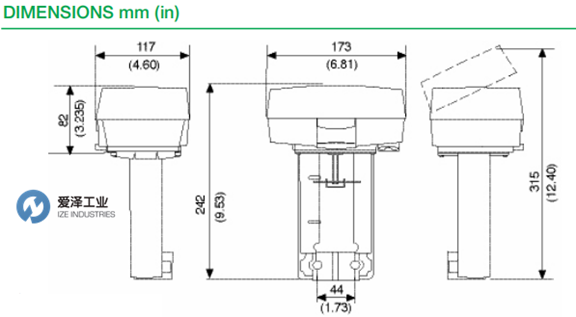

SCHNEIDER执行器M800系列技术尺寸
