NODING变送器P131系列技术参数
TECHNICAL DATA | |
Output | |
Analog output | 4…20 mA 2-wires |
Power supply | |
20 mA output | 9…30V DC |
10 V output | 15…30 V DC |
EX Version | 12…30 V DC |
Signal characteristics | |
Accuracy | ≤ ± 0,2 % FS @ 25°C |
Long term stability | ≤ ± 0,15 % FS /Year |
Response time | 200 ms - others on request |
Swich-on time | < 1 s |
Temperature coefficient | |
Zero | ≤ ± 0,015 % FS /Kelvin |
Span | ≤ ± 0,01 % FS /Kelvin |
Temperature ranges | |
Medium temperature | -40…100 °C (125 °C < 0,5 h) |
Surrounding temperature | -25…80 °C |
Storage temperature | -40…85 °C |
Electrical protections | |
Short-circuit resistance | Permanent |
Reverse polarity protection | Protection against reverse polarity, but no function |
Electromagnetic compatibility | Interference emissions and immunity acc. to EN 61326 |
Mechanical resistance | |
Vibration | 4g with 3-axis resonance frequency according to DIN EN 60068-2-6:2008 |
Wetted materials | |
Process connection | Stainless steel 1.4404 or PVDF |
Sensor | Ceramic Al2O3 - FDA |
Sensor seal | FPM (Viton), NBR, EPDM, FFKM (Chemraz/Kalrez) |
NODING变送器P131系列介绍
P131压力变送器具有大型过程连接和前置齐平测量传感器。可以最有效地防止膜堵塞，并且可以在必要时轻松清洁。该传感器经过 ATEX 和 DNV-GL 认证，还可用于潜在爆炸区域，并具有出色的机械强度。陶瓷传感器元件可抵抗侵蚀性和磨蚀性介质。即使在最低压力和高过载电阻下，电容测量原理也能实现非常准确和长期稳定的测量。过程连接由不锈钢 1.4404 或 PVDF 等优质材料制成，因此适用于几乎所有介质。
最小测量范围：0…30 mbar
最大测量范围：0…40 bar
负压测量范围：最高-1 bar
准确度 ≤ 0,2%
高过载能力
坚固的设计
可选塑料 PVDF
模拟输出：
4…20 mA，2 线
0…10 V，3 线
The P131 pressure transmitter features large process connections and a front-flush measuring sensor. Clogging of the membrane is prevented most effectively and can be easily cleaned if necessary. ATEX and DNV-GL certified, the sensor can also be used in potentially explosive areas and features excellent mechanical strength. The ceramic sensor element is resistant to aggressive and abrasive media. The capacitive measuring principle enables a very accurate and long term stable measurement, even at lowest pressures and high overload resistance. The process connection is made of high-quality materials such as stainless steel 1.4404 or PVDF and is therefore suitable for almost all media.
Smallest measuring range: 0…30 mbar
Largest measuring range: 0…40 bar
Negative pressure measuring range: up to -1 bar
Accuracy ≤ 0,2%
High overload capability
Rugged design
Optionally in plastic PVDF
Analog output:
4…20 mA, 2-wires
0…10 V, 3-wires

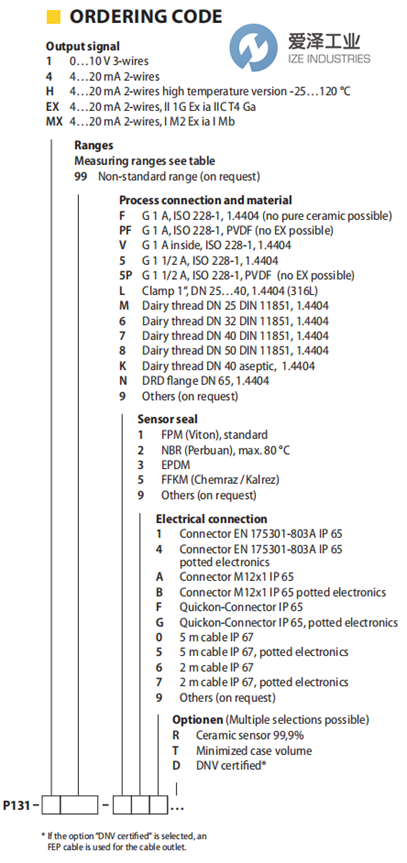

NODING变送器P131系列选型
NODING变送器P131系列其他常用型号：
NODING P131-4B0-V17
NODING P131-4B0-V14
NODING P131-4B0-V1A
NODING P131-4B0-V1B
NODING P131-4B0-V1F
NODING P131-4B0-V1G
NODING P131-4B0-V10
NODING P131-4B0-V15
NODING P131-4B0-V16
NODING P131-4B0-V19
NODING P131-4B0-V27
