C.E.SRL回讯开关CFIB-2-ME-05-ET技术参数
CFIB-2-ME-05-ET |
CFIB: Low Cover Version - Nr.3 3/4 "NPT. F Conduit Entries-Position Display in 3D (Standard) |
2: Nr.2 Sensors-Each with Nr.3 terminal when combined with SPST/SPDT contact or N ° 6 if with DPDT contacts |

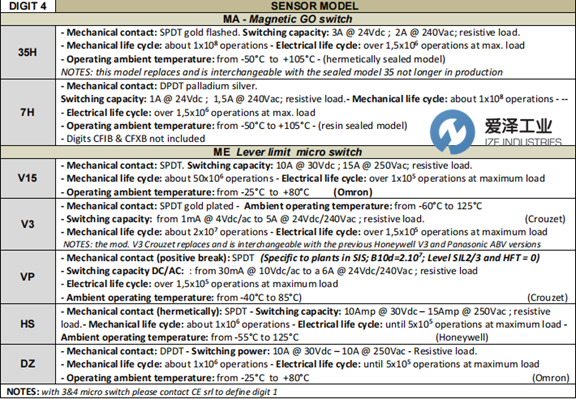

ME: Micro switch |

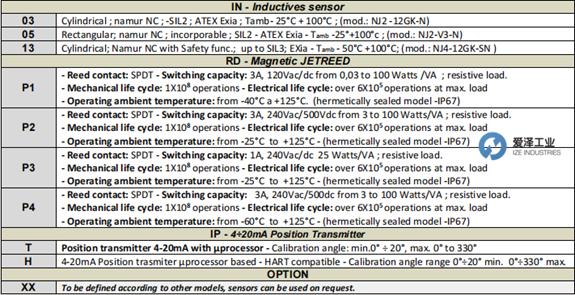

05: rectangle; Namur NC; incorporable; SIL2-ATEX Exia-Tamb-25 ° + 100 ° C; (Model: NJ2-V3-N) |

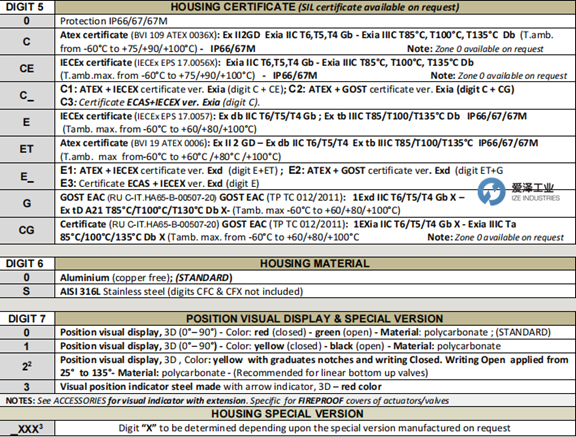

ET: ATEX Certificate (BVI 19 ATEX 0006): Ex II 2 GD-Ex DB IIC T6/T5/T4 Ex TB IIIC T85/T100/T135 ° C IP66/67/67M (T.AMB. Max from 60 ° C to + 60 ° C/+ 80 ° C/+ 100 ° C) |
C.E.SRL阀门控制器CF系列产品介绍
材质：无铜铝和316L不锈钢
旨在简化安装和接线的解决方案
带有2、3和4个电缆入口的版本，带 ½” npt、¾” npt、M20x1.5和M25x1.5 螺纹
从1到6个机械限位开关、REED 磁性元件、混合磁性元件和感应磁性元件
内部支持接线板和限位开关互连
适用于Exd和Exia区域的ATEX、IECEx 和 GOST EAC TR CU Ex认证
定位各种颜色的视觉指示器，专门用于防火保护
具有多种解决方案的扩展位置视觉指示器
它们可以在极端温度的环境中使用
Material: copper-free aluminium and 316L stainless steel
Solutions designed to simplify installation and wiring
Versions with 2, 3 and 4 cable entries with ½” npt, ¾” npt, M20x1.5 and M25x1.5 threads
From 1 to 6 mechanical limit switches, REED magnetics, hybrid magnetics and inductive magnetics
Internal support terminal boards and limit switch interconnection
ATEX, IECEx and GOST EAC TR CU Ex certifications for Exd and Exia areas
Position visual indicators of various colours and specific for FIREPROOF protection
Extended position visual indicators with multiple solutions
They can be used in environments with extreme temperatures
C.E.SRL阀门控制器CF系列选型
C.E.SRL阀门控制器CF系列其他常用型号：
C.E.SRL CFIB-2-ME-05-ET
C.E.SRL CFIB-1-MA-35H-C
C.E.SRL CFIB-2-RD-P5-ET-S
C.E.SRL CFIB-2-MA-35-E-0-0
C.E.SRL CFIB-2-MA-35-EX
C.E.SRL Feedback switch NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于C.E.SRL阀门控制器CFIB-2-ME-05-ET的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for C.E.SRL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
C.E.SRL阀门控制器CFIB-2-ME-05-ET技术参数
