FLUTEC节流阀DVP系列技术描述
SPECIFICATIONS* | |
Operating pressure: | max. 350 bar |
Nominal flow: | DVP, DRVP-06 max. 20 l/min |
Cracking pressure (on DRVP): | 0.5 bar |
Media operating temperature range: | min. -20 °C to max. +80 °C |
Ambient temperature range: | min. -20 °C to max. +80 °C |
Operating fluid: | Hydraulic oil to DIN 51524 Part 1, 2 and 3 |
Viscosity range: | min. 2.8 mm²/s to max. 800 mm²/s |
Filtration: | Class 21/19/16 according to ISO 4406 or cleaner |
MTTFd : | 150 - 1200 years, according to DIN EN ISO 13849-1 |
Installation: | No orientation restrictions, preferably horizontal |
Materials: | Valve body: steel |
Weight: | DVP 06 = 0.2 kg DRVP 06 = 0.3 kg |
FLUTEC节流阀DVP-12产品介绍
FEATURES
For regulating the speed of loads
For fine adjustment and shut-off of the flow
For system-related damping in hydraulic circuits
To release pressure from accumulator systems
As an emergency drain for lowering a load
Spindle patented secured before complete loosening
An Allen set-screw locks the setting of the knob
Choice of nine sizes ensures best possible adaptability to the system
Optional nickel-plated version available (up to size 12)
特征
用于调节负载速度
用于流量的微调和切断
用于液压回路中与系统相关的阻尼
从蓄能器系统释放压力
作为减轻负荷的紧急排水口
完全松动之前，已获得专利的主轴固定
内六角固定螺钉可锁定旋钮的设置
九种尺寸可供选择，以确保对系统的最佳适应性
提供可选的镀镍版本（最大尺寸为12）

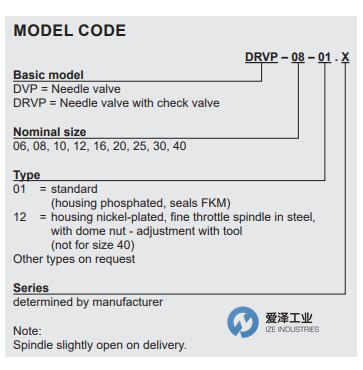

FLUTEC节流阀DVP选型图
FLUTEC节流阀DVP系列其他常用型号：
FLUTEC DVP-06-01.X 705351
FLUTEC DVP-08-01.X 705353
FLUTEC DVP-10-01.X 705355
FLUTEC DVP-12-01.X 705357
FLUTEC DVP-16-01.X 705359
FLUTEC DVP-20-01.X 705361
FLUTEC DVP-25-01.X 705363
FLUTEC DVP-30-01.X 705365
FLUTEC DRVP-06-01.X 705777
FLUTEC DRVP-08-01.X 705779
FLUTEC DRVP-10-01.X 705781
FLUTEC DRVP-12-01.X 705783
FLUTEC DRVP-16-01.X 705785
FLUTEC DRVP-20-01.X 705787
FLUTEC DRVP-25-01.X 705789
FLUTEC DRVP-30-01.X 705791
FLUTEC DRVP-40-01.X 705792
FLUTEC DVP-12-12.1 858212
FLUTEC DVP-12-01.X 705357
FLUTEC Control valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于FLUTEC节流阀DVP-12-01.X的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for FLUTEC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
FLUTEC节流阀DVP系列介绍
