ARIS电动执行器Nano+L系列技术参数
TECHNICAL DATA | |
Motor | AC:Synchronous motor, short-circuit proof |
Protection class | IP 65 (optional IP 66) |
Ambient temperature | -15...+60。C/optional -40...+.0。C (with PMR: 0...+60。C) |
Housing | Die cast aluminum (EN AC-44200) powder-coated |
Gear | Metal |
Cover | Aluminum EN AW-6060 T6 / powder-coated |
Shaft | 1.4021 |
Position indicator | optional |
Power supply | AC:230 V AC (optional 115 V AC/24 V AC) |
Additional switches | 2 or 4 pieces (optional) |
Potentiometer | optional |
Travel | 10...330° (optional Muli Turm) |
Duty cycle | 1 |
Connection | 3 cable glands M16x1,5 |
Travel cutoff | Switching cams/Micro switches |
Maintenance | Lfetime lubrication (maintenance-free) |
Control | AC:3-point-step |
ARIS Stellantriebe电动执行器Nano+系列介绍
Nano+ 以现代设计提供经典驱动技术。经典的驱动系统由电机-变速箱组合和由开关凸轮和微动开关组成的关断系统组成，至今仍然有效。
高度可调节的粉末涂层铝罩与粉末涂层基本外壳相结合，即使在恶劣的工业环境中也能确保无忧使用。此外，可固定凸轮确保即使在强烈振动的情况下也能在设定位置安全关闭。高度可调节的金属罩允许多种附加选项，从多圈应用到具有高扭矩的快速响应时间和直流变体的故障安全功能。
The Nano+ offers classic drive technology in a modern design. The classic drive system, consisting of a motor-gearbox combination and a switch-off system consisting of switching cams and microswitches, is still valid today.
A height-adjustable and powder-coated aluminum hood in combination with the powder-coated basic housing also ensure a worry-free use even in the harshest industrial environment. In addition, fixable cams ensure a safe switch-off in the set position even in the case of strong vibrations. The height-adjustable metal hood allows a multitude of additional options ranging from multiturn applications to fast response times with high torque and fail-safe function for the DC variant.

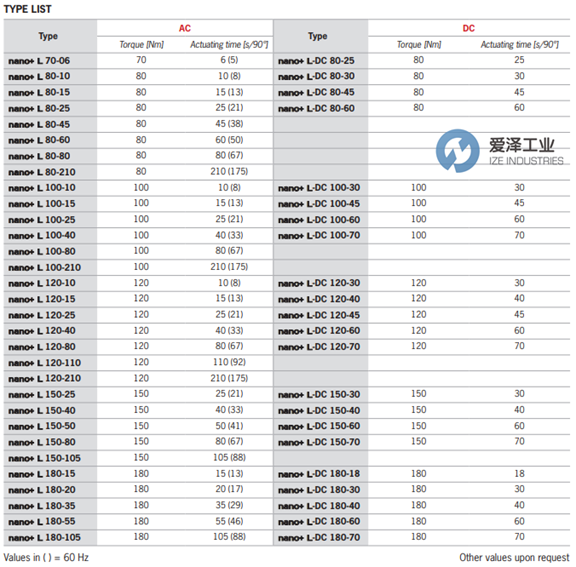

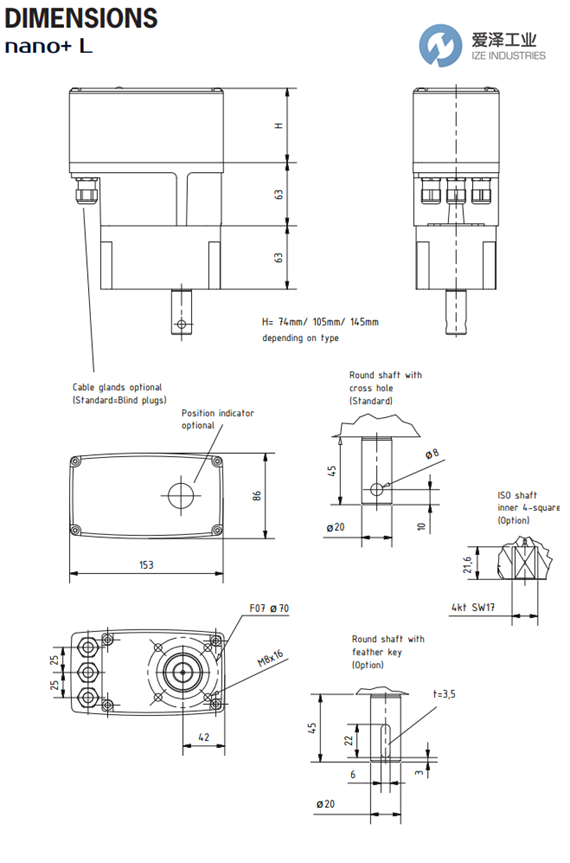

ARIS Stellantriebe电动执行器Nano+L系列尺寸图及选型
ARIS Stellantriebe电动执行器Nano+L系列其他常用型号：
ARIS Stellantriebe nano+ L 70-06
ARIS Stellantriebe nano+ L 80-10
ARIS Stellantriebe nano+ L 80-15
ARIS Stellantriebe nano+ L 80-25
ARIS Stellantriebe nano+ L 80-45
ARIS Stellantriebe nano+ L 80-60
ARIS Stellantriebe nano+ L 80-80
ARIS Stellantriebe nano+ L 80-210
ARIS Stellantriebe nano+ L 100-10
ARIS Stellantriebe nano+ L 100-15
ARIS Stellantriebe nano+ L 100-25
ARIS Stellantriebe nano+ L 100-40
ARIS Stellantriebe nano+ L 100-80
ARIS Stellantriebe nano+ L 100-210
ARIS Stellantriebe nano+ L 120-10
ARIS Stellantriebe nano+ L 120-15
ARIS Stellantriebe nano+ L 120-25
ARIS Stellantriebe nano+ L 120-40
ARIS Stellantriebe nano+ L 120-80
ARIS Stellantriebe nano+ L 120-110
ARIS Stellantriebe nano+ L 120-210
ARIS Stellantriebe nano+ L 1 50-25
ARIS Stellantriebe nano+ L 150-40
ARIS Stellantriebe nano+ L 150-50
ARIS Stellantriebe nano+ L 150-80
ARIS Stellantriebe nano+ L 150-105
ARIS Stellantriebe nano+ L 180-15
ARIS Stellantriebe nano+ L 180-20
ARIS Stellantriebe nano+ L 180-35
ARIS Stellantriebe nano+ L 180-55
ARIS Stellantriebe nano+ L 180-105
