EDDINGTON流量调节器FR-038-S-0.25产品介绍
3/8" 标准流量调节器,0.25 GPM,额定压力为 125 psi。
3/8" Standard Flow Regulator,0.25 GPM, Rated to 125 psi.
EDDINGTON流量调节器介绍
Eddington流量调节器设计用于在很宽的压降范围内提供恒定体积的水流。通过使用灵活的孔板,可以保持恒定的水流。流速在15到125 psi之间保持在+ 15%以内。流量因制造公差和水温而异。Eddington生产各种材料的流量调节器,例如镀镍黄铜、316 型不锈钢和 PVC。Eddington 流量调节器具有各种流量,包括 3/8"、1/2"、3/4"、1" FNPT和1 1/4"、1 1/2"、2"、2 1/2" , 和 3" MNPT,流速范围为每分钟0.5到120加仑 (GPM)。我们还使用为恶劣环境和条件提供超强保护的标签。它们由防水和抗撕裂的耐用聚酯制成,提供耐用且安全的保护。所有Eddington流量调节器都标有指示流动方向的箭头。为确保正常运行,请始终将调节器安装时箭头指向下游。
The Eddington Flow Regulator is designed to deliver a constant volume of water flow over a wide pressure drop range. The constant flow of water is maintained by the use of the flexible orifice. The flow rate is maintained within + 15% between 15 and 125 psi. The flow rate varies due to manufacturing tolerances and water temperature. Eddington Industries manufactures Flow Regulators in various materials such as Nickel Plated Brass, Type 316 Stainless Steel, and PVC. Eddington Flow Regulators come in various flow rates and are 3/8", 1/2", 3/4", 1" FNPT, and 1 1/4", 1 1/2", 2", 2 1/2", and 3" MNPT and flow rates range from 0.5 to 120 gallons per minute (GPM). We also use labels that provide extra-strong protection for harsh environments and conditions. They are constructed from durable polyester that is water resistant and tear resistant providing durble and secure protection. All Eddington Flow Regulators are marked with an arrow indicating direction of flow. To ensure proper operation, always install regulator with the arrow pointed downstream.

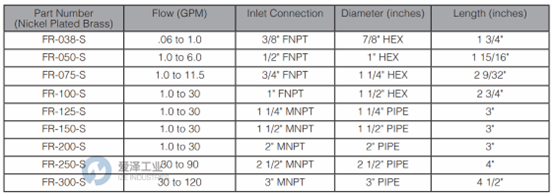

EDDINGTON流量调节器选型
EDDINGTON流量调节器其他常用型号:
EDDINGTON FR-038-S-0.25
EDDINGTON FR-038-S
EDDINGTON FR-050-S
EDDINGTON FR-075-S
EDDINGTON FR-100-S
EDDINGTON FR-125-S
EDDINGTON FR-150-S
EDDINGTON FR-200-S
EDDINGTON FR-250-S
EDDINGTON FR-300-S
EDDINGTON FLOW REGULATORS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于EDDINGTON流量调节器FR-038-S-0.25的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question, please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.
EDDINGTON流量调节器FR-038-S-0.25介绍
