CONTROL TECHNIQUES功率单元M000-11403770DU0100AB100技术规格
M000-11403770DU0100AB100 | |
M000 | Unassigned power – user fit control |
11 | Frame |
4 | Volts:4 = 400 V |
03770 | Current Rating: |
DU | Description:DC to AC Inverter |
0 | - |
1 | Documentation:1 = English or multilingual |
00 | Customer Code |
A | - |
B | Brake Transistor:B = Brake |
1 | IP / NEMA Rating:1 = IP20 / NEMA 1 |
0 | - |
0 | Keypad:0 = No Keypad on M6xx and M7xx |
CONTROL TECHNIQUES功率单元Unidrive M系列介绍
Unidrive M的模块化产品提供了一种构建紧凑、可靠的高功率解决方案的灵活方法。并联在一起,Unidrive M可以控制系统中的异步和永磁电机,功率高达2.8 MW (4,200 hp)。框架11是一个250 kW (400 hp)的模块,它允许系统制造商使用最少的组件创建高功率解决方案,同时将占地面积和成本保持在最低水平。
Unidrive M模块可以并联成各种灵活的解决方案,以满足所有系统需求,包括有源前端和多脉冲整流器配置。它们可由M600、M700、M701和M702控制器控制。
Unidrive M’s modular offering provides a flexible method of building compact, reliable high-power solutions. Paralleled together, Unidrive M can control asynchronous and permanent magnet motors in systems up to 2.8 MW (4,200 hp). The frame 11 is a 250 kW (400 hp) module that allows system builders to create high power solutions with the smallest number of components, keeping both footprint and costs to a minimum.
The Unidrive M modules can be paralleled into a wide range of flexible solutions to solve all system needs including Active Front End and multi-pulse rectifier configurations. They can be controlled by M600, M700, M701 and M702 controllers.

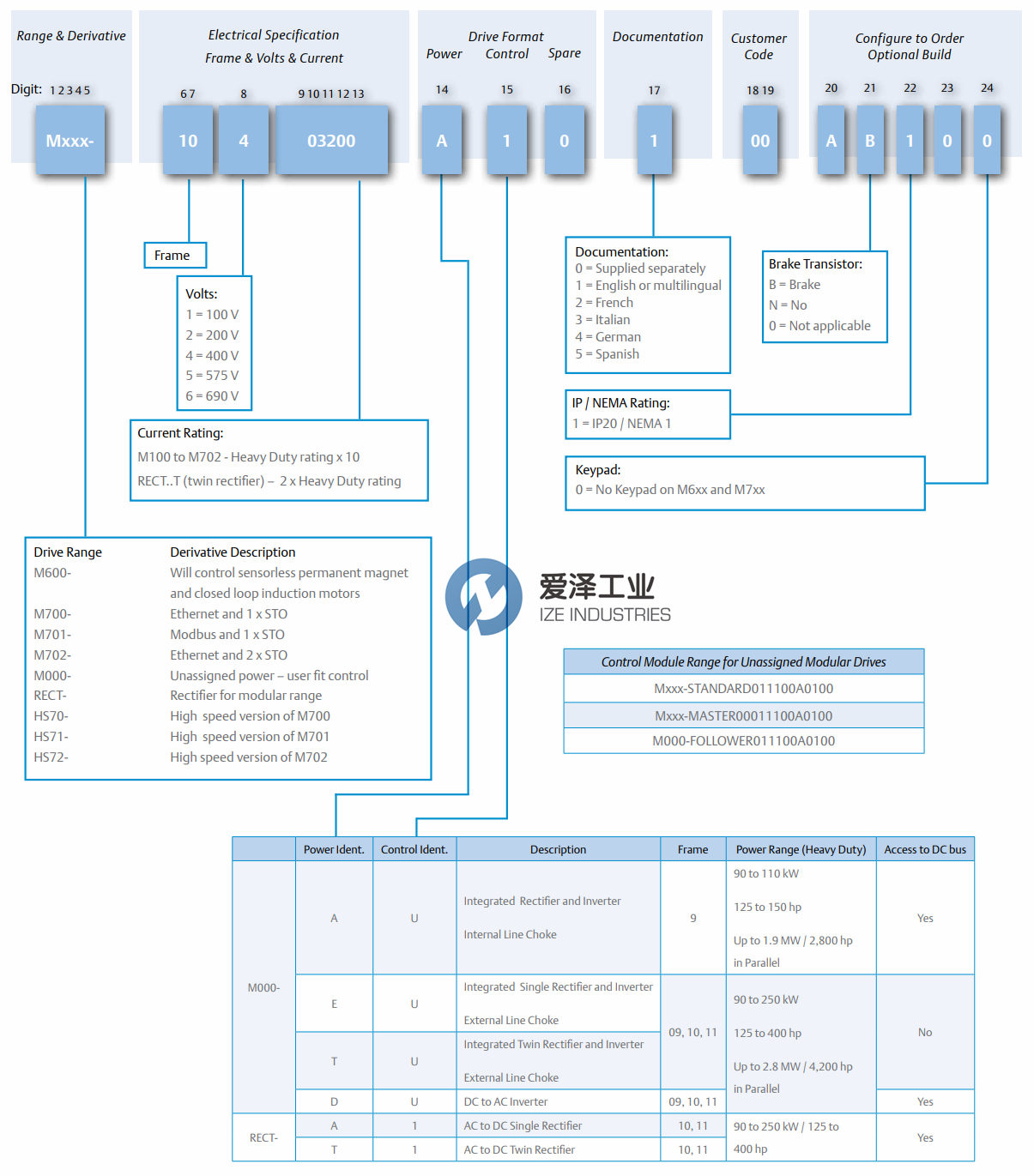

CONTROL TECHNIQUES功率单元选型
CONTROL TECHNIQUES功率单元其他常用型号:
CONTROL TECHNIQUES M000-09402000DU0100AB100
CONTROL TECHNIQUES M000-09402240DU0100AB100
CONTROL TECHNIQUES M000-10402700DU0100AB100
CONTROL TECHNIQUES M000-10403200DU0100AB100
CONTROL TECHNIQUES M000-11403770DU0100AB100
CONTROL TECHNIQUES M000-11404170DU0100AB100
CONTROL TECHNIQUES M000-11404640DU0100AB100
CONTROL TECHNIQUES Modular Drives NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于CONTROL TECHNIQUES功率单元M000-11403770DU0100AB100的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for CONTROL TECHNIQUES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
CONTROL TECHNIQUES功率单元M000-11403770DU0100AB100技术参数
