FOXBORO定位器E69P-BI1V技术参数
MODEL CODES | E69P-BI1V |
Current-to-Pneumatic Valve Positioner | E69P |
Bolted Cover - weatherproof (for use in all non-explosionproof applications | -B |
Input Signal Range:4 to 20, 4 to 12, or 12 to 20 mA dc, direct or reverse action | I |
Output Signal:140 or 240 kPa; 20 or 35 psi 1.4 or 2.4 bar or kg/cm2 | 1 |
Lever Assembly Kit:For all other Valves , P25A, P50A, P110A | V |
FOXBORO定位器E69P系列介绍
Foxboro 品牌 E69P 阀门定位器直接安装在气动阀轭上，将标准直流输入信号转换为比例阀杆位置。它无需单独的转换器和单独的定位器。正如产品上的“CE”标志所表示的那样，这些阀门定位器符合适用的欧盟指令。
由于其体积小、设计紧凑、连接机构简单，E69P 型阀门定位器可以快速方便地安装在各种阀门或其他类型的气动执行机构上。
通常遇到的管线振动对 E69P 的影响很小。此外，倾斜的影响很小，允许安装阀门而无需考虑定位器的姿态。 E69P 的电流计电机中的低质量组件以及静态平衡且支撑良好的线圈使这些重要的优势成为可能。
通过选择输入、选择正向或反向作用、拆分输入范围以及标准或防爆盖的可用性，该定位器可以轻松适应各种应用。
The Foxboro brand E69P Valve Positioner, mounted directly on a pneumatic valve yoke, converts a standard direct current input signal to a proportional valve stem position. It eliminates the need for a separate converter plus a separate positioner. As symbolized by the “CE” Logo marking on the product,these valve positioners conform to the applicable European Union directives.
Because of its small size, compact design, and simple connection mechanism, the Model E69P Valve Positioner can be quickly and conveniently mounted on a wide variety of valve or other types of pneumatic actuators.
Pipe line vibration normally encountered has minimal effect upon the E69P. Also, the effects of inclination are minimal, allowing the valve to be mounted without regard for the attitude of the positioner. Low mass components, along with a statically balanced and well-supported coil in the galvanometric motor of the E69P, make these important benefits possible.
With choice of input, choice of direct or reverse action, split input ranges, and availability of standard or explosionproof covers, this positioner can be easily adapted for a wide range of applications.

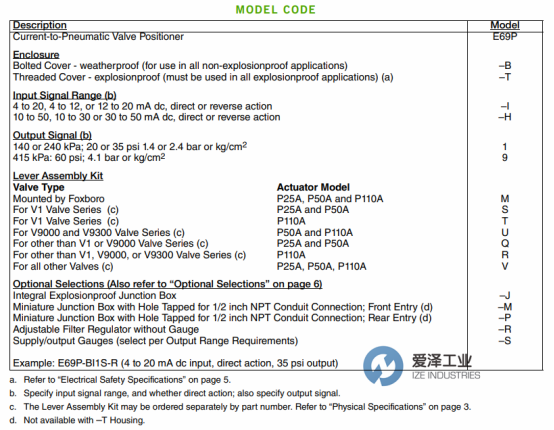

FOXBORO定位器E69P系列选型
FOXBORO定位器E69P系列其他常用型号：
FOXBORO E69P-BI1V
FOXBORO E69P-BI1S-R
FOXBORO E69P-BI1Q-S
FOXBORO E69P-BI9V
FOXBORO E69P-TI1V
FOXBORO E69P-BI1V-RS
FOXBORO E69P-BI1S-RS
FOXBORO E69P-BI1MS
FOXBORO E69P-BI1R
FOXBORO E69P-BI9M-RS
FOXBORO E69P-TI10
FOXBORO E69P-TI1V-JS
