CONTINENTAL HYORAULICS电磁阀VSD05M系列介绍
MAXIMUM OPERATING PRESSURE | P - A - B Port | Standard | 4600 ps | 320 bar | |
CSA | 4000 psi | 275 bar | |||
T Port | DC | STD | 3000 psi | 210 bar | |
AC | ALL | 2000 psi | 140 bar | ||
FLOW RATE | DC | 38 gpm | 145 lpm | ||
AC | 32 gpm | 120 lpm | |||
MOUNTING SURFACE | NFPA D05, ISO 4401-05-04-0-05 | ||||
MAXIMUM WEIGH | AC | 8.0 lbs | 3.6 kg | ||
DC | 10.6 lbs | 4.8 kg | |||
RANGE TEMPERATURES | Ambient | - 4 to +130°F | -20 to +54°C | ||
Fluid | Standard | - 4 to +180°F | -20 to +82°C | ||
CSA | -4 to +150°F | -20 to +66°C | |||
FLUID VISCOSIT | Range | 60 -1900 SUS | 10 - 400 cSt | ||
Recommended | 120 SUS | 25 cSt | |||
FLUID CONTAMINATION | ISO 4406:1999 Class 20/18/15 | ||||
CONTINENTAL HYORAULICS电磁阀VSD05M系列介绍
这些阀门符合NFPA D05和ISO 4401安装标准。它们有3路和4路样式。
所有版本均提供2位弹簧偏置、2位棘爪、2位弹簧对中和3位弹簧对中版本，可提供各种阀芯。
主要特征：
提供标准和CSA批准的版本。
流量达到38 GPM和多个阀芯选项
具有4600 PSI额定工作端口和油箱端口额定为3000 PSI
These valves conform to NFPA D05 and ISO 4401 mounting standards. They are available in both 3 way and 4 way styles.
All versions are available in 2 position spring offset, 2 position detent, 2 position spring centered and 3 position spring centered versions with a wide range of spools are available.
Key Features:
Standard and CSA approved versions are available.
Flows to 38 GPM and multiple spool options
With 4600 PSI rated work ports and the tank port is rated to 3000 PSI

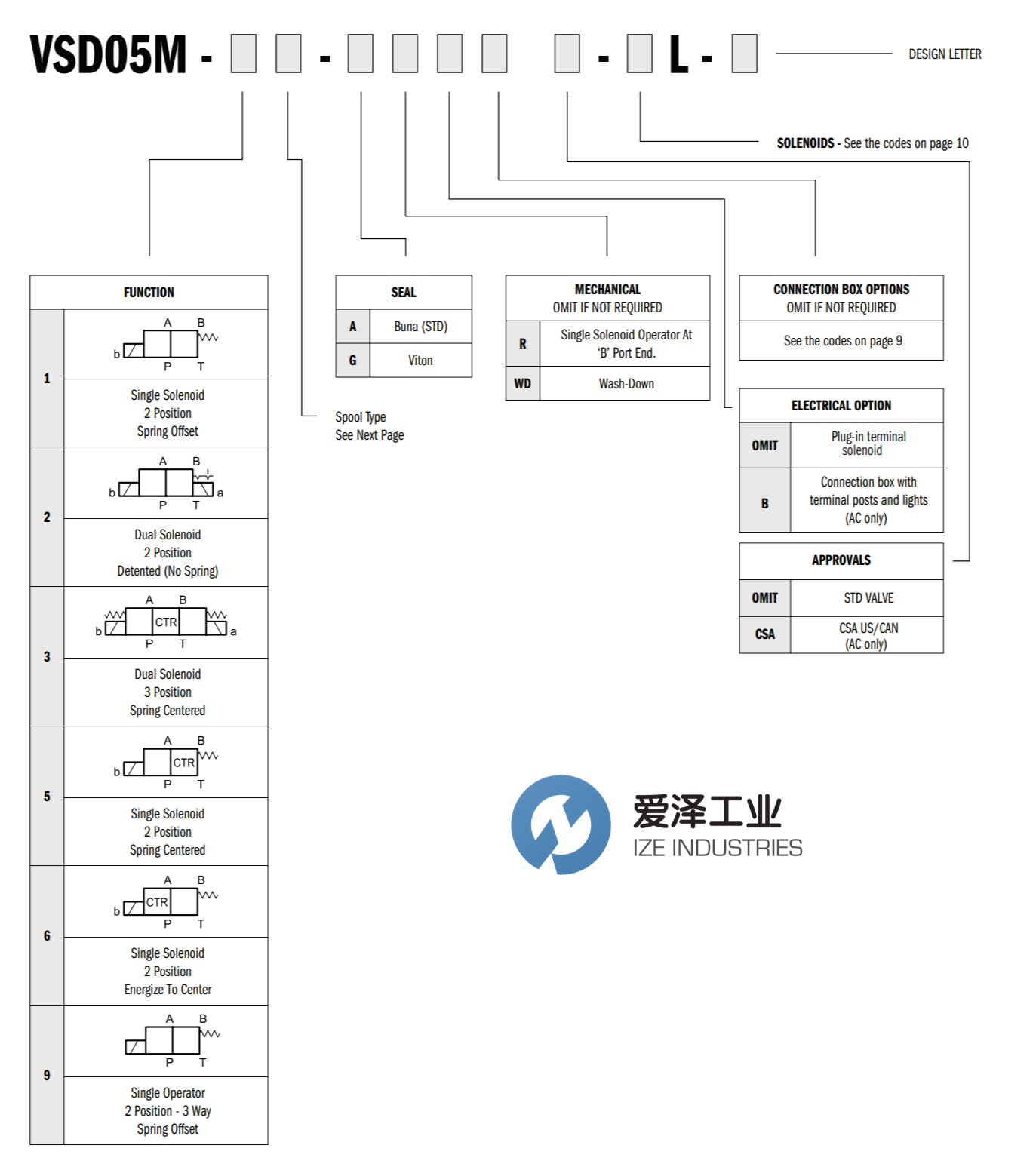

CONTINENTAL HYORAULICS电磁阀VSD05M系列选型
CONTINENTAL HYORAULICS电磁阀VSD05M系列其他常用型号：
CONTINENTAL HYORAULICS VSD05M-3A-NB-61L-A-Y5909-2
CONTINENTAL HYORAULICS VSD05M-3A-AB5A-60L-B
CONTINENTAL HYORAULICS VSD05M-3G-G-42L-A
CONTINENTAL HYORAULICS VSD05M-3F-GB-60L-B
CONTINENTAL HYORAULICS VSD05M-3A-GB-60L-B
CONTINENTAL HYORAULICS VSD05M-3F-AB-60L-B
CONTINENTAL HYORAULICS VSD05M-2A-GB-60L-B
CONTINENTAL HYORAULICS VSD05M-3L-GB-60L-A
CONTINENTAL HYORAULICS VSD05M-1A-GSWB4A-70L-A
CONTINENTAL HYORAULICS VSD05M-1A-G-33L-B
CONTINENTAL HYORAULICS VSD05M-3A-GB5H-60L-A
CONTINENTAL HYORAULICS Solenoid valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于CONTINENTAL HYORAULICS电磁阀VSD05M-3A-NB-61L-A-Y5909-2的疑问，请随时与我们电联，（021-3100 6702），我们将尽全力解决您的问题。
If you have any question for CONTINENTAL HYORAULICS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
CONTINENTAL HYORAULICS电磁阀VSD05M系列VSD05M-3A-NB-61L-A-Y5909-2技术参数及选型
