HONEYWELL变送器STD725-E1AC4AS-1-G-AHS-11S-A-00A0技术规格
STD725-E1AC4AS-1-G-AHS-11S-A-00A0 |
E:316L Stainless Steel |
1:Silicone Oil 200 |
A:None (1/4" NPTF female thread Std) |
C:Carbon Steel |
4:Dual Ended Standard Vent End Matches Head Material |
A:Teflon or PTFE (Glass Filled) |
S:Standard Static Pressure - 4500 psig (315 bar) |
1:Standard High Side Left, Low Side Right2 / Std Head Orientation |
G:NEPSI Explosion proof, Intrinsically Safe & Non-incendive |
A:Polyester Powder Coated Aluminum 1/2 NPT None |
H:4-20mA dc HART Protocol |
S:None EN, RU |
1:Standard Diagnostics |
1:Disabled High> 21.0mAdc Honeywell Std (3.8 - 20.8 mAdc) |
S:Factory Standard |
A:Standard Factory Std Single Calibration |
0:None |
0:No customer tag |
A0:No Conduit Plugs or Adapters Required |
HONEYWELL变送器STD700系列产品介绍及选型
STD700型号是SmartLine系列产品的一部分，适用于监视，控制和数据采集。这些产品采用压阻传感器技术，结合了压力传感和片上温度补偿功能，可在各种应用压力和温度范围内提供高精度，稳定性和高性能。 SmartLine系列还经过了全面测试，并与Experion PKS兼容，可提供高水平的兼容性保证和集成能力。SmartLine轻松满足压力测量应用程序最苛刻的应用程序需求。
功能：
精度高达量程的0.065％
十年内每年的稳定性高达URL的0.020％
自动静压和温度补偿
量程高达100：1
响应时间高达100ms
易于使用且直观的显示功能直观的外部零位，跨度和配置功能
板载诊断功能
集成双密封设计，基于ANSI / NFPA 70-202和ANSI / ISA 12.27.0的最高安全性
优质的过压保护
Part of the SmartLine® family of products, the STD700 models are suitable for monitoring, control and data acquisition. These products feature piezoresistive sensor technology combining pressure sensing with on chip temperature compensation capabilities providing high accuracy, stability and performance over a wide range of application pressures and temperatures. The SmartLine family is also fully tested and compliant with Experion® PKS providing the highest level of compatibility assurance and integration capabilities. SmartLine easily meets the most demanding application needs for pressure measurement applications
Best in Class Features:
Accuracies up to 0.065% of span
Stability up to 0.020% of URL per year for 10 years
Automatic static pressure & temperature compensation
Rangeability up to 100:1
Response times as fast as 100ms
Easy to use and intuitive display capabilities
Intuitive External Zero, Span and configuration capability
On-board diagnostic capabilities
Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
World class overpressure protection
HONEYWELL变送器STD700系列其他常用型号：
HONEYWELL STD720-A1AC1AS-1-0-AH0-11S-A-00A0-00-0000
HONEYWELL STD720-E1AS4AS-1-A-AHC-11S-A-00A6-F1-0000
HONEYWELL STD720-E1HC4AS-1-A-BHS-11S-B-10A0-F1-0000
HONEYWELL STD720-F1HC4AS-1-CDHC-11S-A-00A7-00-0000
HONEYWELL STD725-E1AC4AS-1-0-AHS-11C-B-11A0-F1-0000
HONEYWELL STD725-E1AC4AS-1-0-AHS-11S-A-00A0
HONEYWELL STD725-E1HS1AS-1-C-BHS-11C-B-00A0-F1
HONEYWELL STD725-E1HS2AS-1-C-AHT-11S-A-31A0-00-0000
HONEYWELL STD725-E1HS4AS-1-A-AH0-11S-B-10A0
HONEYWELL STD924-A1A-0000-HC
HONEYWELL STD725-E1AC4AS-1-G-AHS-11S-A-00A0
HONEYWELL Transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业集产品开发、设计、制造、销售、服务于一体，代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HONEYWELL变送器STD725-E1AC4AS-1-G-AHS-11S-A-00A0的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

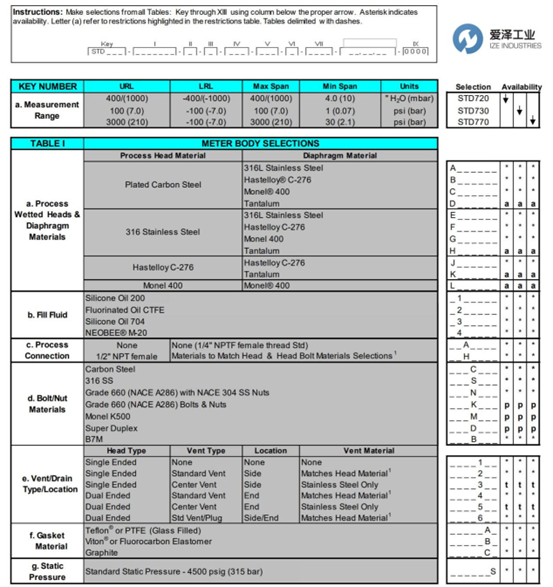

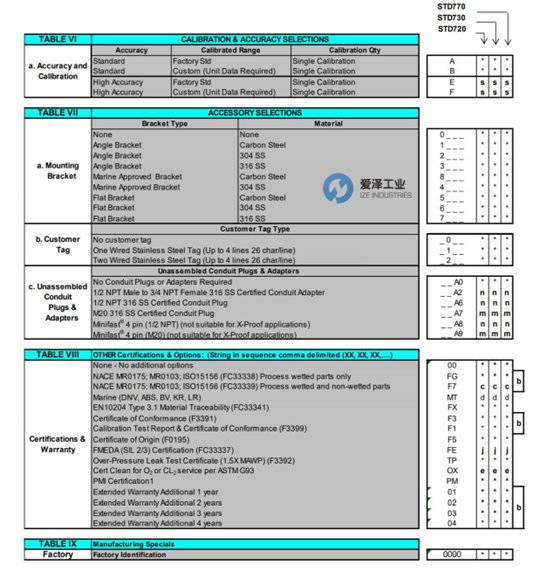

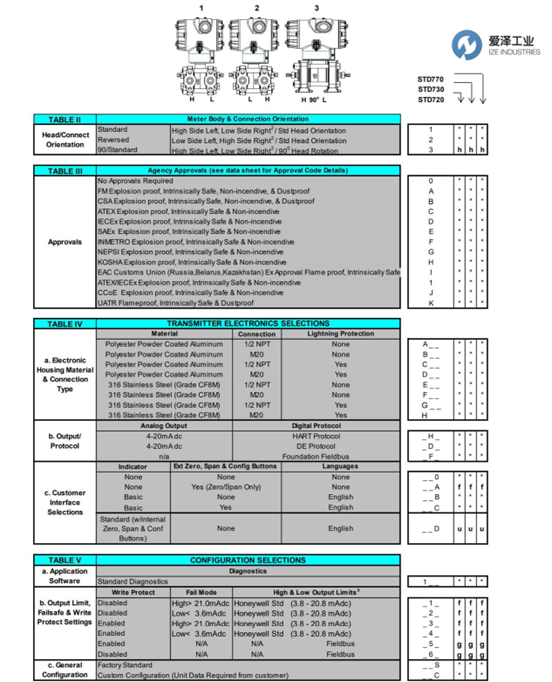

HONEYWELL变送器STD700系列STD725-E1AC4AS-1-G-AHS-11S-A-00A0技术数据及选型
