TESCOM调节器SG1系列技术参数
OPERATING PARAMETERS | |
Maximum Inlet Pressure | Cv = 0.06: 4500 psig / 310 bar |
Maximum Outlet Pressure | 15, 25, 50, 125, 250 psig |
Design Proof Pressure | 150% maximum rated |
Leakage | Internal: Bubble-tight |
Operating Temperature | PCTFE seat: -40°F to 140°F / -40°C to 60°C |
Flow Capacity | Cv = 0.06, 0.2 |
Body | 316L Stainless Steel, Nickel-Plated Brass |
Seat | PCTFE, Polyimide |
Diaphragm | 316L Stainless Steel, Neoprene |
Filter | 10 micron nominal sintered Bronze |
Seal | PTFE or Nitrile, Buna-N |
Remaining Parts | Brass, 300 Series Stainless Steel |
Connections | Inlet and outlet: 1/4" NPTF |
Cleaning | CGA 4.1 and ASTM G93 |
Weight | 2.4 lbs / 1.1 kg |
TESCOM调节器SG1系列介绍
TESCOM SG1 系列是一种紧凑、轻便的高纯度单级调节器，适用于特种气体和工业气体。 灵敏、超长寿命的金属隔膜可确保气体纯度和完整性。用户友好的型号使指定者可以选择可选的压力表、泄压阀和截止阀以及气缸连接作为调节器组件的一部分。
应用
• 医疗、制药、食品和饮料以及其他高纯度应用中的实验室和使用点气体系统
• 过程分析仪气体、金属制造以及特种和工业气瓶
TESCOM SG1 Series is a compact, lightweight high purity single-stage regulator for specialty and industrial gases. Sensitive, extra long-life metal diaphragm ensures gas purity and integrity. Userfriendly model number enables the specifier to select optional gauges, relief and shut-off valves, and cylinder connections as part of the regulator assembly.
Applications
• Laboratory and Point-of-Use Gas Systems in medical, pharmaceutical, food and beverage, and other high purity applications
• Process analyzer gases, metal fabrication and specialty and industrial gas cylinders

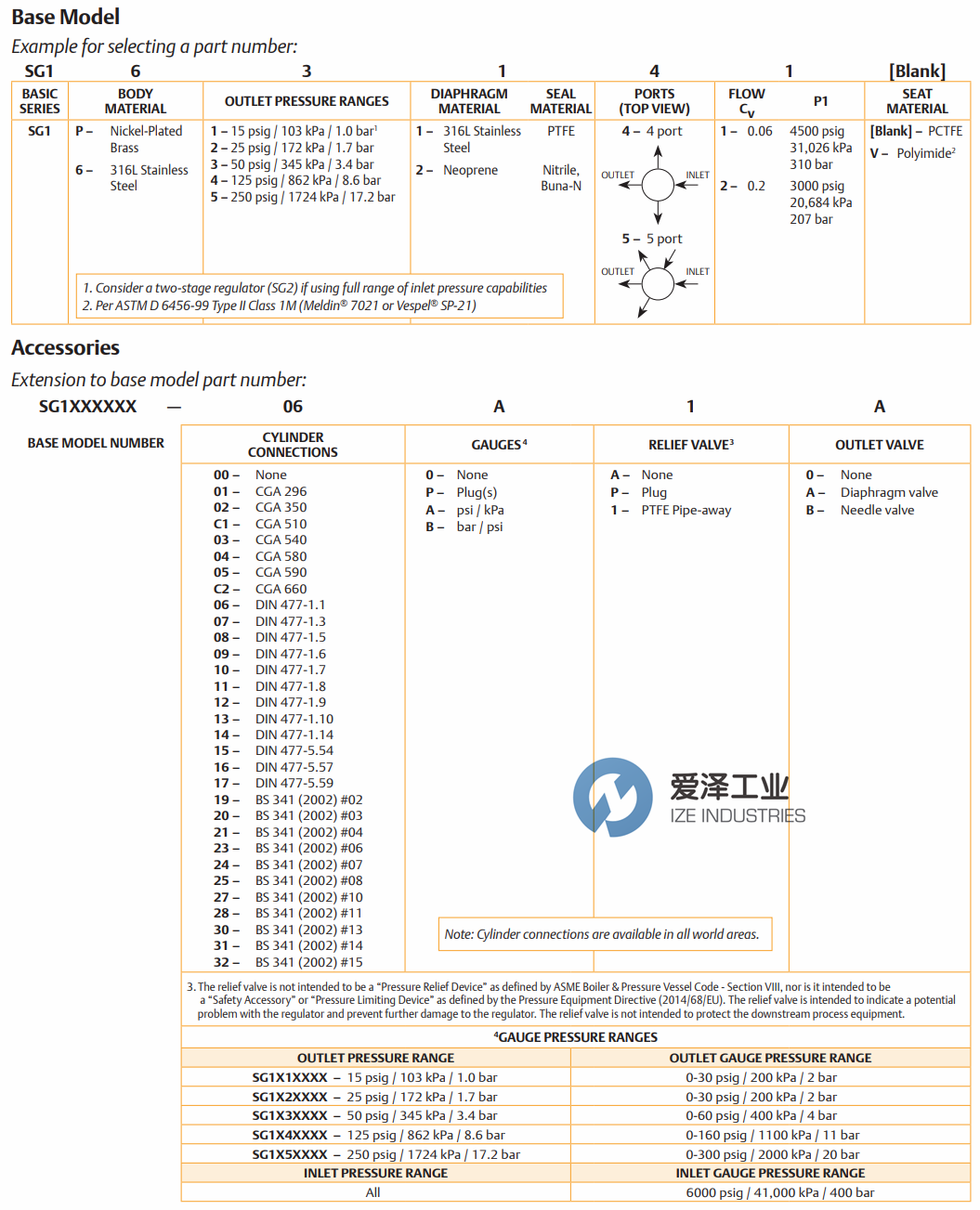

TESCOM调节器SG1系列选型
TESCOM调节器SG1系列其他常用型号：
TESCOM SG165151-21BPB
TESCOM SG1P5152-00B10
TESCOM SG164151V-00PP0
TESCOM SG1P4151-03AP0
TESCOM SG162151-05AP0
TESCOM SG1P3151-04A10
TESCOM SG1P3151-00B10
TESCOM SG165151-04APB
TESCOM SG1P2151-00BP0
TESCOM SG1P3151-00B10
TESCOM SG1P5152-000P0
