TESCOM压力调节阀SG1系列技术参数
OPERATING PARAMETERS | |
Maximum Inlet Pressure | Cv = 0.06: 4500 psig / 310 bar |
Maximum Outlet Pressure | 15, 25, 50, 125, 250 psig |
Design Proof Pressure | 150% maximum rated |
Leakage | Internal: Bubble-tight |
Operating Temperature | PCTFE seat: -40°F to 140°F / -40°C to 60°C |
Flow Capacity | Cv = 0.06, 0.2 |
MEDIA CONTACT MATERIALS | |
Body | 316L Stainless Steel, Nickel-Plated Brass |
Seat | PCTFE, Polyimide* |
Diaphragm | 316L Stainless Steel, Neoprene |
Filter | 10 micron nominal sintered Bronze |
Seal | PTFE or Nitrile, Buna-N |
Remaining Parts | Brass, 300 Series Stainless Steel |
OTHERS | |
Connections | Inlet and outlet: 1/4" NPTF |
Cleaning | CGA 4.1 and ASTM G93 |
Weight | 2.4 lbs / 1.1 kg |
TESCOM压力调节阀SG1系列介绍
TESCOM SG1 系列是一款紧凑、轻便的高纯度单级调节器,适用于特种气体和工业气体。 灵敏、超长寿命的金属膜片确保气体纯度和完整性。 对用户友好的型号使指定者能够选择可选的仪表、泄压阀和截止阀以及气缸连接作为调节器组件的一部分。
特点和优势
• 插装阀设计包含一个 10 微米过滤器,可保护调节阀座并简化维修
• 可选的氯丁橡胶隔膜为精确的压力控制提供卓越的灵敏度
TESCOM SG1 Series is a compact, lightweight high purity single-stage regulator for specialty and industrial gases. Sensitive, extra long-life metal diaphragm ensures gas purity and integrity. Userfriendly model number enables the specifier to select optional gauges, relief and shut-off valves, and cylinder connections as part of the regulator assembly.
Features and Benefits
• Cartridge valve design incorporates a 10 micron filter that protects the regulator seat and makes service simple
• Optional neoprene diaphragm provides exceptional sensitivity for precise pressure control

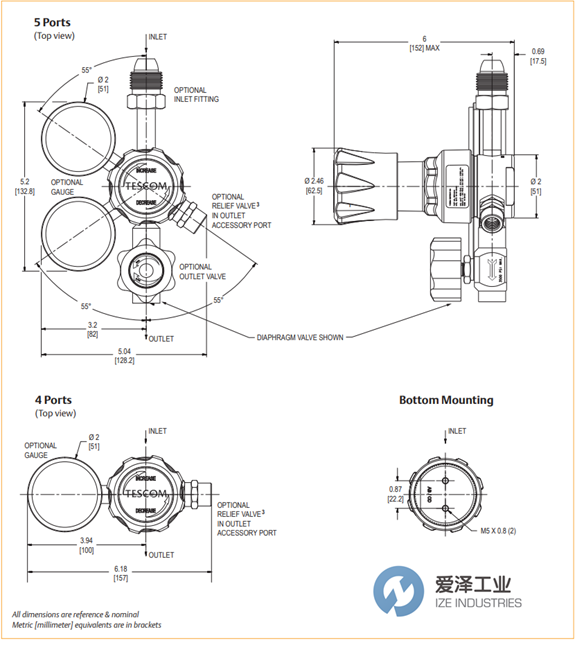

TESCOM压力调节阀SG1系列技术尺寸

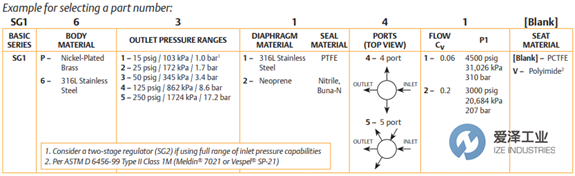

TESCOM压力调节阀SG1系列选型
TESCOM压力调节阀SG1系列其他常用型号:
TESCOM SG1P5142
TESCOM SG1P5152
TESCOM SG165142
TESCOM SG1P4142
