TESCOM调节器44-1300系列技术参数
Maximum Inlet Pressure | |
Stainless Steel Body | 4500 psig / 310 bar |
Brass Body | 3750 psig / 259 bar |
Outlet Pressure Ranges | 0-300, 0-600, 0-1000 and 0-1500 psig |
Design Proof Pressure | 150% of rated pressure |
Leakage | Bubble-tight |
Operating Temperature1 | -15°F to 220°F / -26°C to 104°C |
Flow Capacity2 | 1/4" Main Valve: Cv = 0.8 |
Media contact materials | |
Body | Brass, 303 or 316 Stainless Steel |
Seat, Main Valve | CTFE (Except: 44-13X2-XXX2, Teflon®) |
Seat, Vent Valve | |
Teflon®: | 300 and 600 psig / 20.7 and 41.4 bar outlet |
CTFE: | 1000 and 1500 psig / 69.0 and 103 bar outlet |
O-Rings | Viton-A® |
Back-up Rings | Teflon® |
Gaskets | CTFE |
Remaining Parts | 300 Series Stainless Steel, 17-4, 17-7 Stainless Steel, Teflon® and Brass |
TESCOM调节器44-1300系列介绍
TESCOM44-1300系列是一个高压、高流量减压调节器，提供了一个排气和平衡阀的设计。有圆顶式和空气负载式两种可用的选项。
• 大型活塞传感器具有极好的灵敏度
• 平衡阀设计确保下游压力稳定
• 大把手提供快速的低扭矩压力设置
• 通风是标准的
• 带有量规端口
• 圆顶和空气负荷模型（仅不通风）
• 可提供法兰末端连接件
TESCOM 44-1300 Series is a high pressure, high flow pressure reducing regulator that offers a venting and balanced valve design. Dome and air load options are available.
• Large piston sensor gives excellent sensitivity
• Balanced valve design ensures stable downstream pressure
• Large handknob provides fast low-torque pressure settings
• Venting is standard
• Available with gauge ports
• Dome and air loaded models are available(non-venting only)
• Flanged end connections available

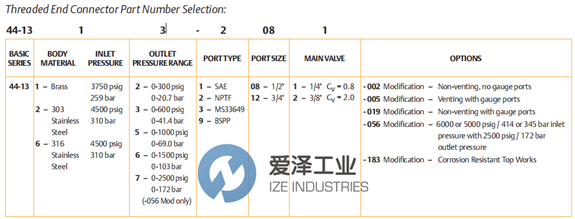

TESCOM调节器44-1300系列选型
TESCOM调节器44-1300系列其他常用型号：
TESCOM 44-1363-9162-518
TESCOM 44-1313-2081
TESCOM 44-1322-2082-005
TESCOM 44-1363-9162-147
TESCOM 44-1363-9162-508
TESCOM 44-1327-2081-056
TESCOM 44-1363-9162-147
TESCOM 44-1363-9162-469
TESCOM 44-1366-2081
TESCOM 44-1362-2081
TESCOM 44-1313-2082-005
