DANFOSS压力变送器DST140系列技术参数
Performance | |
Accuracy @ 20 °C | ≤ ±0.5% FS |
Total error band | 0 - 100 ºC: 2% |
Response time | < 2 ms |
Overload pressure | 4 × FS |
Burst pressure | 5 × FS |
Durability, P: 10-90% FS | >10 mil. cycles |
Electricl specications | |
Nom. output signal (short-circuit protected) | 4 − 20 mA |
Supply voltage [UB], polarity protected | 8 - 28 V |
Supply voltage dependency | ≤ ±0.1% FS/10 V |
Load [RL] (load connected to 0 V) | RL ≤ (UB-8V)/0.022 A |
Environmental conditions | |
Media temperature range | -20 –110 °C - (0.34*ambient) |
Ambient temperature range | -40 – 85 °C |
Storage temperature range | −50 –150 °C |
EMC - Emission | EN 61000-6-3 |
EMC Immunity up to 6 GHz | EN 61000-6-2 |
Insulation resistance | > 100 MΩ at 500 V |
Vibration resistance | Random 10 grms, 5 Hz - 2 kHz IEC 60068-2-64 |
Shock resistance | Shock 500 g / 1 ms IEC 60068 - 2 - 27 |
Enclosure with mating connector | IP67 |
Mechanical characteristics | |
Wetted parts | AISI 304L |
Weight (depending on pressure connection and electrical connection) | < 100 g |
DANFOSS压力变送器DST140系列品介绍
Danfoss传感器技术 (DST) P140 设计用于增压泵和空气压缩机等工业应用。 DST P140 源自 30 多年的 MEMS 技术经验，采用紧凑耐用的不锈钢封装，高性能。 DST P140 运行基于 ARM 的强大微控制器，提供具有竞争力的诊断功能和性能功能。
特征
• 密封介质接口（全不锈钢，全焊接）
• 适用于 OEM 应用的紧凑且具有成本效益的设计
• 卓越的抗冲击和抗振性
• 高过载和爆破压力
• 适用于恶劣电气环境的强大电子平台
The Danfoss Sensor Technology (DST) P140 is designed for use in industrial applications like Booster Pumps and Air Compressors. Drawn from over 30 years of experience with MEMS technology, the DST P140 others outstanding performance in a compact and durable stainless-steel package. Running a powerful ARM-based microcontroller, the DST P140 others diagnostic features and performance features at a competitive level.
Features
• Hermetically sealed media interface (all stainless steel, fully welded)
• Compact and cost-effective design for OEM applications
• Superior shock and vibration resistance
• High overload and burst pressure
• Robust electronics platform for harsh electrical environments

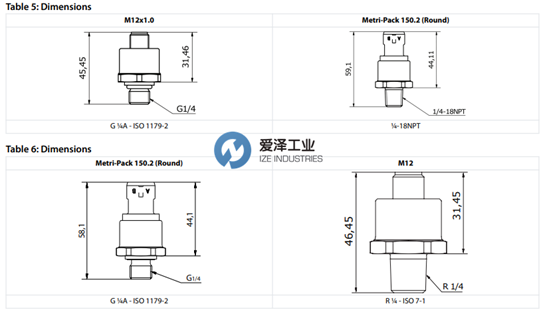

DANFOSS压力变送器DST140系列技术尺寸
DANFOSS压力变送器DST140系列其他常用型号：
DANFOSS DST140 075G1054
DANFOSS DST140 075G4035
DANFOSS DST140 075G4027
DANFOSS DST140 075G4029
DANFOSS DST140 075G4031
DANFOSS DST140 075G4033
DANFOSS DST140 075G4064
DANFOSS DST140 075G4052
DANFOSS DST140 075G4053
DANFOSS DST140 075G4054
DANFOSS DST140 075G4055
DANFOSS DST140 075G4056
DANFOSS DST140 075G4026
DANFOSS DST140 075G4028
DANFOSS DST140 075G4030
DANFOSS DST140 075G4032
DANFOSS DST140 075G4073
DANFOSS DST140 075G4074
DANFOSS pressure transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于DANFOSS压力变送器DST140 075G1054的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for DANFOSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
DANFOSS压力变送器DST140系列DST140 075G1054技术参数及尺寸
