AS-SCHNEIDER阀组W5AASA-N4TE-A规格描述

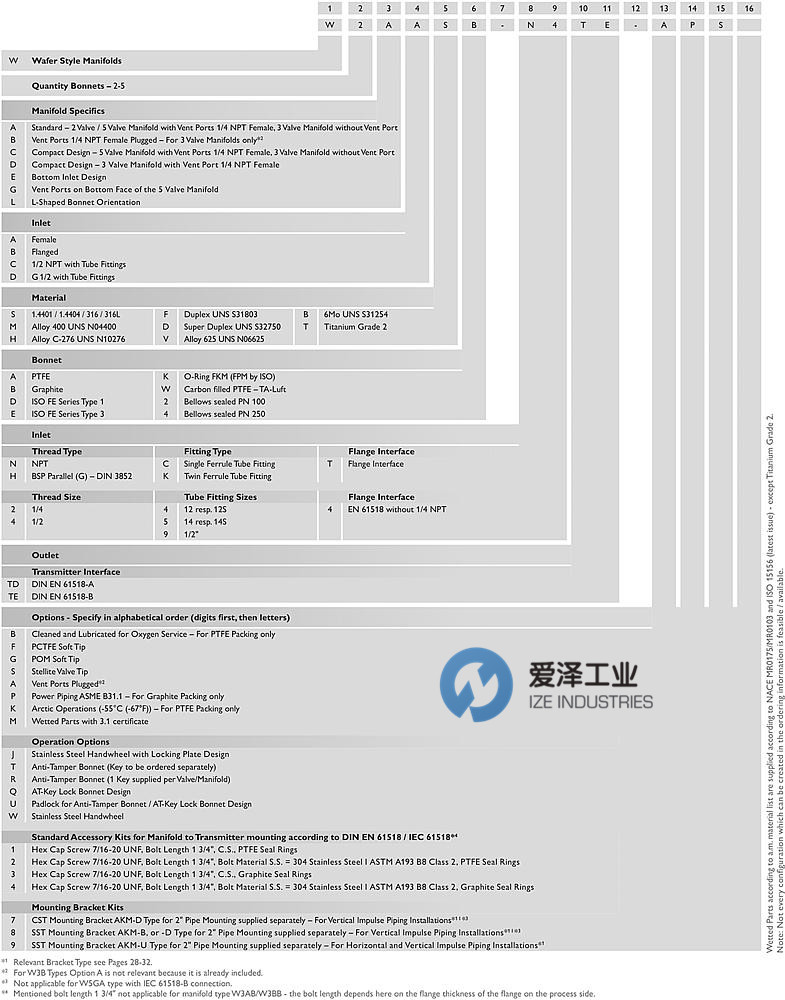

W5AASA-N4TE-A |
W:Wafer Style Manifolds |
5:Quantity Bonnets |
A:Standard – 2 Valve / 5 Valve Manifold with Vent Ports 1/4 NPT Female, 3 Valve Manifold without Vent Port |
A:Female |
S:1.4401 / 1.4404 / 316 / 316L |
A:PTFE |
N:NPT |
4:12 resp. 12S |
TE:Ausgang - Messumformeranschluss: DIN EN 61518-B |
A:Vent Ports Plugged*2 |
AS-SCHNEIDER阀组W5AA系列介绍及选型
标准歧管
AS-Schneider直接安装5阀歧管(Wafer型)设计用于直接安装到具有符合DIN EN 61518 / IEC 61518的标准法兰连接的差压变送器上。标准的通风口为1/4 NPT内螺纹。没有标准安装管塞。与IEC 61518-A设计相比,IEC 61518-B歧管设计更加紧凑。
Standard Manifolds
AS-Schneider Direct Mount 5 Valve Manifolds (Wafer Style) are designed for direct mounting to Differential Pressure Transmitters with standard flange connection in accordance with DIN EN 61518 / IEC 61518. The standard vent connection is 1/4 NPT female. Pipe plugs are not installed as standard. The IEC 61518-B manifold design is more compact compared to the IEC 61518-A design.
AS-SCHNEIDER阀组W5AA系列其他型号:
AS SCHNEIDER W5AASA-N4TE-A
AS SCHNEIDER N542.48.480.01 W5AASA-N4TD-A
AS SCHNEIDER N542.47.480.01 H5AASA-N4TD-A
AS SCHNEIDER N542.47.490.01 H5ABSA-T4TD-A
AS-SCHNEIDER Manifold NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于AS-SCHNEIDER阀组W5AASA-N4TE-A的疑问,请随时与我们电联,(021-3100 6702),我们将尽全力解决您的问题。
If you have any question for AS-SCHNEIDER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
AS-SCHNEIDER阀组W5AASA-N4TE-A介绍
