REVO执行器RD5012005000D50技术参数
Series | R - Revo Actuator |
Function | D - double acting |
Version | 5 - 90˚ actuator (012-180) |
Size | 12 |
Connection | 005 - F05, square 14mm |
Number of springs | 0 - double acting |
Execution | 00 - standard -20˚ to 80˚C |
Coating | D5 |
Misc | 0 - Standard |
REVO执行器R系列介绍
Revo 执行器主要用于操作具有 90° 行程的阀门，例如球阀、旋塞阀和蝶阀，但也适用于需要 90°、180° 或其他旋转运动的应用。 Revo 直角回转执行器可用于打开/关闭应用或控制驱动任务。
该系列包括标准型号，可适应各种扭矩额定值和法兰连接。 全面的特定选项阵容进一步扩展了应用程序功能，以提供适合几乎所有用途的配置。
在双作用版本中，通过向执行器施加压缩空气来打开和关闭阀门。 在单作用执行器上，压缩空气仅沿一个方向施加，相反方向的运动由弹簧力完成。 如果气源出现故障，这些驱动器会自动返回到安全位置。
Revo actuators are primarily used for the operation of valves with 90° travel, such as ball valves, plug valves and butterfly valves, but also find applications where rotary movements of 90°, 180° or others are needed. Revo quarter-turn actuators can be used for open/close applications or for control drive duties.
The range comprises standard models to suit a wide range of torque ratings and flange connections. A comprehensive line-up of specific options further extends the application capability to provide a configuration to suit almost every purpose.
On double-acting versions the valve is opened and closed by the application of compressed air to the actuator. On single-acting actuators compressed air is applied only in one direction, movement in the opposite direction is accomplished by spring force. These drives automatically return to a safe position in the case of a failure in the air supply.

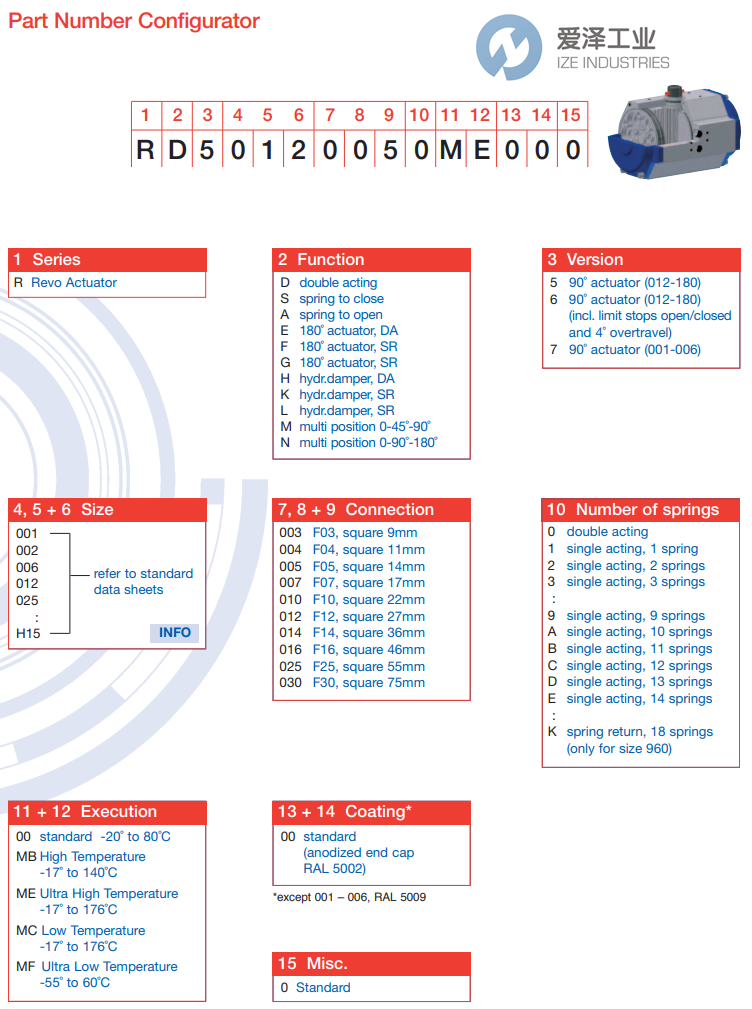

REVO执行器R系列选型
REVO执行器R系列其他常用型号：
REVO RD7006005000000
REVO RD5050007000000
REVO RD7006005000000
REVO RD5025005000000
REVO RD5050007000000
REVO RD5050007000000
REVO RD5090010000000
REVO RD7006005000000
REVO RD50120050R0000
REVO RD5050007000000
REVO RD80120050HL000
REVO RD5025005000000
REVO RS5025005800000
REVO RD502500500000
REVO RD5090010000000
REVO RD5025005000000
REVO RS50500078000
REVO RD5012005000D50
REVO ACTUATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于REVO执行器RD5012005000D50的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for REVO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
REVO执行器R系列RD5012005000D50技术参数及选型
