LOWFLOW控制阀708系列技术参数
Sizes: | 1/4", 1/2", 3/4" (DN8, DN15, DN20) |
End Connections | • Threaded – NPT, BSPT, BSPP |
Actuator | • 1/4" (DN8) – standard: 14M (14 in 2 ) multi-spring |
Diaphragm Material | • 14M – rolling (Nylon/Nitrile) |
Body/Bonnet Materials | • Carbon Steel |
Trim Materials | • Cv's 0.05 (0,04 Kv) and above: 17-4 plug, 316SS stem/seat |
Optional Trim Materials | • 316SS Stem, 17-4 plug, 416SS seat |
Actuator Materials | • Aluminum – 14M |
Stem Packing | • Standard: spring-loaded TFE/Chevron (to 450°F/232°C) |
Body/Bonnet Gasket: | RPTFE or Grafoil (matches packing mate-rial unless specified) |
Service: | steam, air, gas, oil, water, chemicals |
Shutoff | • Standard – Cv's 0.05 and greater: ANSI Class IV; Cv's 0.02 and lower: ANSI Class VI |
Ranges: | 3-15 or 6-30 psi (0,21-1,0 or 0,4-2,1 bar) split ranges are available with optional positioner |
Action | • Direct (air signal closes valve) |
Flow Characteristic: | linear (all Cv's), equal percentage (Cv >/= 0.05/0,43 Kv only); or quick opening (Cv >/= 0.05/0,43 Kv only) |
LOWFLOW控制阀708系列介绍
Mark 708的开发是为了提供部分流量服务最准确的控制：无论是工厂安装，试验台，研发设施还是用于定量，注射和排放应用等专门工艺。Cv的范围从0.00001到4.0，可提供1/4“至3/4”线径（0,000009至3,4 Kv，尺寸DN8至DN20），Mark 708提供了提供增强性能以确保精度的设计功能控制最关键的微流量应用。
The Mark 708 was developed to provide the most accurate control available for fractional flow services: whether for pilot plant installations, test stands, R & D facilities or for specialized processes such as dosing, injection and venting applications. With Cv’s ranging from 0.00001 to 4.0 available in 1/4″ through 3/4″ line sizes (0,000009 to 3,4 Kv in sizes DN8 through DN20), the Mark 708 offers design features that will provide enhanced performance to insure precision control on your most critical micro-flow applications.

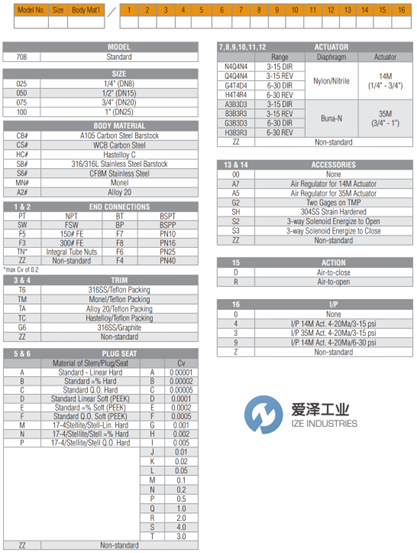

LOWFLOW控制阀708系列选型
LOWFLOW控制阀708系列其他常见型号：
LOWFLOW 708 3001588D
LOWFLOW 708 3007079A
LOWFLOW 708 3001920A
LOWFLOW 708 3006892A
LOWFLOW 708 3005261B
LOWFLOW 708 10593650
LOWFLOW 708 3009974A
LOWFLOW 708 3002171A
LOWFLOW 708 3007966B
LOWFLOW 708 1059938A
LOWFLOW 708 3001408C
LOWFLOW Valve NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于LOWFLOW控制阀708 3001588D的疑问，请随时与我们电联，（021-3100 6702），我们将尽全力解决您的问题。
If you have any question for LOWFLOW products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
LOWFLOW控制阀708系列708 3001588D介绍及选型
