AIRTROL压力调节器R-900系列技术参数
SPECIFICATIONS | |
R-900 SERIES | |
REGULATOR TYPE | Constant Bleed, Relieving |
WETTED MATERIALS | Polysulfone, Buna-N, EPDM, Acetal, Polyurethane, Stainless steel |
SUPPLY CONSUMPTION | < 9 SCIM (150 cc/min) @ 30 PSI (207 kPa) supply |
MAX SUPPLY | 150 PSI (1.03 MPa) |
TEMPERATURE RANGE | 40° – 150° F (4° – 66° C) |
EFFECT OF SUPPLY VARIATION | < 0.07 PSI (0.48 KPa) Per 10 PSI (68.9 kPa) supply change When dead-ended |
REPEATABILITY | < +/- 0.1 PSI (0.69 kPa) when supply is removed and re-applied |
SENSITIVITY | 1″ H2O (0.25 kPa) |
MAXIMUM FLOW | 2.3 cu.ft./min. (65 LPM) |
RELIEF CAPACITY | 0.5 cu.ft./min. (14 LPM) with outlet 5 PSI (34.5 kPa) above set-point |
RECOMMENDED FILTRATION | 5 micron |
R-910 SERIES | |
REGULATOR TYPE | Non-bleed, non-relieving |
REPEATABILITY | < +/- 0.25 PSI (1.72 kPa) when supply is removed and re-applied |
EFFECT OF SUPPLY VARIATION | < 0.1 PSI (0.69 kPa) Per 5 PSI (34.5 kPa) supply change |
R-920 SERIES | |
REGULATOR TYPE | Non-bleed, relieving |
SUPPLY CONSUMPTION (see note) | < 0.3 SCIM (5 cc/min.) |
REPEATABILITY | < +/- 0.25 PSI (1.72 kPa) when supply is removed and re-applied |
EFFECT OF SUPPLY VARIATION | < 0.1 PSI (0.69 kPa) per 5 PSI (34.5 kPa) supply change |
SENSITIVITY | 2″ H2O (0.5 kPa) |
AIRTROL压力调节器R-900系列介绍
R-900系列稳压器专为要求微型尺寸，轻巧和精密的应用而设计。10-32端口可容纳各种微型配件，包括Airtrol组件B-062和B-125倒钩配件。
The R-900 Series regulators are designed for applications requiring miniature size, light weight, and precision. 10-32 ports accommodate a wide range of miniature fittings, including Airtrol Components B-062 and B-125 barbed fittings.

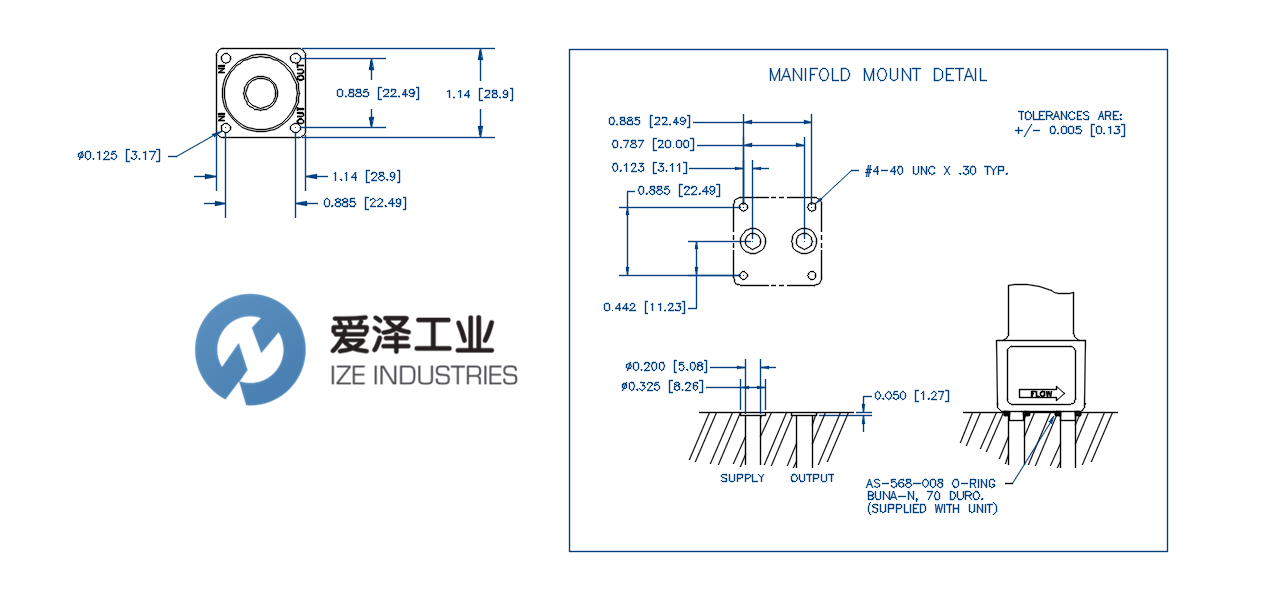

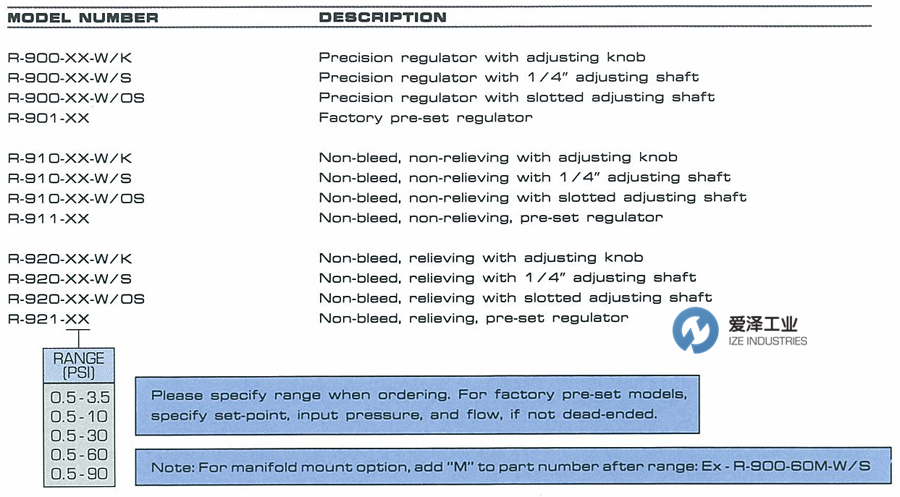

AIRTROL压力调节器R-900系列产品选型及尺寸图
AIRTROL压力调节器R-900系列其他常用型号：
AIRTROL R-900-60-W / K
AIRTROL R-900-60W / S
AIRTROL R-900-30
AIRTROL R-900-10W / OS
AIRTROL R-900-3.5-OXYW / OS
AIRTROL R-900-60W / S
AIRTROL R-900-3.5W / K
AIRTROL R-900-60W / OS
AIRTROL R-900-3.5W / S
AIRTROL R-900-30W / OS
AIRTROL R-900-10W / K
AIRTROL R-900-3.5-OXY
AIRTROL R-900-30-W / K-B85
AIRTROL R-900-3.5-OXYW / S
AIRTROL R-900-3.5W /OS
AIRTROL R-900-30W / S
AIRTROL R-900-30-W / K
AIRTROL R-900-10
AIRTROL R-900-3.5-OXY
AIRTROL MINIATURE PRECISION PRESSURE REGULATOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于AIRTROL压力调节器R-900-3.5-OXY的疑问，请随时与我们电联，（021-3100 6702），我们将尽全力解决您的问题。
If you have any question for AIRTROL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
AIRTROL压力调节器R-900系列R-900-3.5-OXY参数介绍
