Enclosure

Diecast   low copper aluminum alloy body and cover, with an epoxy powder finish. Meets   the requirements of IEC IP65 and provides the environmental protection of   NEMA Type 4.

Mounting

Valve   yoke, surface, or nominal DN 50 or 2 in pipe. Calibrated for vertical   mounting unless otherwise specified.

Approximate   Mass

2.3 kg   (5 lb)

Dimensions

Refer to   “Dimensions – Nominal” on page 7, and to Dimension Print DP 018-430

Input/Output Connections

Electrical

Tapped   for 1/2 inch conduit fitting to connect to a pair of 0.5 m (18 in) long 1.00   mm2 (18 AWG) twisted leads,

Pneumatic

1/4 NPT   for air supply and output signal

Data   Plate

Aluminum   data label fastened to housing with pressure sensitive adhesive. Includes   space for customer tag data up to a maximum of 86 characters and spaces. For   additional space, see optional Customer Tag.

OPTIONAL FEATURES

Customer   Tag

Stainless   steel tag wired to converter for customer tag data that doesn't fit on data   plate. There can be a maximum of 10 lines of data with 40 characters and   spaces per line. Specify AS Code MTS.

Split   Range Input Signal

4 to 12,   12 to 20, 10 to 30, or 30 to 50 mA dc.

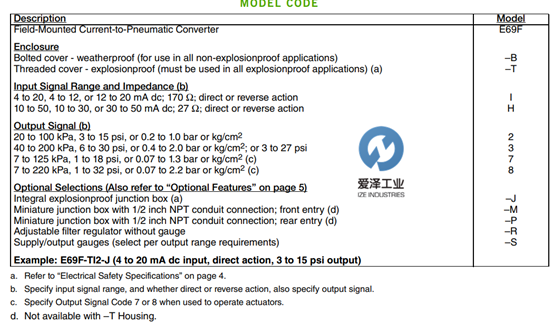

  Selectable using Model Code and specifying split range required.

Alternative   Output Signal

Refer to   Invensys Foxboro for other than standard output signals.

Explosionproof   Junction Box

Integrally   mounted to converter. Specify Model Code Suffix -J.

PG11   Trumpet Type Cable Connection

For use   with, and assembled to explosionproof (-J) junction box specified above. Also   available without (-J) junction box for non-explosionproof applications. Not   offered with Electrical Certification Specifications CS–E/CD–A and   CS–E/FD–A.Specify AS Code PG–11.

Adjustable   Filter Regulator

Provided   without gauge. Specify Model Code Suffix -R.

Supply   (Input) and Output Pressure Gauges

Must be   selected per output range requirements. Integrally mounted to converter.   Specify Model Code Suffix -S.

Miniature   Junction Box

Enclosure   size is approximately 64 x 58 x 33 mm (2.5 x 2.3 x 1.3 in). Designed to meet   the requirements of IEC IP65 and provide the environmental protection of NEMA   Type 4. Provided with 1/2 inch NPT conduit connection, 20 mm (M20) threaded   hole, or PG11 or PG13.5 trumpet type cable connections. These connections are   located for either front or rear cable entry. This junction box is not   available for explosionproof applications. Junction box with 1/2 inch conduit   connection for front entry is optional selection -M, and with 1/2 NPT conduit   connection for rear entry is optional selection -P
