NORGREN过滤调节器B72G-2GK-AL3-RMN技术参数
Technical Details | |
Medium | Compressed air |
Operating Temperature | -34 ... 50 °C, 29 ... 122 °F |
Port Size | G1/4 |
Drain Type | Automatic |
Gauge Port | Rc1/8 |
Filter Element | 40 μm |
Adjustment | Knob |
Maximum Inlet Pressure | 10 bar, 145 psi |
Outlet Pressure Adjustment | 0.3 ... 10 bar, 4 ... 145 psi |
Relieving / Non Relieving | Relieving |
Flow | 38 dm3/sec, 81 scfm |
Materials - Adjusting Knob | Acetal |
Materials - Body | Zinc alloy |
Materials - Bonnet | Acetal |
Materials - Bowl | Polycarbonate (PC) |
Materials - Elastomers | Chloroprene rubber (CR), Nitrile rubber (NBR) |
Materials - Filter Element | Polypropylene (PP) |
Dimensions - Height | 49 mm |
Dimensions - Length | 214 mm |
Dimensions - Width | 51 mm |
Weight | 0.52 kg |
NORGREN过滤调节器B72G-2GK-AL3-RMN介绍
Excelon 过滤器/调压器，G1/4，40µm，0.3-10 bar，自动排空，无压力表
Excelon的设计允许与其他Excelon产品进行在线安装或模块化安装。
高效去除水和颗粒
快拆式卡口碗
带防篡改附件的按压式锁定调节旋钮
Excelon filter/regulator, G1/4, 40µm, 0.3-10 bar, automatic drain, without gauge
Excelon design allows in-line installation or modular installation with other Excelon products
High efficiency water and particle removal
Quick release bayonet bowl
Push to lock adjusting knob with tamper evident accessory

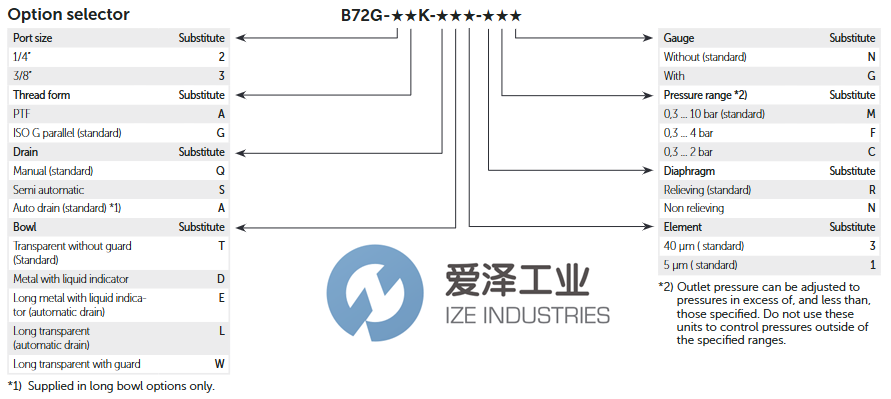

NORGREN过滤调节器B72G系列选型
NORGREN过滤调节器B72G系列其他常用型号：
NORGREN B72G-2GK-AL3-RMN
NORGREN B72G-2GK-QT3-RMN
NORGREN B72G-3GK-QT3-RMN
NORGREN B72G-2GK-QT1-RMN
NORGREN B72G 3GK-QT1-RMN
NORGREN B72G-3GK-AL3-RMN
NORGREN B72G-2GK-AL1-RMN
NORGREN B72G-3GK-AL1-RMN
NORGREN filter NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于NORGREN过滤调节器B72G-2GK-AL3-RMN的疑问，请随时致电我们，爱泽工业（021-31006702）。我们将尽全力解决您的问题。
If you have any question for NORGREN products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
NORGREN过滤调节器B72G系列B72G-2GK-AL3-RMN技术参数及介绍
