规格描述

PARKER减压阀R4R06-593-31-B1 026-27026-0技术参数

Technical Specifications
Port Connection	NG25 / CETOP 08
Mounting Type	Subplate
Maximum Operating Pressure	Port A, B, X 350 bar; port Y depressurized
Operation Type	Pilot
Actuation Type	Manual
Pressure Control Range	210 bar
Pressure Adjustment Control Type	Acorn nut with lead seal
Weight	4.5 kg
Product Series	Pressure Valve
Pilot Inlet / Drain Locations	Internal, drain external from Y
Seal Material:	NBR
Maximum Operating Pressure	350 bar Ports A, B, X, 0 bar Port Y depressurized
Maximum Operating Temperature	60 °C
Minimum Operating Temperature	-20 °C
Seal Material	NBR
Flow Rate	350 L/min
Maximum Pressure Setting	210 bar
Body Material	Cast Iron

产品介绍

爱泽工业（ize-industries）并不是本网站所列所有产品的授权代理商或经销商。本网站使用的所有产品名称，商标，品牌等均属于各自品牌厂家所有。本网站在产品或图片描述中，出现具有这些名称，商标，品牌等信息的产品仅用于识别目的，并非旨在表明任何与持有者的从属及授权关系。

PARKER减压阀R4R*P2 系列介绍

作为用途广泛的底板安装式先导式减压阀，R4R系列手动调节型和R4R*P2系列比例电磁调节型减压阀可提供高流量并确保液压系统二次侧压力恒定。二次侧压力不受一次侧压力的影响，可降至设定压力。为避免执行器意外运动，阀门通常处于关闭状态。R4R*P2系列还配备比例电磁先导级和插装式主级。与PCD00A-400数字放大器模块配合使用可实现最佳性能。

As versatile pilot operated pressure reducing valves for subplate mounting, Parker's series R4R with manual adjustment and series R4R*P2 with proportional solenoid adjustment provide high flow and ensure a constant pressure in the secondary part of the hydraulic system. Independent of the primary pressure, the secondary pressure is reduced to the pressure setting. In order to avoid unintended motion of the actuator, the valves are normally closed.

Series R4R*P2 has additionally a proportional solenoid operated pilot stage and a cartridge main stage. The optimum performance can be achieved in combination with the digital amplifier module PCD00A-400.

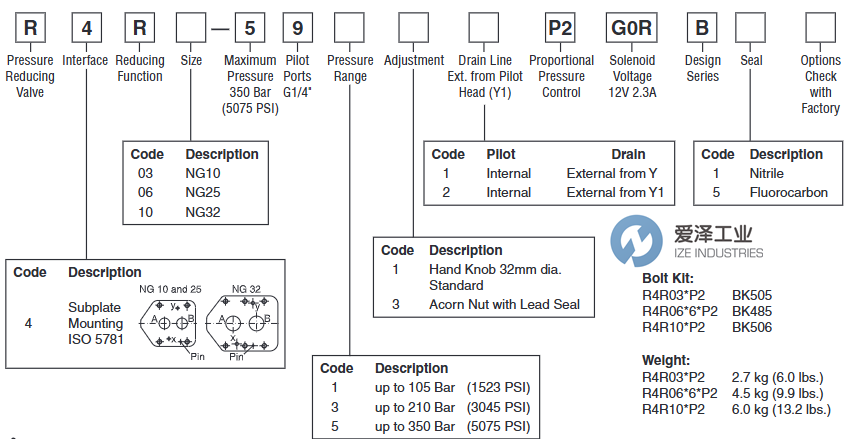

PARKER减压阀R4R*P2 系列选型

PARKER减压阀R4R06-593-31-B1 026-27026-0爱泽工业 izeindustries.png

PARKER减压阀R4R*P2 系列其他常用型号：

PARKER R4R06-59331B1 026-27026-0

PARKER R4R10-59331B1 026-70828-0

PARKER R4R10-59331B5 026-70828-5

PARKER R4R03-59332B1 026-62632-0

PARKER R4R03-59331B5 026-42176-5

PARKER R4R03-59331B1 026-42176-0

PARKER R4R10-59541B1 026-38326-0

PARKER R4R06-59331B5 026-27026-5

PARKER R4R03-59132B1 026-22897-0

PARKER R4R06-59112B1 026-22872-0

PARKER R4R03-59131B1 026-22799-0

PARKER pressure reducing valve NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于PARKER减压阀R4R06-593-31-B1 026-27026-0的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。

If you have any question for PARKER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

PARKER减压阀R4R*P2 系列R4R06-593-31-B1 026-27026-0技术参数及介绍
