SIEMENS执行器SQN3/SQN4系列技术参数
General actuator data | |
Actuator | |
Mains voltage | AC 220 V –15 %...AC 240 V +10 % AC 110 V –15 %...AC 110 V +10 % |
Mains frequency | 50...60 Hz ±6 % |
Type of motor | synchronous motor |
Power consumption | 6.5 VA |
Angular position | max. 160° |
Mounting position | optional |
Degree of protection | IP 40 to DIN 40050, provided adequate cable entries and screws are used |
Cable entry | suited for 1 x Pg9 and 1 x Pg11, no locknut required |
Cable connections | screw terminals for wires having a crosssectional area of 0.5 to 2.5 mm² |
Ferrules | matching the dia. of the stranded wire |
Running times | 4.5...120 s for 90° |
Coupling | drive shaft / geartrain by means of a pin |
Weight (on average) | approx. 800 g |
End and auxiliary switches | |
Number of end switches | 2 |
Number of auxiliary switches | 1...3 |
Actuation | via camshaft |
Switching voltage | AC 24...250 V |
Terminal rating at cos = 0.9: | under load ON, with no load OFF |
Adjustment of cams in increments of | 1° |
SIEMENS执行器SQN系列介绍
用于空气阻尼器或用于中小容量燃油或燃气燃烧器的燃料/空气比例控制的电动执行器。
• 用于集成电位器的版本
• 运行时间从 4.5 秒到 120 秒
• 所有版本均具有：
– 辅助开关和集成继电器（可选）
– 可分离的齿轮系
– 内部和外部位置指示
– 易于调节的末端开关和辅助开关
SQN3... / SQN4... 和本数据表旨在供将执行器集成到其产品中的 OEM 使用！
Electromotoric actuators for air dampers or for fuel / air ratio control with oil or gas burners of small to medium capacity.
• Versions for integrating a potentiometer
• Running times from 4.5 to 120 seconds
• All versions feature:
– Auxiliary switches and integrated relays (optional)
– Geartrains which can be disengaged
– Internal and external position indication
– Easily adjustable end and auxiliary switches
The SQN3... / SQN4... and this Data Sheet are intended for use by OEMs which integrate the actuators in their products!
SIEMENS执行器SQN系列选型
SIEMENS执行器SQN系列其他常用型号：

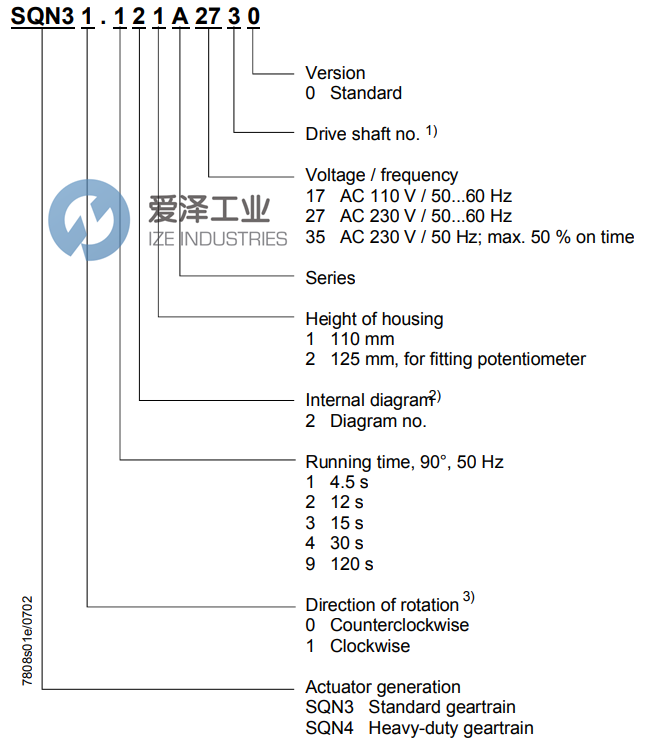

SIEMENS SQN31.121A2760
