PNEUMAX电磁阀2411.52.00.35.08技术参数
Operational characteristics | |
Fluid | Filtered air. No lubrication needed, if applied it shall be continuous |
Max working pressure (bar) | 10 |
Maximum piloting pressure (bar) | 1.5 |
Temperature °C | -5 ÷ +50 |
Flow rate at 6 bar with Δp=1 (Nl/min) | 800 |
Orifice size (mm) | 7 |
Pilot ports size | M5 |
Working ports size | G1/4" |
Version | Solenoid-Solenoid |
Voltage | 24V DC 1W |
PNEUMAX电磁阀2400系列介绍
该电磁阀系列的开发是为了满足制造领域已使用的电子控制气动系统和/或串行控制系统的要求。
它们被设计为易于组装成组或歧管，并包括整体电气连接，以便于简单、快速地集成到控制系统中。
2400系列包括一系列产品，根据18mm的机身尺寸分为“LINE”、“FLAT”和 “VDMA”3种类型。
10毫米。和18毫米。24 VDC 系列阀门包括一系列用于生产带有 1 个集成电气连接的歧管阀门组件的配件。
为了灵活性，模块有两个或四个站型号可供选择，并提供 iP40 或 iP65 环境保护。
This solenoid valves series has been developed to meet requirements for electronically controlled pneumatic systems and / or serial control systems already used in all manufacturing sectors.
They have been designed to be easily assembled into groups or manifolds and include integral electrical connection to facilitate simple and speedy integration into a control system.
The 2400 series comprises a range of products classified according to the body size of 18mm divided into 3 types “LINE”, “FLAT” and “VDMA”.
The 10mm. and 18 mm. 24 VDC range of valves includes a range of accessories for the production of manifolded valve assemblies with 1 integral electrical connections.
Modules are available in two or four station variants for flexibility and are supplied to iP40 or alternatively iP65 environmental protection.

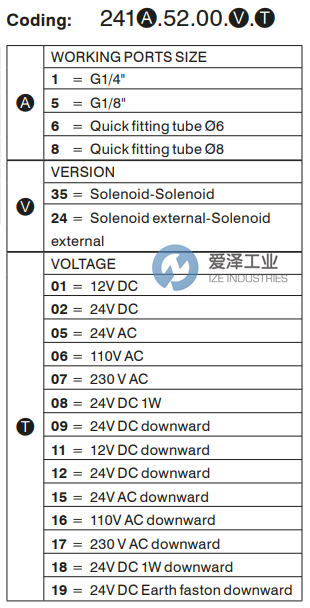

PNEUMAX电磁阀241A.52.00.V.T系列选型
PNEUMAX电磁阀2400系列其他常用型号：
PNEUMAX 2411.52.00.17
PNEUMAX 2411.52.00.39.12
PNEUMAX 2411.52.00.35.18
PNEUMAX 2411.52.00.36.02
PNEUMAX 2411.53.31.35.07
PNEUMAX 2411.52.00.39.09
PNEUMAX 2411.52.00.35.06
PNEUMAX 2411.53.32.18
PNEUMAX 2411.52.00.36.09
PNEUMAX 2411.52.00.35.08
PNEUMAX SOLENOID VALVES NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于PNEUMAX电磁阀2411.52.00.35.08的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for PNEUMAX products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
