RNA控制单元SRC-B250-2R技术参数
Type | SRC B 250-2* | |
h = Drive unit height/Top casting | 218 | |
」= Drive unit diameter | 290 | |
K = Pitch between mountings/no. of bores | 220/3 | |
L = Thread dimensions | M8 | |
M = Bowl fxing | M6 8x45° | |
N = Shoulder diameter | 165 | |
G = Bolt circle (Bowl fastening) | 186 | |
Drive unit weight [kg] | 40 | |
Rating in amps [A] | 2,6 | |
Length of connection cable* [m] | 2,5 | |
Vibration frequency | 100Hz 6000 min | |
Nominal voltages (avalable onrequest with 220V) | 200V 50Hz | |
Execution standard | CE | |
Protective casing | IP54 | |
Protective casing (special painting on request) | Steel, paintedRAL7035 ightgrey |
RNA控制单元其他常用型号:
RNA SRC-B250-2R
RNA SRC-N 63-2
RNA SRC-N 100-2
RNA SRC-N 160-2
RNA SRC-N 200-2
RNA SRC-B 200-2
RNA SRC-N 250-2
RNA SRC-B 250-2
RNA SRC-N 400-2
RNA SRHL 400-2
RNA CONTROLLER NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于RNA控制单元SRC-B250-2R的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for RNA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

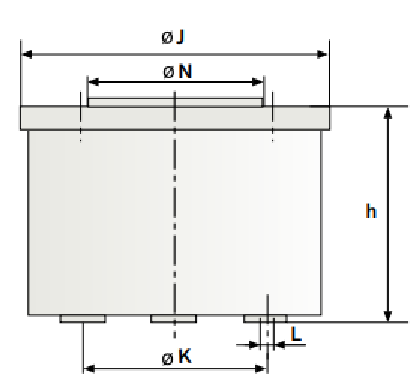

RNA控制单元SRC-B250-2R技术参数及尺寸
