AS-SCHNEIDER阀组SAFMSA-N4N4-AH技术参数
Code | SAFMSA-N4N4-AH |
Type | S - Block & Bleed Manifolds |
Vent Connection | A - 1/4 NPT Female |
Inlet | F - Female |
Outlet | M - Male |
Material | S - 1.4401 / 1.4404 / 316 / 316L |
Bonnet | A - PTFE |
Inlet, ThreadType | N - NPT |
Metric Size | 4 - M 20x1.5 |
Outlet, Male / Female Thread Sizes | N4 - 1/2 NPT |
Options - Specify in alphabetical order (digits first, then letters) | A - Vent Ports Pugged |
AS-SCHNEIDER阀组S系列介绍
AS-Schneider截断和排放歧管设计用于安装到压力仪表(变送器、压力表和开关)。阀头单元的创新设计提供了较长的使用寿命和平稳、低扭矩的操作。AS-Schneider 截断和泄放歧管的标准额定压力为 420 bar (6,092 psi),但也可额定压力为 689 bar (10,000 psi)。AS-Schneider 还提供用于酸性气体应用的阀组(根据 NACE MR0175/MR0103 和 ISO 15156)、用于氧气应用的脱脂和润滑以及用于无组织排放应用的阀组。
AS-Schneider Block & Bleed Manifolds are designed for mounting to pressure instruments (transmitters, gauges and switches). The innovative design of the valve head units gives long service life and a smooth, low-torque operation. The AS-Schneider Block & Bleed Manifolds, as standard, are rated to 420 bar (6,092 psi), but can be rated at 689 bar (10,000 psi). AS-Schneider also provides the manifolds for sour gas service (acc. to NACE MR0175/MR0103 and ISO 15156), degreased and lubricated for oxygen service as well as manifolds for fugitive emission applications.

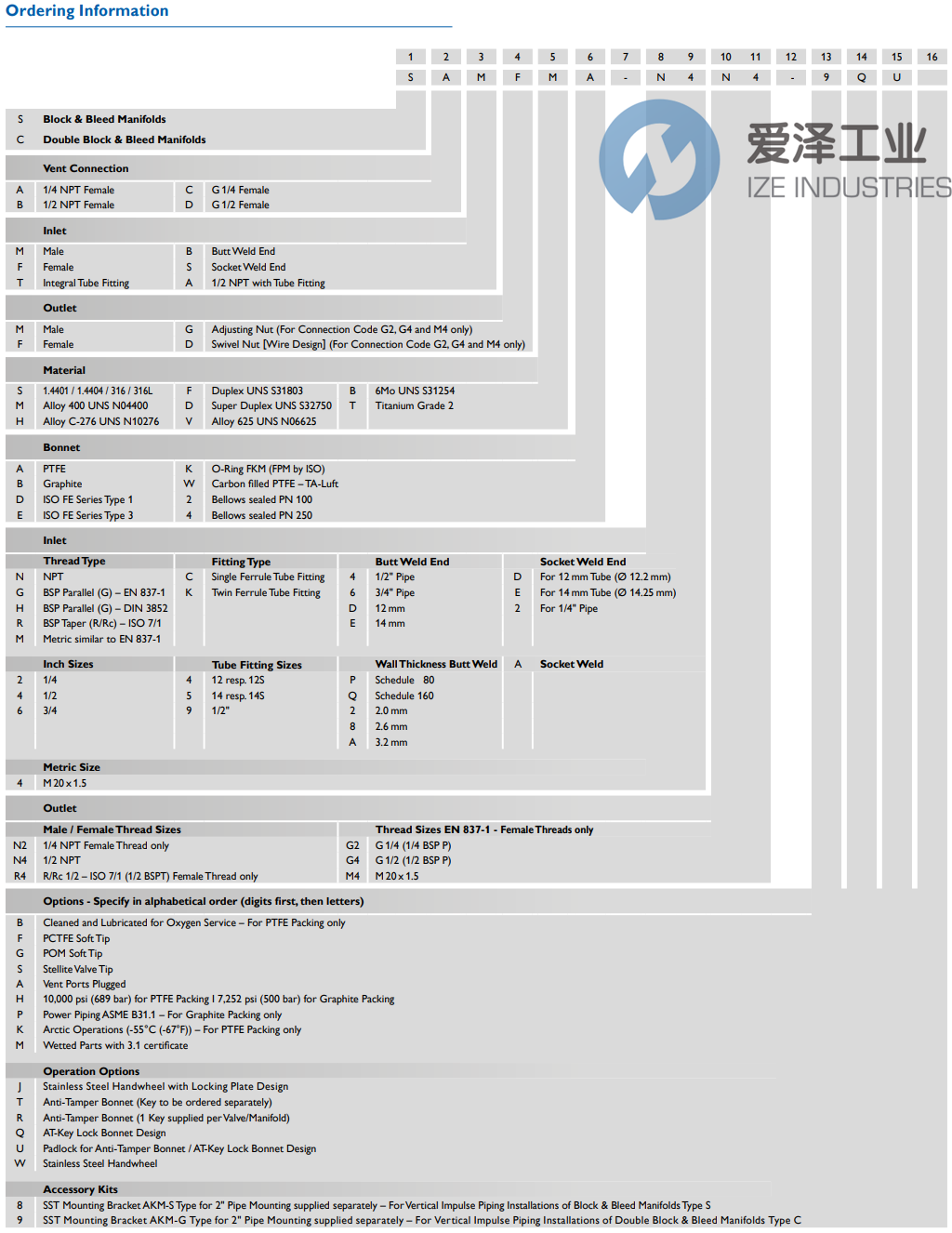

AS-SCHNEIDER阀组S系列选型
AS-SCHNEIDER阀组S系列其他常用型号:
AS-SCHNEIDER SAMFSA-N4N4-A
AS-SCHNEIDER SAMMSA-N4N4-A
AS-SCHNEIDER SAFFSA-N4N4-A
AS-SCHNEIDER SAFMSA-N4N4-A
AS-SCHNEIDER SAFMSA-N4N4-AH
