ATOS驱动器E-MI-AC系列技术参数
MAIN CHARACTERISTICS | |
Power supply | Nominal: +24 VDC Rectified and filtered: VAMS = 21 ÷ 33 VMAX (ripple max 10 % VPP) |
Max power consumption | 50 W |
Current supplied to solenoid | IMAX= 2,7 A type PWM square wave (with solenoid type ZO(R)-A with resistance 3,2 Ω) |
Nominal reference signal (factory preset) | 0 ÷ 10 VDC |
Reference signal variation range (scale adjustment) | 0 ÷ 10 VDC (0 ÷ 5 VMIN) (0 ÷ 20 mA for current signal) |
Input signal impedence | Voltage signal Ri > 50 kΩ (Ri = 250 2 for current signal) |
Potentiometers supply | +5 V/10 mA at contact 3 |
Ramp time | 10 sec. max (0 ÷ 10 V of reference signal) |
Format | Box equipped with DIN 43650-IP65 plug; VDE 0110 wired on solenoid |
Operating temperature | 0 ÷ +50 °C (storage -20 ÷ +70 °C) |
Mass | 190 g |
Additional characteristics | Outputs to solenoids protected against accidental short circuits |
Compliance | CE according to EMC directive 2014/30/EU (Immunity: EN 61000-6-2; Emission: EN 61000-6-4) |
Connections | 7 contacts terminal strip |
Recommended wiring cable | LIYCY shielded cables: 0,5 mm² up to 1,0 mm² (20 AWG-18 AWG) |
ATOS驱动器E-MI-AC系列介绍
E-MI-AC 模拟驱动器无需压力或 LVDT 位置传感器即可控制 Atos 比例阀电磁阀的电流,根据电子参考信号调节阀芯位置、流量或压力。
特征:
• 通过电位器进行偏置和比例调节
• 对称(标准)或不对称(/RR 选项)上升和下降斜坡发生器
• 工厂预设
• 铝制箱体,防护等级IP65
• 输入和输出线上的电子滤波器
• 符合 EMC 指令的 CE 标志
E-MI-AC Analog drivers control the current to the solenoid of Atos proportional valves without pressure or LVDT position transducer, regulating the spool position, the flow or the pressure according to the electronic reference signal.
Features:
• bias and scale regulations by potentiometers
• symmetrical (standard) or dissymmetrical (/RR option) rising and falling ramp generator
• factory pre-set
• alluminium box with IP65 protection degree
• electronic filters on input and output lines
• CE mark according to EMC directive

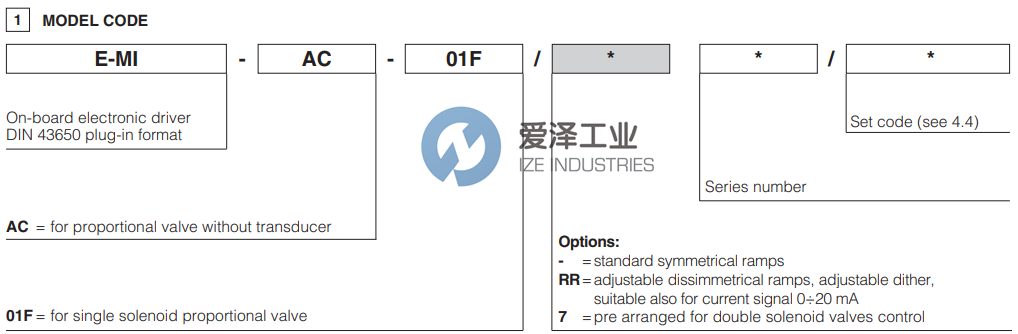

ATOS驱动器E-MI-AC系列选型
ATOS驱动器E-MI-AC系列其他常用型号:
ATOS E-MI-AC-01F
ATOS E-MI-AC-01F-11/2
ATOS E-MI-AC-01F 20-1/3/6
ATOS E-MI-AC-01F 21/2
ATOS E-MI-AC-01F/2
ATOS E-MI-AC-01F/RR
ATOS E-MI-AC-01F/RR 21 / 2
