WESTLOCK阀门控制器3347ABYN00022AAA AR1技术参数
Housing | 33 = 3300 Series = Intrinsically Safe |
Cover style | 4 = Westlock’s Standard Beacon: 90degree 1/4 turn |
Switch type | 7 = Pepperl & Fuchs Proximity Sensors |
Material | A = Aluminium Enclosure |
Beacon type and colour | BY = Black/Yellow Beacon colour – English Language |
Drive shaft type | N = Namur Shaft |
Ancillary options | 000 = No Special Features |
Switch/sensor quantity | 2 = 2x Sensors |
Conduit entries supplied | 2 = 2x Conduits |
Unit specification | AAA = Standard Build (M20 Conduits with NJ2-V3-N Sensors) |
Certification | A = ATEX |
Revision | R1 = Internal revision |
WESTLOCK阀门控制器3347ABYN00022AAA AR1产品介绍
3300 系列，铝制外壳，黑色/黄色信标指示器，Namur 轴，2 x M20 导管入口，2 x Pepperl & Fuchs NJ2-V3-N 感应式接近传感器，预接线至 8 点蓝色端子排。装置 ATEX / IECEx 双重认证本质安全 Ex II 1 GD – Exia IIC T6
3347ABYN00022AAA-AR1 Westlock Controls AccuTrak, 3300 Series, Aluminium Enclosure, Black / Yellow Beacon Indicator, Namur Shaft, 2 x M20 Conduit Entries, 2 x Pepperl & Fuchs NJ2-V3-N Inductive Proximity Sensors pre-wired to 8 point Blue Terminal Strip. Unit ATEX / IECEx Dual Certified Intrinsically Safe Ex II 1 G D – Exia IIC T6

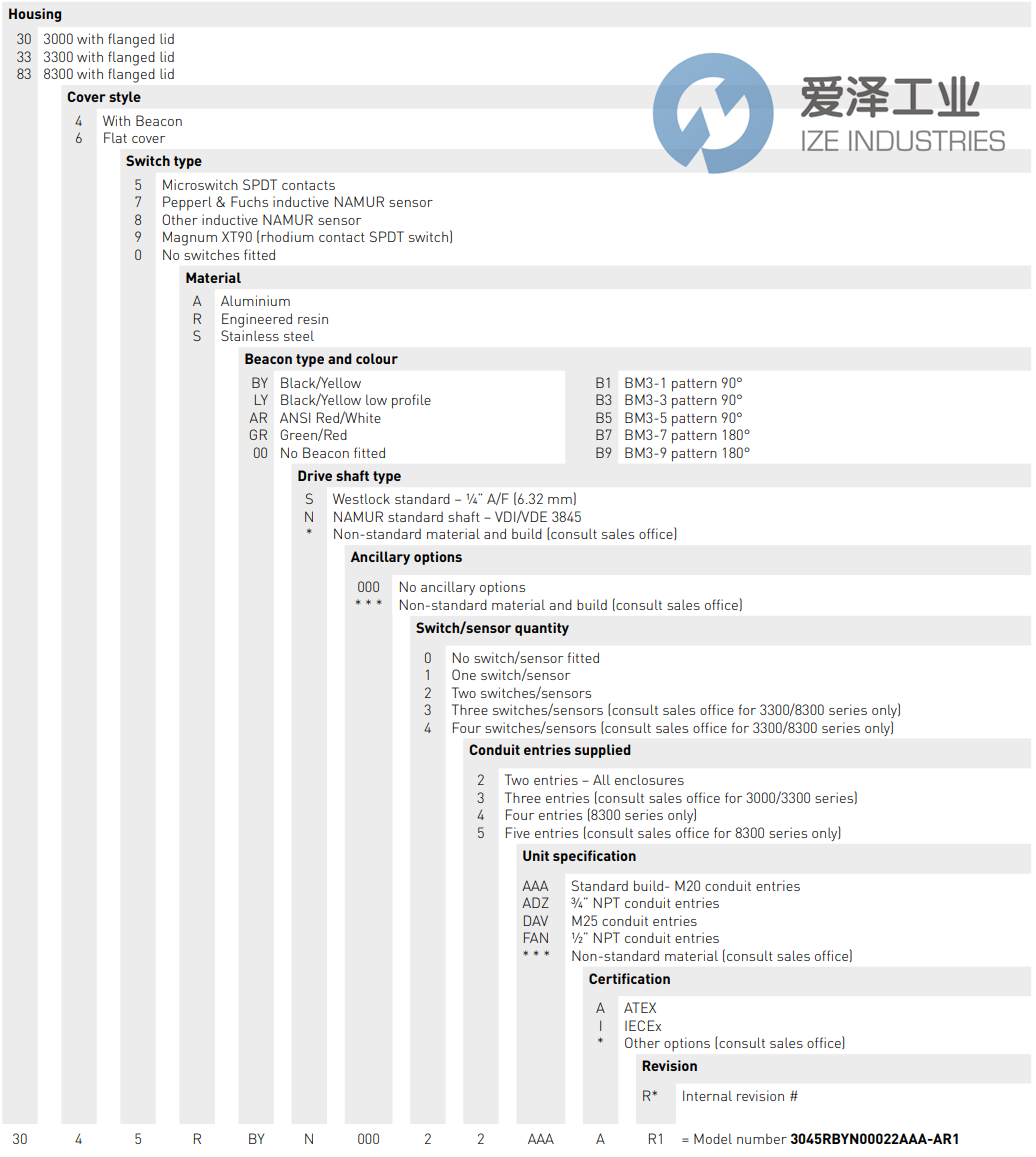

WESTLOCK阀门控制器3300系列选型
WESTLOCK阀门控制器3300系列其他常用型号：
WESTLOCK 3347ABYN00022AAA-AR1
WESTLOCK 3347SBYS00022AAA-AR1
WESTLOCK 3347SBYS00022AAA-AR1
WESTLOCK 3347RBYN00022AAA-AR1
WESTLOCK 3347RBYN00022AAA-AR1
WESTLOCK 3347SBYN00022AAA-AR1
WESTLOCK 3347SBYN00022AAA-AR1
WESTLOCK ROTARY POSITION MONITORS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于WESTLOCK阀门控制器3347ABYN00022AAA AR1的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for WESTLOCK products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
WESTLOCK阀门控制器3300系列3347ABYN00022AAA AR1技术参数及选型
