Housing Type

DIN Rail Mounting

Input Type of Sensing Edge

3-Wire

Outputs

Relay NCC

Additional Outputs

Signalling Output

Supply Voltage

24 V DC

Operation Temperature

+5 °C to +55 °C (41 °F to 131 °F)

Weight

0.2 kg

Housing Material

Polyethylene

Protection Class

Housing IP40, Terminal Block IP20

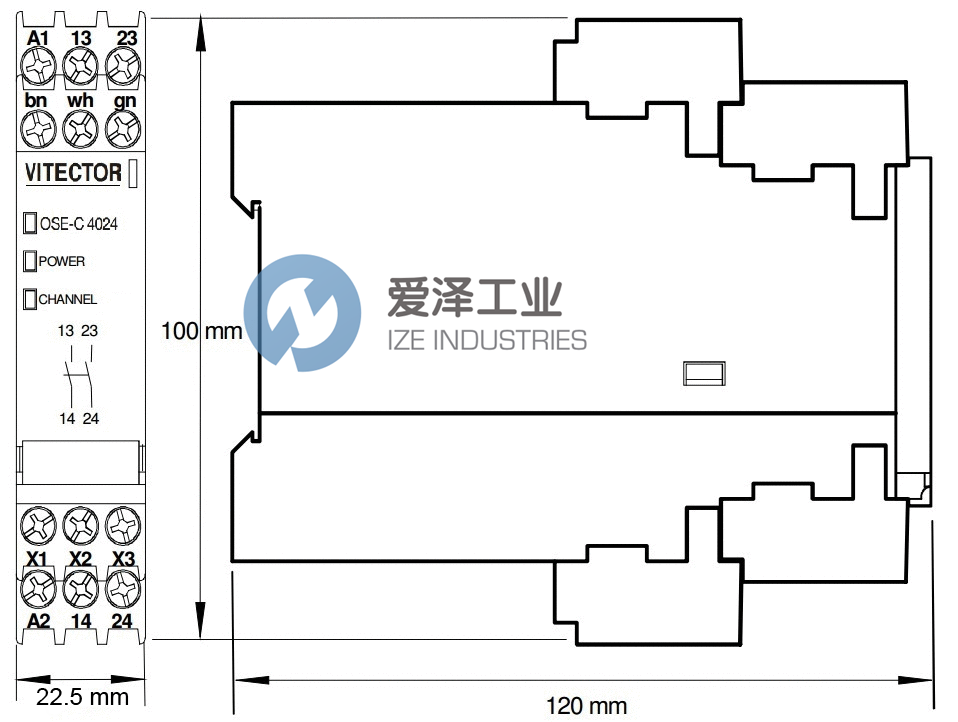

Housing Dimensions

22.5x100x120 mm (0.89x3.94x4.72")

Power Consumption

4 VA

Cyclic Duration Factor

1

Number of Optical Sensing Edge Inputs

1

Safety Properties

Safety Properties

Safety Cat. 4 PL e (EN 13849-1)

MTTFd

100 years

Diagnostic Coverage DC

0.99

Sensing Edge Output

Output Type

NCC Relay

Contact Material

Hard Silver, AgNi

Max. Switching Voltage

250 V AC/DC

Max. Switching Current

4 A

Max. Switching Capacity

1000 VA

Fusing

4 A slow acting

Signalling Output

Output Type

Semiconductor Output (PNP open collector)

Current / Voltage

U max. = 36 V, I max. = 50 mA

Unit of Measure

Piece

Product Life Cycle

Established
