EATON分流器2CFD200系列技术参数
Specifications | |
Figures based on an oil temp at 40˚C and of 32 cSt (150 SUS) | |
Rated Flow | Up to 220 liters/min (58 USgpm) |
Ratio division | 50/50 standard |
Maximum pressure | 280 bar (4000 psi) |
Cartridge material | Working parts hardened & ground steel. |
Body material | Aluminum (up to 210 bar) |
Mounting position | Unrestricted |
Cavity Number | CVB-42-04-0 |
Torque cartridge into cavity | 150 Nm (110 ft lbs) |
Weight | 2CFD200: 0,78 kg (1.72 lbs) |
Seal kit number | SK597 (Nitrile), SK597V (Viton®) |
Recommended Filtration Level | BS5540/4 Class 18/13 |
Temperature range | –30° to +90° C (–22° to 194° F) |
Nominal range | 5 to 500 cSt |
EATON分流器2CFD200系列介绍
该系列分流器/合流阀可将输入流量分成两个相等的部分，并在相反方向上重新组合流量。 压力补偿可确保无论是分流还是合流，在较大的压力变化范围内都能保持相等的流量。 这些阀门的典型用途是分配泵流量以操作两个执行器（可能处于不同的负载条件和不同的压力下），并重新组合回流以同步执行器的运动。 压力和入口流量最大变化时，流量变化在±10%以内，正常情况下会明显更小。
This range of flow divider/ combiner valves gives division of input flow into two equal parts and re-combination of flow in the reverse direction. Pressure compensation ensures that whether dividing or combining, equal flow is maintained over a wide range of pressure variation. A typical use of these valves is to divide a pump flow to operate two actuators (which may be under different load conditions and at different pressures) and to re-combine the return flows to synchronize actuator movement. Flow variation is within ±10% with the maximum variation of pressure and inlet flow and under normal conditions will be significantly less.

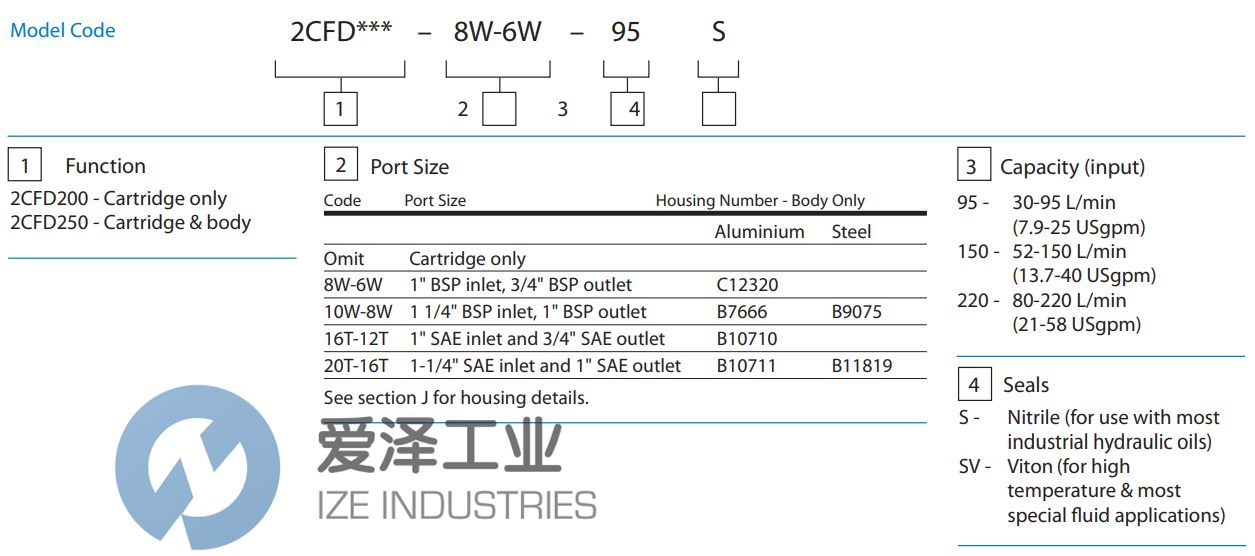

EATON分流器2CFD200系列选型
EATON分流器2CFD200系列其他常用型号：
EATON 2CFD250-8W-6W-220S
EATON 2CFD250-16T-12T
EATON 2CFD250-8W-6W
EATON 2CFD250-8W-6W-95S
EATON 2CFD250-8W-6W-150S
