CONTROL TECHNIQUES伺服驱动器M701-054-00300A技术参数
Basic series | M701 = EIA 485 |
Frame size | 5 |
Voltage rating | 4 = 400 V |
Current rating | 00300 = 30 A |
Drive format | A = 6P Rectifier + Inverter (internal choke) |
CONTROL TECHNIQUES伺服驱动器M700系列介绍
适用于扭矩控制应用
精确扭矩控制，更新率高达 250 μs
感应、永磁和混合永磁电机的无传感器控制
效率高达 98%，电力转换过程中能量损失小
简单的公共直流母线配置、动态制动和再生模式
全系列独立式、模块化和预装驱动器，功率高达 2.8MW（4,200hp）
板载 PLC 用于执行逻辑和排序程序
对于速度控制应用
完全可配置的 S 斜坡
支持高达 16 kHz 的高带宽速度环路和开关频率
内置通用反馈接口，支持从旋转变压器到增量式和绝对式编码器的所有内容
静止自动调谐
可调节多速风扇和智能热管理，噪音低
集成安全扭矩关闭 (STO) 输入，已通过 SIL3 / PLe 认证
对于位置控制应用
支持控制总线技术，包括传统现场总线和串行通信
通过 PLC 控制运动轻松集成到 PLC 架构中
内置 1.5 轴高级运动控制器，具有凸轮轮廓、归位和电子变速箱
可扩展的集成运动控制减少了对中央 PLC 的需求，或者可以完全取代中央 PLC
全面的运动安全功能，包括通过安全网络
For Torque Control applications
Precision torque control with up to 250 μs update rate
Sensorless control of induction, permanent-magnet and hybrid PM motors
98% efficient, minimal energy lost during the power conversion process
Easy common DC bus configuration, dynamic braking, and regenerative mode
Full spectrum of stand-alone, modular and pre-assembled drives up to 2.8MW (4,200hp)
On-board PLC to execute programs for logic and sequencing
For Speed Control applications
Fully configurable S-ramps
High bandwidth speed loop and switching frequencies supported up to 16 kHz
Built-in, universal feedback interface supporting everything from resolvers to incremental and absolute encoders
Stationary autotune
Low acoustic noise due to adjustable multi-speed fan and intelligent thermal management
Integrated Safe Torque Off (STO) input(s), certified to SIL3 / PLe
For Position Control applications
Support for virtually all control bus technologies, including traditional fieldbuses and serial communications
Effortless integration into PLC architectures with PLC Controlled Motion
Built-in, 1.5 axis advanced motion controller with cam profiles, homing, and electronic gearbox
Scalable integrated motion control reduces demand on, or can entirely replace, a central PLC
Comprehensive motion safety functions, including over safe networks

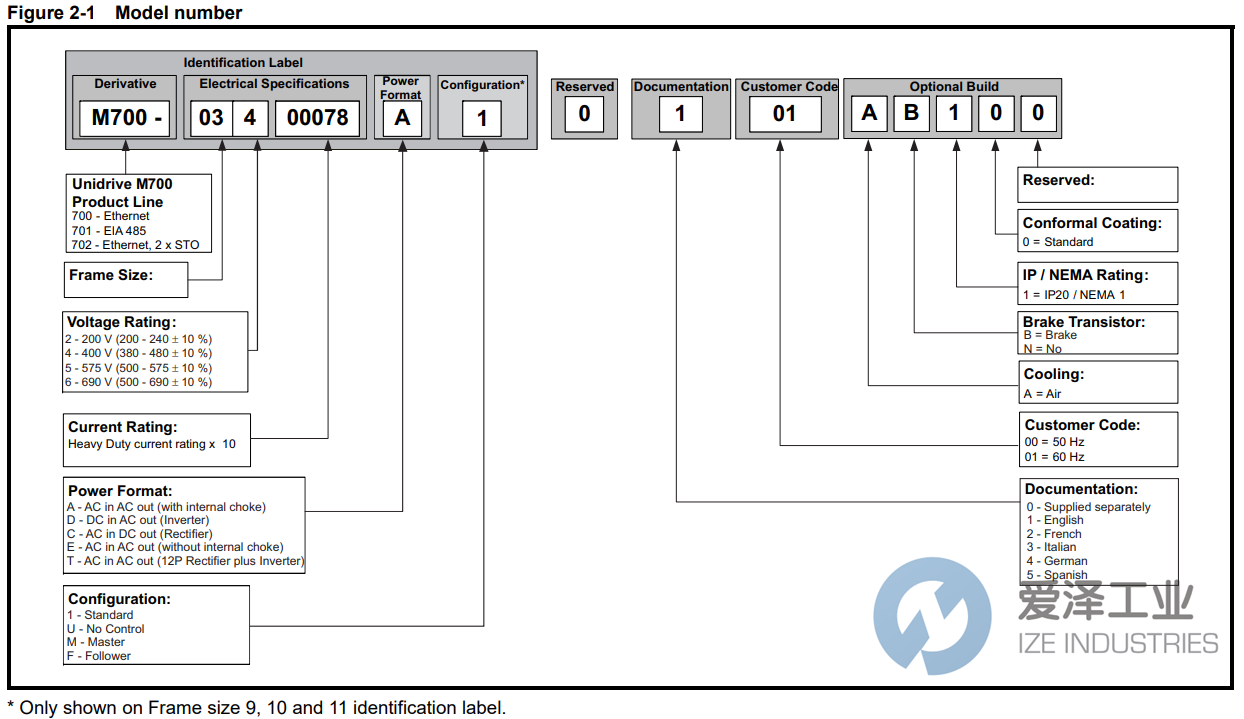

CONTROL TECHNIQUES伺服驱动器M700系列选型
CONTROL TECHNIQUES伺服驱动器M700系列其他常用型号：
CONTROL TECHNIQUES M701-034-00062A
CONTROL TECHNIQUES M701-034-00078A
CONTROL TECHNIQUES M701-034-00100A
CONTROL TECHNIQUES M701-044-00150A
CONTROL TECHNIQUES M701-044-00172A
CONTROL TECHNIQUES M701-054-00270A
CONTROL TECHNIQUES M701-054-00300A
CONTROL TECHNIQUES M701-064-00350A
CONTROL TECHNIQUES M701-064-00420A
CONTROL TECHNIQUES M701-064-00470A
CONTROL TECHNIQUES M701-074-00660A
CONTROL TECHNIQUES M701-074-00770A
CONTROL TECHNIQUES M701-074-01000A
CONTROL TECHNIQUES M701-084-01340A
CONTROL TECHNIQUES Servo Drives NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于CONTROL TECHNIQUES伺服驱动器M701-054-00300A的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for CONTROL TECHNIQUES products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
CONTROL TECHNIQUES伺服驱动器M700系列M701-054-00300A技术参数及选型
