AERZEN风机GLb 15.11 HV技术参数

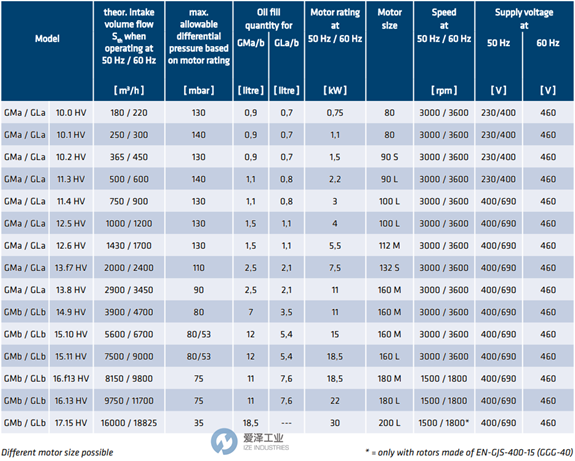

Model | GLb 15.11 HV |
theor. intake volume flow Sth when operating at 50 Hz / 60 Hz [ m3/h ] | 7500 / 9000 |
max. allowable differential pressure based on motor rating [ mbar ] | 80/53 |
Oil fill quantity for GLa/b [ litre ] | 5,4 |
Motor rating at 50 Hz / 60 Hz [ kW ] | 18,5 |
Motor size | 160 L |
Speed at 50 Hz / 60 Hz [ rpm ] | 3000 / 3600 |
Supply voltage at 50 Hz / 60 Hz [ V ] | 400/690 / 460 |
AERZEN风机HV系列介绍
设计和构造 AERZEN 真空鼓风机在外壳法兰处配有氟橡胶 (FKM) O 形圈密封件。 鼓风机级的其他重要优点是真空密封性和空气冷却。 润滑油采用飞溅润滑方式供给。 润滑剂可以是矿物油，也可以是PFPE油，主要用于输送氧气。 HV系列在输送室和轴承室之间装有特殊的抛油环-活塞环-迷宫式密封。 此外，还安装了一个带有冷凝水通道的大尺寸中性室。 此外，中性室可以用密封气体吹扫，以达到增强的密封效果。 驱动轴的密封由带油室的双径向密封环 (FKM) 保证。 鼓风机通过与电机直接耦合驱动。 驱动单元由带孔板盖的铸造连接件、挠性联轴器和带法兰的 B5 电机组成，根据 IEC 标准配备，另外还配有 3 个 PTC 电阻器。 作为标准配置，IE 3 电机用于实现最高能效。
• 最大的真空鼓风机系列，具有 19 种尺寸和 180 m3/h 至 97,000 m3/h 的体积流量
• 符合 94/9/EG 的 ATEX 认证，甚至适用于 0 区（内部）
• IE 3 电机节能
• 由于体积流量的精细结构步骤，可以轻松为您选择合适的鼓风机
• 由于高机械负载能力（级高达 200 mbar - 在驱动的情况下，取决于所选电机额定值高达 140 mbar）抽空时间大大减少
• 通过各种可能的修改来适应特殊应用
• 垂直和水平安装位置
• 可变流向（甚至双侧高达 2,800 m3/h）
Design and construction AERZEN vacuum blowers are provided with fluoro rubber (FKM) O-ring seals at the casing flanges. Further important advantages of the blower stage are vacuum tightness and air cooling. Lubrication oil is supplied by splash lubrication. The lubricant can be mineral oil, as well as PFPE oil, which is mostly used for conveying oxygen. The HV series is equipped with a special oil slinger-piston ring-labyrinth seal between the conveying chamber and the bearing chambers. Additionally, an amply dimensioned neutral chamber with condensate channels is installed. In addition, the neutral chamber can be purged with seal gas, in order to achieve an increased sealing effect. The sealing of the drive shaft is guaranteed by double radial seal rings (FKM) with an oil chamber. The blower is driven by direct coupling with motor. The driving unit consists of a cast connecting piece with perforated plate cover, flexible coupling and flanged B5-motor, equipped as per IEC standard and additionally with 3 PTC resistors. As standard, IE 3 motors are used for maximum energy efficiency.
• Largest vacuum blower series with 19 sizes and volume flows of 180 m3/h up to 97,000 m3/h
• ATEX certification as per 94/9/EG even for zone 0 (internal)
• Energy-saving thanks to IE 3 motors
• Easily select the right blower for you thanks to fine-structured steps of volume flows
• Due to high mechanical loading capacity (stage up to 200 mbar - in case of drive, depending on selected motor rating up to 140 mbar) considerable reduction of pumping-down times
• Variable adaptation to special applications through a wide variety of possible modifications
• Vertical and horizontal installation position
• Variable direction of flow (up to 2,800 m3/h even both-sided)
