SYSTEM PLAST轴承UCFH207-35M-SS技术参数
Duty: | Standard | |
Rolling Elements: | Ball | |
Bearing Material: | 400 Series Stainless Steel | |
Housing: | Black Polyamide | |
Self-Alignment: | ± 1° | |
Lock: | Setscrew | |
Bearing Seal: | Single Lip Contact | |
Back Seal: | Spring Seal | |
End Cap: | Yellow Protective Cap | |
Temperature: | 30° to 180°F (0° to 82°C) | |

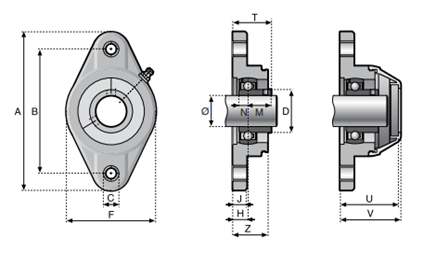

Bore Diameter | 35 mm | |
A | 163.1 mm | |
B | 130.0 mm | |
C | 14.0 mm | |
D | 46.7 mm | |
F | 89.9 mm | |
H | 18.0 mm | |
J | 15.7 mm | |
M | 25.4 mm | |
N | 9.7 mm | |
T | 43.4 mm | |
U | 63.8 mm | |
V | 65.8 mm | |
Z | 33.0 mm | |
Weight (lbs/kgs) | 0.62 |
SYSTEM PLAST轴承产品介绍
适用于食品和饮料加工中常见的恶劣冲洗环境的模块化轴承组件,包括密封和润滑的英制和公制轴承,包含各种外壳样式、安装样式和外壳材料,带有可选的端盖和后密封件。 当支撑具有径向载荷的旋转轴时,安装的滚珠轴承支架提供了一种减摩解决方案。
外壳形式
法兰、枕块和卷取组件
轴承插入材料
400 系列不锈钢、铬钢 AISI 52100
锁定样式
紧定螺钉
孔径尺寸范围
¾” 至 1 ½” 和 20 mm 至 40 mm
外壳材料
聚酰胺,Nolu-清洁
Modular bearing assembly for harsh wash down environments often found in food and beverage processing consisting of sealed and lubricated inch and metric bearing contained with a variety of housing styles, mounted styles and housing materials with optional end caps and back seals. Mounted ball bearing supports provide an anti-friction solution when supporting rotating shafts with radial loads.
Housing Styles
Flanges, Pillow Block and Take Up Assemblies
Bearing Insert Materials
400 Series Stainless Steel, Chrome Steel AISI 52100
Locking Styles
Setscrew
Bore Diameter Size Range
¾” to 1 ½” And 20 mm to 40 mm
Housing Materials
Polyamide, Nolu®-Clean
SYSTEM PLAST轴承系列选型
SYSTEM PLAST轴承UCFH系列其他常用型号:
SYSTEM PLAST UCFH206-20-SS-OEC
SYSTEM PLAST UCFH206-30M-SS
SYSTEM PLAST UCFH206-30M-SS-CEC
SYSTEM PLAST UCFH206-30M-SS-OEC
SYSTEM PLAST UCFH207-20-SS
SYSTEM PLAST UCFH207-23-SS
SYSTEM PLAST UCFH207-23-SS-CEC
SYSTEM PLAST UCFH207-23-SS-OEC
SYSTEM PLAST UCFH207-35M-SS
SYSTEM PLAST UCFH207-35M-SS-CEC
SYSTEM PLAST UCFH207-35M-SS-OEC
SYSTEM PLAST UCFH208-24-SS
SYSTEM PLAST UCFH208-24-SS-CEC
SYSTEM PLAST UCFH208-24-SS-OEC
SYSTEM PLAST UCFH208-40M-SS
