PORTESCAP电机35NT2R82-426SP.1技术规格
Part Number | 35NT2R82-426SP.1 |
Motor Diameter (mm) | 35 |
Shaft Play - Axial (mm) | negligible |
Shaft Play - Radial (mm) | negligible |
Back EMF constant (V/1000 rpm) | 5.45 |
Continuous Current, Max (A) | 2.2 |
Continuous Torque, Max (mNm) | 109 |
Mechanical Time Constant (ms) | 5.9 |
Motor Regulation (10³/Nms) | 0.83 |
No-Load Current, Typical (mA) | 80 |
No-Load Speed (rpm) | 5850 |
Nominal Voltage M | 32 |
Rotor Inertia (gcm²) | 71.4 |
Torque Constant (mNm/A) | 52 |
Weight (g) | 310 |
Ambient Oerating Tmperature. Max: Rotorr(℃) | 100 |
Ambiet Oeraing Temperature Range: Motor(℃) | -30 to 85 |
Continuous Speed, Max (rpm) | 9000 |
Efficiency (%) | 86 |
Friction Torque (mNm) | 4.16 |
Output Power (W) | 103 |
Rotor Inductance (mH) | 0.4 |
Shaft Load, Max - Axial (5 mm. from bearing) (N) | 35 |
Shaft Load, Max - Radial (5 mm. from bearing) (N) | 100 |
Stall Torque at Nominal Voltage (mNm) | 756 |
Terminal Resistance (Ohm) | 2.2 |
Thermal Resistance (rotor/body) (°C/W) | 4/8 |
Thermal Time Constant (rotor/stator) (s) | 40/920 |
PORTESCAP电机35NT2R82系列介绍
35NT2R82电刷直流电动机提供高功率密度，并结合了石墨/铜换向，可实现高加速，并延长电刷寿命。 它可以连续执行高达150 mNm的工作，效率高达85％。
The 35NT2R82 brush DC motor offers high power density combined with graphite/copper commutation to achieve high acceleration with long brush lifetime. It can perform up to 150 mNm continuously and reach up to 85% efficiency.

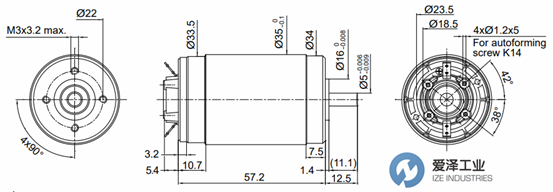

PORTESCAP电机35NT2R82系列技术尺寸图
PORTESCAP电机35NT2R82系列其他常用型号：
PORTESCAP 35NT2R82-426SP.50
PORTESCAP 35NT2R82-226E.1
PORTESCAP 35NT2R82-426E.1
PORTESCAP 35NT2R82-426P.1
PORTESCAP 35NT2R82-426SP.1
