SEM电机ARS115E6-130S技术参数
Motor type | ARS115E6-130S |
Cont. stall torque (Nm) | 10,8 |
Cont. stall current (rms) (A) | 6,4 |
Peak torque (Nm) | 33 |
Peak current (Arms) | 21,57 |
Resistance (Ohms) | 2,1 |
Inductance (mH) | 18 |
Speed (230Vac) | 2500 |
Speed (380Vac) | 4100 |
Max Speed | 5400 |
Rotor inertia (kg.cm2) | 7,5 |
Torque constant (3xKtrms) (Nm/A) | 1,53 |
Nominal values (W) | 2500 |
Nett Weight (Kg) | 10,5 |
SEM电机AR系列介绍
AR 系列伺服电机将钕铁硼磁铁与低惯性转子相结合，提供具有成本效益的性能。此外，ARS 缩短版的框架尺寸为 92 至 142
The AR series of servomotors combine Neodymium Iron Boron magnets with low inertia rotors, giving cost effective performance. Also ARS shortened version in 92 to 142 frame

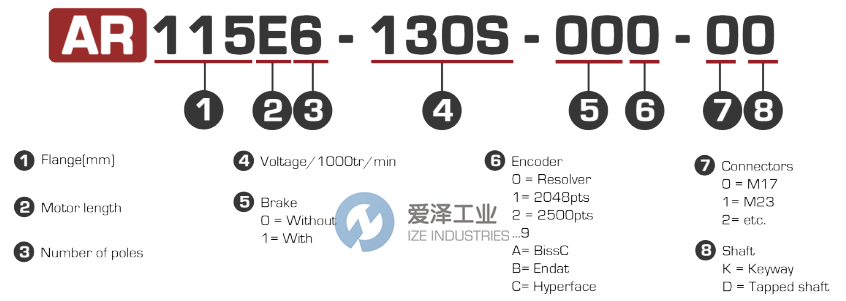

SEM电机AR系列选型
SEM电机AR系列其他常用型号：
SEM ARS11586-64S
SEM ARS115B6-88S
SEM ARS115B6-130S
SEM ARS115C6-64S
SEM ARS115C6-88S
SEM ARS11506-130S
SEM ARS115E6-88S
SEM ARS115E6-130S
SEM ARS11566-180S
SEM ARS14206-64S
SEM ARS142C6-88S
SEM ARS14206-130S
SEM ARS14266-88S
SEM ARS142E6-130S
SEM ARS142E6-180S
SEM ARS14266-130S
SEM ARS14266-180S
SEM ARS14266-260S
SEM MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SEM电机ARS115E6-130S的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for SEM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SEM电机AR系列ARS115E6-130S技术参数及选型
