CINCINNATI风机HP-6C22技术参数
Description |
Cincinnati Fan HP-6C22, Arrangement 4, Std Wheel, CCW Rotation, TH Discharge, 6 inch inlet |
MTR,5 HP,2850/3450 RPM,3PH,50/60Hz,380/415V/50 HZ. & 460V/60 HZ., TEFC, Div 2, Class |, Groups A,B,C,D,IEC IE3 Eff,FM,D112M,IP55,1.15 SF ,F Insul., 40C Amb.,Tropicalized for Storage,F2 Box,Conduit box terminal block, Special Nameplate ,Alum. Frame,CE,CSA,VFD Capable 30:1 VT |
Metric Motor Adder |
AMCA Type C Spark Resistant Construction |
Shaft Seal |
Inlet Flange-Drill Straddle Centerlines |
Discharge Flange-Drill Straddle Centers |
CINCINNATI鼓风机HP系列介绍
• 每个径向鼓风机型号都有四到六个轮尺寸,可通过直接驱动装置选择更多气流。
• 连续焊接外壳和聚四氟乙烯轴密封,以防止漏气。
• 每个ASA钻孔的入口和出口法兰,150磅和ANSI,125磅标准管道尺寸是标准配置。
• 鼓风机外壳是可逆的,可以45°的增量旋转。
• 可拆卸的进口和驱动侧板允许在不断开进口或排放连接的情况下拆卸皮带或电机,或皮带驱动型号上的轴和轴承。
• 所有风扇都会接受机械运行测试,以确保在发货前保持适当的平衡和对齐。
• 配置8个单元标配轴/联轴器保护装置。
• 9和9CB装置标配带护罩。
• 也可提供铝或不锈钢结构。
• Each radial blower model is available with four to six wheel sizes for more airflow selections with a direct drive arrangement.
• Continuous welded housings and teflon shaft seal to prevent air leakage.
• Inlet and discharge flanges drilled per ASA, 150 pound and ANSI, 125 pound standard pipe sizes, are standard.
• Blower housings are reversible and rotatable in 45° increments.
• Removable inlet & drive side plates allow wheel or motor, or shaft & bearings on belt driven models, to be removed without disconnecting inlet or discharge connections.
• All fans receive a mechanical run test to assure proper balance and alignment before shipping.
• Arrangement 8 units come standard with shaft/coupling guards.
• Arrangement 9 and 9CB units come standard with belt guards.
• Also available in aluminum or stainless steel construction.

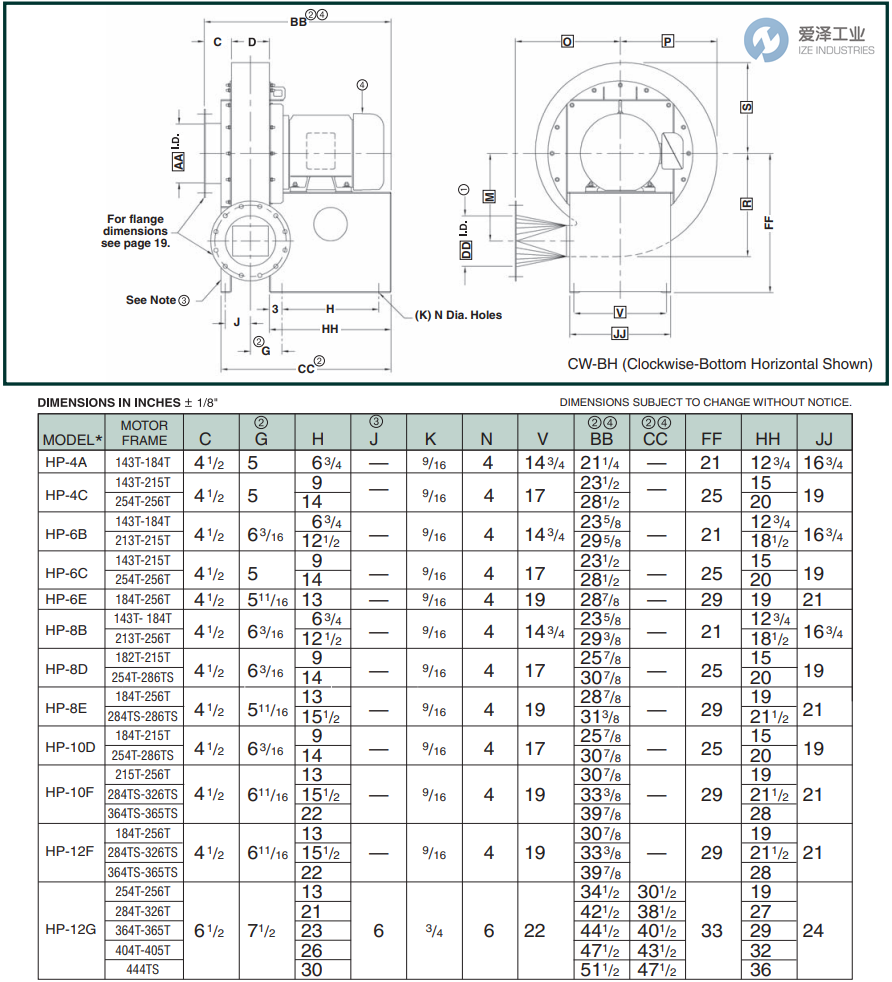

CINCINNATI风机HP系列尺寸及选型
CINCINNATI鼓风机HP系列其他常用型号:
CINCINNATI HP-4C17
CINCINNATI HP-4C18
CINCINNATI HP-4C19
CINCINNATI HP-4C20
CINCINNATI HP-4C21
CINCINNATI HP-4C22
CINCINNATI HP-6B14
CINCINNATI HP-6B15
CINCINNATI HP-6B16
CINCINNATI HP-6B17
CINCINNATI HP-6B18
CINCINNATI HP-6C19
CINCINNATI HP-6C20
CINCINNATI HP-6C21
CINCINNATI HP-6C22
CINCINNATI HP-6E21
CINCINNATI HP-6E22
CINCINNATI HP-6E23
CINCINNATI HP-6E24
