ROSENBERG风机DKHR560-6SW.174.6FA技术参数

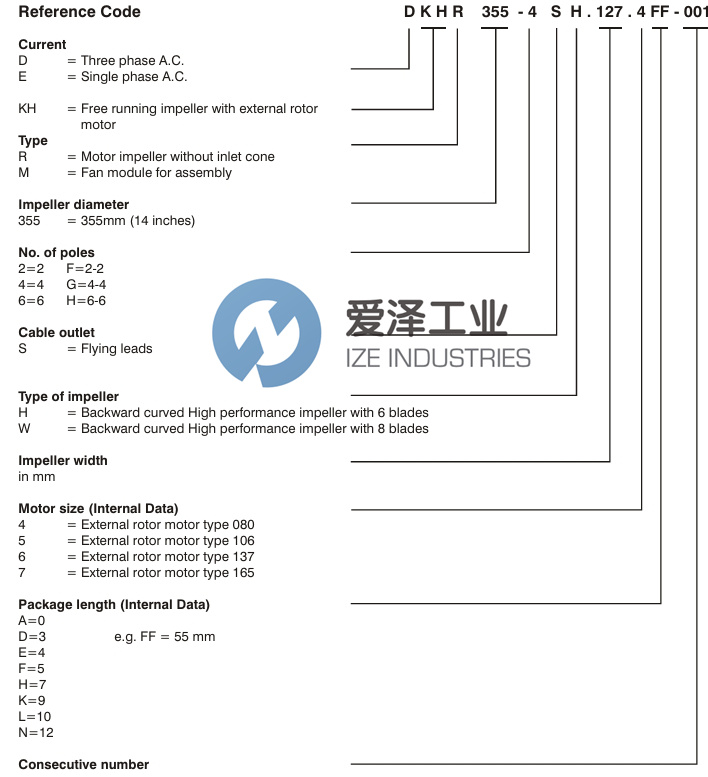

Current | D = Three phase A.C. |
Design | KH = Free running impeller with external rotor motor |
Type | R = Motor impeller without inlet cone |
Impeller diameter | 560 = 560 mm |
No. of poles | 6 |
Cable outlet | S = Flying leads |
Type of impeller | W = Backward curved High performance impeller with 8 blades |
Impeller width | 174= 174 mm |
Motor size (Internal Data) | 6 = xternal rotor motor type 137 |
Package length (Internal Data) | FA = 50 mm |
ROSENBERG风机DKHR系列介绍
径向风机采用E/DKHR型自由运转叶轮，结合外转子电机和后倾式叶轮，构成结构紧凑、性能优异的风机单元。
在研发后倾式叶轮的过程中，ROSENBERG高度重视风机的高效性能，同时力求实现最佳的噪音水平。
此类风机适用于空气处理机组、卫生机组、洁净室过滤机组和空调机组等设备。
这些风机适用于洁净空气应用以及非腐蚀性蒸汽和烟雾的通风。
Rosenberg Radial Fans with free-running impeller type E/DKHR form a compact and constructively optimal fan unit by combining an external rotor motor and a backward-curved impeller.
During development of the backward curved impeller, Rosenberg attached great importance to high efficiency and at the same time a most optimal sound level.
Fans of this construction are designed for installation in appliances such as air handling units, hygienic units, clean room filter units and air conditioning units.
The fans are for clean air application and ventilation of non-aggressive vapors and fumes
ROSENBERG风机DKHR系列选型
ROSENBERG风机DKHR系列其他常用型号：
ROSENBERG DKHR560-6SW.174.6FA
ROSENBERG DKHR315-2SW.098.6FA
ROSENBERG DKHR250-2SW.060.4FF
ROSENBERG DKHR280-2SW.087.5FA
ROSENBERG DKHR280-2SW.060.5FA
ROSENBERG DKHR225-2SW.070.4EC
ROSENBERG DKHR630-6SH.224.6LA
ROSENBERG DKHR710-6SH.250.7NA
ROSENBERG DKHR450-4SW.138.6FA
ROSENBERG DKHR500-4SW.155.6LA
ROSENBERG fan NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于ROSENBERG风机DKHR560-6SW.174.6FA的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for ROSENBERG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
ROSENBERG风机DKHR系列DKHR560-6SW.174.6FA技术参数及介绍
