KILIANBRG轴承CB 14-1技术参数
![]() | ||

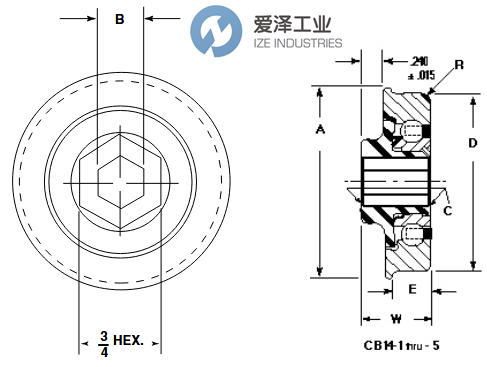

Bearing Number | CB 14-1 | |
Hex Bore B | .466/.456 in. | |
Outside Diameter D | 1.469/1.464 in. | |
Flange A ±.015 | 1.537 in. | |
Width | W ±.015: .712 in. | |
C | .040/.020 in. | |
R | 3⁄16 in. | |
KILIANBRG轴承CB 14系列介绍
CB14轴承结构紧凑、经济高效,采用标准化的轴承座,使其成为各种尺寸的轻型输送应用的理想选择。
CB14轴承是一款可靠且经济的解决方案,专为输送系统和改造应用而设计。它采用尼龙滚珠保持架和轴适配器,消除了金属间的直接接触,从而降低了运行噪音,并支持高达2000转/分的高速运转。
CB14轴承采用精密加工的一体式外圈和标准的 7/16 英寸六角孔,易于更换。
Compact and cost-effective, CB14 bearings contain a standardized insert making them ideal for light-duty conveying applications of all sizes.
CB14 bearings are a dependable, low-cost solution designed for conveyor systems and retrofit applications. Featuring a nylon ball retainer and shaft adapter, they eliminate metal-to-metal contact for quieter operation and support high-speed performance up to 2,000 RPM.
The CB14 bearing features a precision-machined one-piece outer ring and a standard 7/16-inch hexagonal bore for easy replacement.
KILIANBRG轴承CB 14系列其他常用型号:
KILIANBRG CB 14-1
KILIANBRG CB 14-2
KILIANBRG CB 14-3
KILIANBRG CB 14-4
KILIANBRG CB 14-5
KILIANBRG CB 14A-6
KILIANBRG CB 14A-7
KILIANBRG CB 14A-10
KILIANBRG Conveyor Bearings NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业集产品开发、设计、制造、销售、服务于一体,代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于KILIANBRG轴承CB 14-1的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for KILIANBRG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
