RADICON减速机M01225.0BGCC1技术参数
Codes | M01225.0BGCC1 |
Series | Range M |
Size of Unit | 01 |
No of Reductions | 2 |
Revision Version | 2 For Sizes 01 to 08 |
Nominal Overall Ratio | 5 |
Unit Version | B - Base Mounted B5 (D) Flange Mounted |
Type of Unit | G - Unit to allow ftting of IEC motor (customer own motor) |
Output Shaft | C - Standard |
RADICON减速机M系列介绍
M 系列减速电机系列满足大多数高达 160KW 的驱动要求，最大输出扭矩为 20000 Nm。
它利用多年积累的设计专业知识以及使用优质材料和组件开发而成。
最终结果是一系列具有高承载能力、高效率、安静运行和可靠性的减速和齿轮电机。这些装置由一系列模块化套件制造和组装而成，便于分销商使用，从而最大限度地减少库存并使产品随时可用。
可作为法兰或底脚安装执行的双倍、三倍、四倍和五倍减速装置提供。提供机动化、电机就绪（接受客户自己的 IEC/NEMA 电机）或带键控输入轴的减速器。
所有齿轮箱都是铸铁的。
The Series M geared motor range meets most drive requirements up to 160KW with a maximum output torque of 20000 Nm.
It takes advantage of being developed from many years of accumulated design expertise, together with the use of high quality materials and components.
The end result is a series of speed reducing and geared motors offering high load carrying capacity, high efficiency, quiet running and reliability. These units are manufactured and assembled from a family of modular kits for distributor friendliness thereby minimizing inventory and making the product readily available.
Can be supplied as double, triple, quadruple and quintuple reduction units in flange or foot mount execution. Available as motorised, motor ready (to accept clients own IEC/ NEMA motor) or as a reducer with a keyed input shaft.
All gear cases are cast iron.

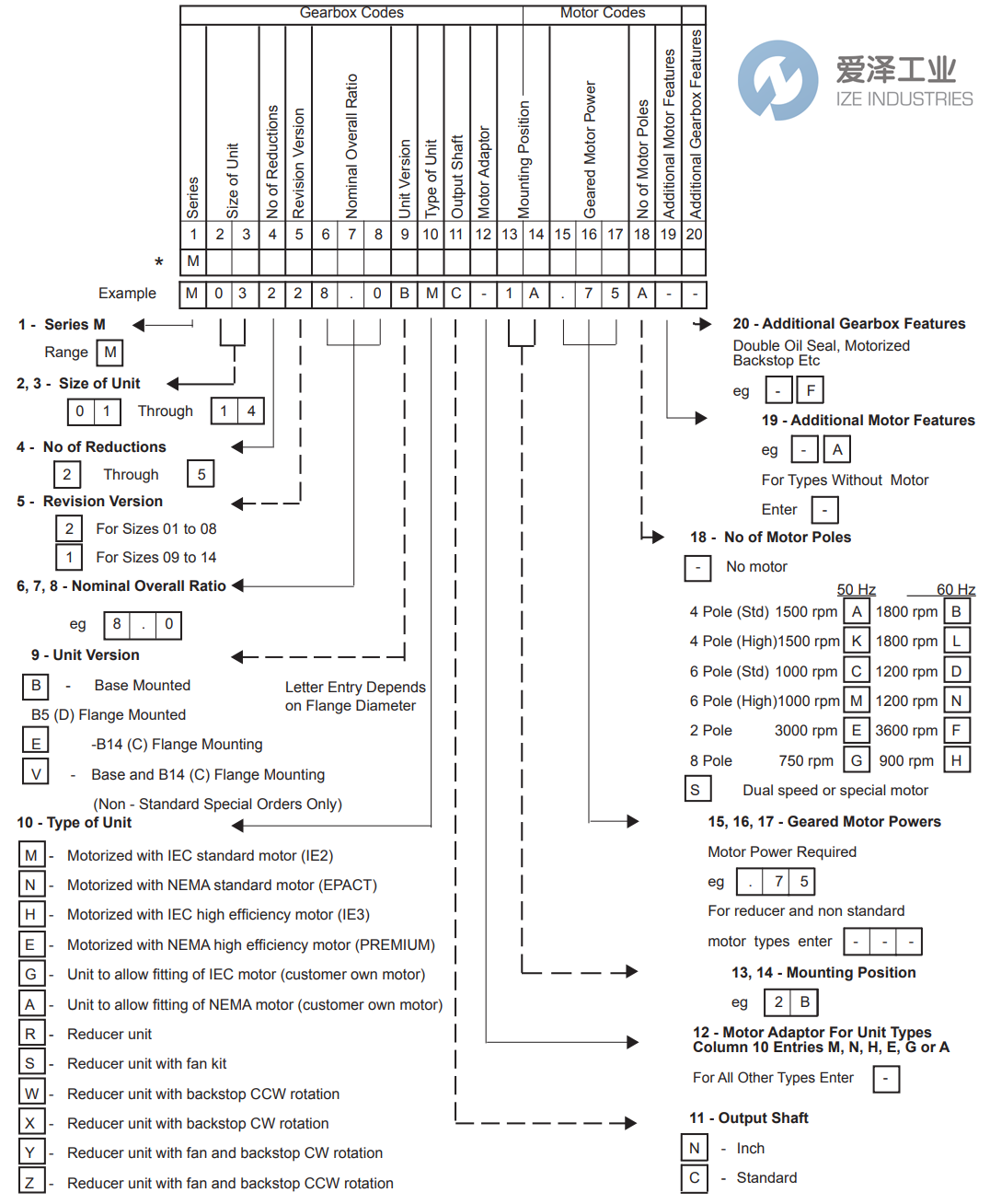

RADICON减速机M系列选型
RADICON减速机M系列其他常用型号：
RADICON M02225.0BGCC1D1.5A
RADICON M02225.0BGCC1
RADICON M01225.0BGCC1D15A
RADICON M01225.0BGCC1
RADICON M02225.OBMCC1D1.5A
RADICON Speed reducer NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于RADICON减速机M01225.0BGCC1的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for RADICON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
RADICON减速机M系列M01225.0BGCC1技术参数及选型
