ITALVIBRAS电机VR17500/6-S08-2U技术参数

ITALVIBRAS电机VR系列介绍

VR 旋转运动激振器具有球墨铸铁主体，其中两个轴承支撑轴，两端装有偏心重量，产生规定的离心力。

静力矩，即离心力，可通过钢或铅制成的附加配重块进行调节。

轴承通过油浴润滑，必须由最终用户插入。 典型应用是两个 VR 激振器通过万向轴连接在一起，每个 VR 安装在机器的两侧。

它们有 1U 和 2U 两种型号，分别有一个接头和两个接头。 具有两个接头 (2U) 的激振器轴的旋转是通过外部驱动器实现的，外部驱动器通过接头连接到轴，通常是万向节（推荐）。

外部驱动器可以是电动马达、液压马达或其他马达，通过皮带和滑轮直接连接到接头，并且可以根据激振器规格而具有变速。

VR rotational motion exciters have a spheroidal cast iron body, within which two bearings support a shaft with eccentric weights fitted at either end, generating the declared centrifugal force.

Static moment, thus centrifugal force, are adjustable by means of additional weight inserts in steel or lead.

Bearings are lubricated by oil bath, which must be inserted by the end user. The typical application is with two VR exciters coupled together by means of a cardan shaft, with each VR fitted at either side of the machine.

They are available in executions 1U and 2U, with one joint and two joints respectively. The rotation of the shaft of the exciter with two joints (2U) is obtained by means of an external drive, connecting to the shaft by means of a joint, generally a cardan (recommended).

The external drive can be an electric motor, or hydraulic or other, to be connected directly to the joint by means of belts and pulleys and can have variable speed in function of the exciter specifications.

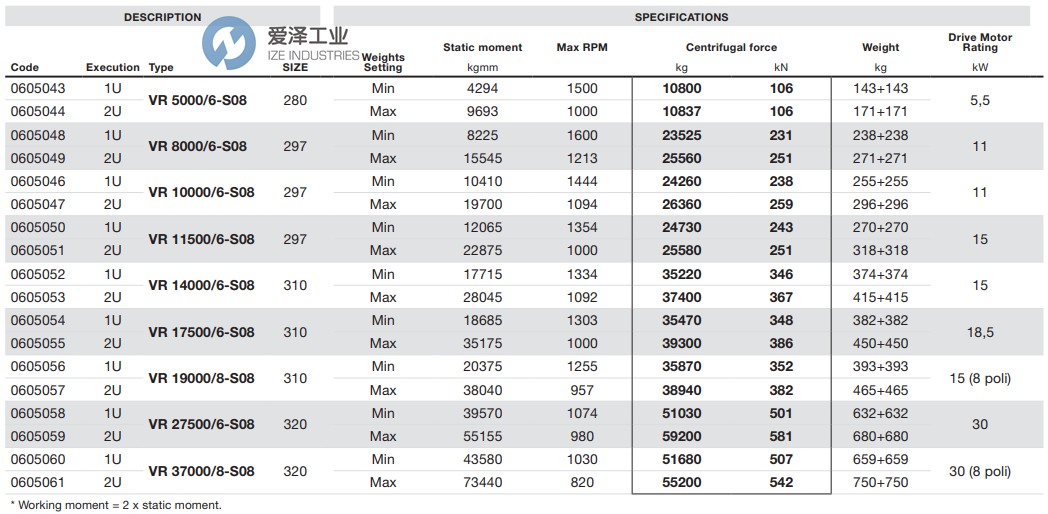

ITALVIBRAS电机VR系列选型

ITALVIBRAS电机VR系列其他常用型号：

ITALVIBRAS VR 5000/6-S08-1U

ITALVIBRAS VR 8000/6-S08-1U

ITALVIBRAS VR 10000/6-S08-1U

ITALVIBRAS VR 11500/6-S08-1U

ITALVIBRAS VR 14000/6-S08-1U

ITALVIBRAS VR 17500/6-S08-1U

ITALVIBRAS VR 19000/8-S08-1U

ITALVIBRAS VR 27500/6-S08-1U

ITALVIBRAS VR 5000/6-S08-2U

ITALVIBRAS VR 8000/6-S08-2U

ITALVIBRAS VR 10000/6-S08-2U

ITALVIBRAS VR 11500/6-S08-2U

ITALVIBRAS VR 14000/6-S08-2U

ITALVIBRAS VR 17500/6-S08-2U

ITALVIBRAS VR 19000/8-S08-2U

ITALVIBRAS VR 27500/6-S08-2U

ITALVIBRAS MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于ITALVIBRAS电机VR17500/6-S08-2U的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。

If you have any question for ITALVIBRAS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

ITALVIBRAS电机VR系列VR17500/6-S08-2U技术参数及选型

• ITALVIBRAS电机VR17500/6-S08-2U
